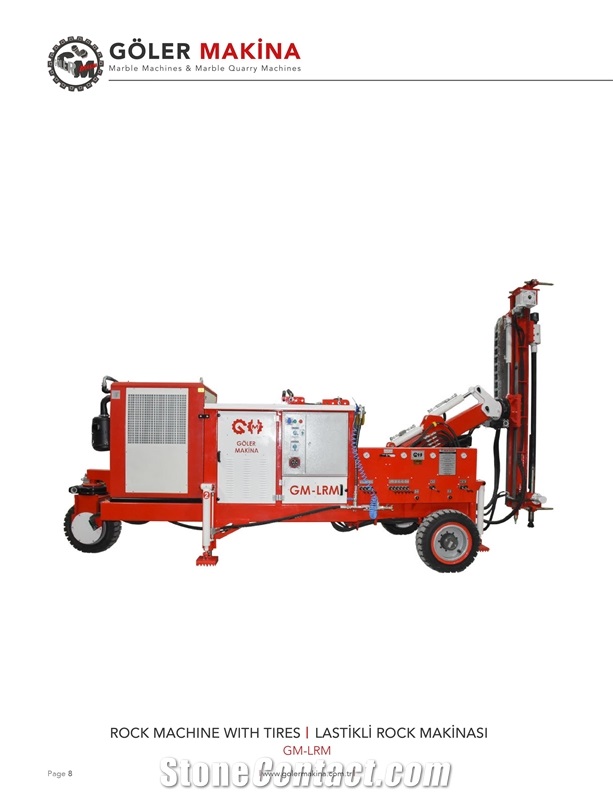

Wheeled Rock DTH Drill Machine

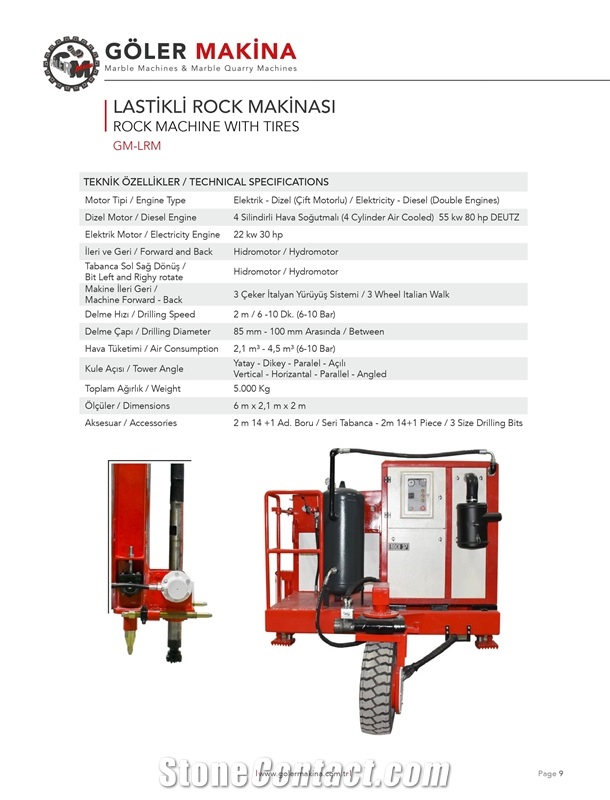

Drilling Using Dual Motors - Walking. Fast and Powerful Drilling. Night Work Lamps. Hydraulic Jaw System, Keyless Pipe Removal and Installation. Easy Installation Works 3-4 Times Faster Compared to DRILLING. One Person Usage Ability. Installation in the shortest possible time with the Tower Rotation System and Disassembly Jaws. Double Engine (Diesel - Electric). Electric MOTOR ↔ 22 kw 30 hp DIESEL ENGINE ↔ 55 kw 80 hp AIR COOLED 4 CYLINDER DEUTZ Gun ↔ Right-Left Rotation: Hydromotor - Transmission Reinforced Gun ↔ Forward and Reverse Movement: Hydromotor - Transmission Reinforced Machine Forward - Reverse Movement 3WD Italian Travel System Drilling Speed ​​↔ 2 m / 6-10 Minutes (at 6-10 Bar) Drilling Diameter ↔ Between 85 mm - 100 mm Air Consumption ↔ 2.1 m³-4.5 m³ (at 6-10 Bar) Working Angle ↔ Horizontal - Vertical - Parallel - Oblique Angles Usage:Balancing - Boom Sliding - Sliding - Sled Upright Pistons - Total Weight ↔ 4.900 Kg Height ↔ 6 Mt. Width ↔ 2.10 Mt Height ↔ 2 Mt. Supplied Accessory ↔ 2 mt 14+1 Pcs. Pipe / PERVOL GUN
