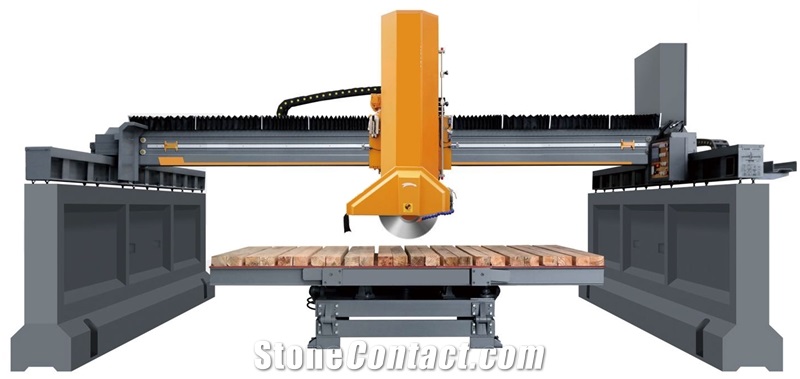

Bridge Cutting Machine(Slide Type)

FOB Price:$20000-25000

Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: 35 day
Warranty:12 Months
Install and Guarantee:Customer pay for installation
Maintenance:Remote troubleshooting, Field troubleshooting
Trade Terms
Port: XIAMEN- China
Delivery Details: FOB,CFR,CIF,EXW,Express Delivery
Payment : Payment Payment Payment

Supplier

XIAMEN SHUINAN MACHINE CO.,LTD.

XIAMEN SHUINAN MACHINE CO.,LTD.
SHUINAN MACHINE

ChinaChina level5YR idicon

Eatablished :Sep 10,2018

Main Product:

Stone Machine, Cnc Machine, Cutting Machine, Polishiing Machine, Cutting Disc, Polishing Pad|

Contact supplier

Start Order

You may also like
Middle Block Cutting Machine(Slide Type)
Middle Block Cutting Machine(Slide Type)
Visual Intelligence Bridge Cutting Machine For Cutting Slabs
Visual Intelligence Bridge Cutting Machine For Cutting Slabs
Bridge Type Automatic Granite Marble Infrared Edge Cutting Machine
Bridge Type Automatic Granite Marble Infrared Edge Cutting Machine
QCYI-450,600,700 bridge saw
QCYI-450,600,700 bridge saw
3-Axis (Rock Board) Bridge Cutting Machine
3-Axis (Rock Board) Bridge Cutting Machine
  • Overview
  • Components
  • Trade Terms
Machinery Function Features
Bridge Cutting Machine(Slide Type)
Technical Data
Parameters
Unit
SQC-450
SQC-600
SQC-700
Power of main motor
kw
15
18.5
18.5
Max.processing height
mm
100
180
220
Max.blade diameter
mm
Φ450
Φ600
Φ700
Worktable turn-over degree
°
0°-85°
0°-85°
0°-85°
Dimension(L x Wx H)
mm
6000x4800x3100
6000x4800x3300
6000x4800x3300
Weight
kg
5400
5600
5800
Water consumption
m³/h
3
3
3
Max.lifting stroke
mm
220
350
470
Worktable rotation range(optional)
°
0°-90°/0°-360(set up by each 45°)
0°-90°/0°-360(set up by each 45°)
0°-90°/0°-360(set up by each 45°)
Total power
kw
21
24
24
Worktable size
mm
3200x2000
3200x2000
3200x2000
