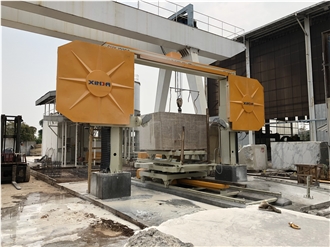

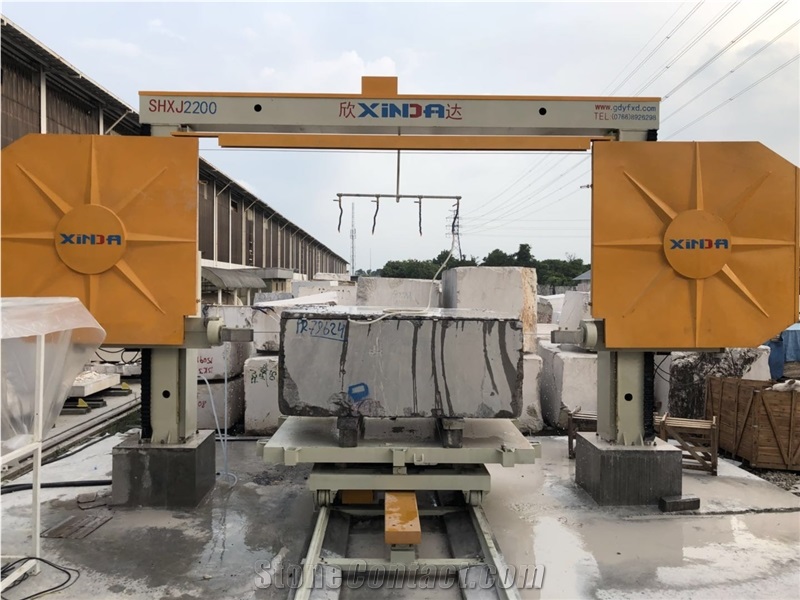

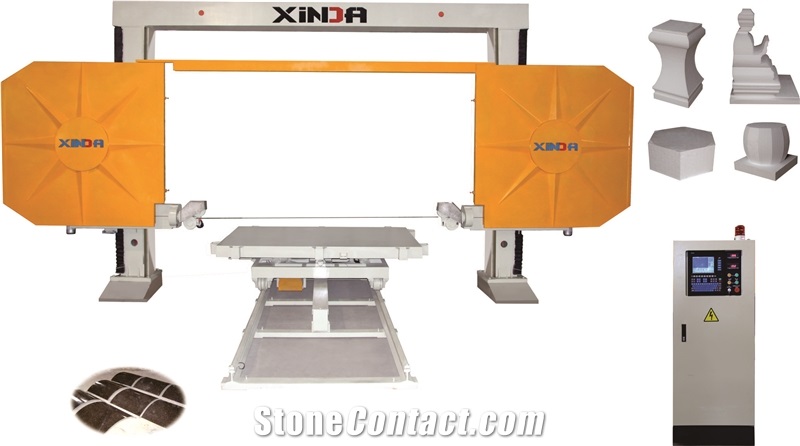

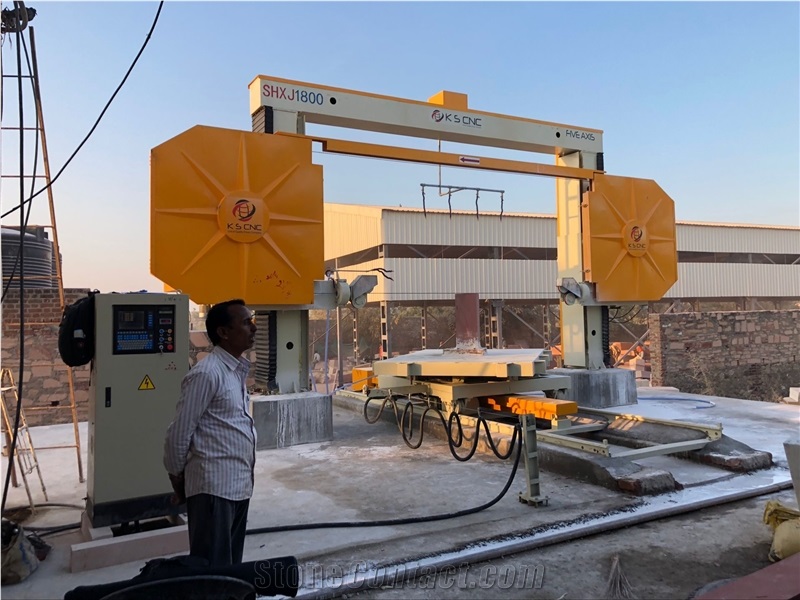

SHXJ1500(I)/1800(I)/2200(I) Five Axis CNC Mono Wire Saw Machine
FOB Price:$40000-55000
Supplier
Eatablished :Jan 10,2011
Main Product:
Wire Saw Machine, Bridge Saw, Sink Hole Machine, Polishing Machine, Quartz Machine, Stone Tools|

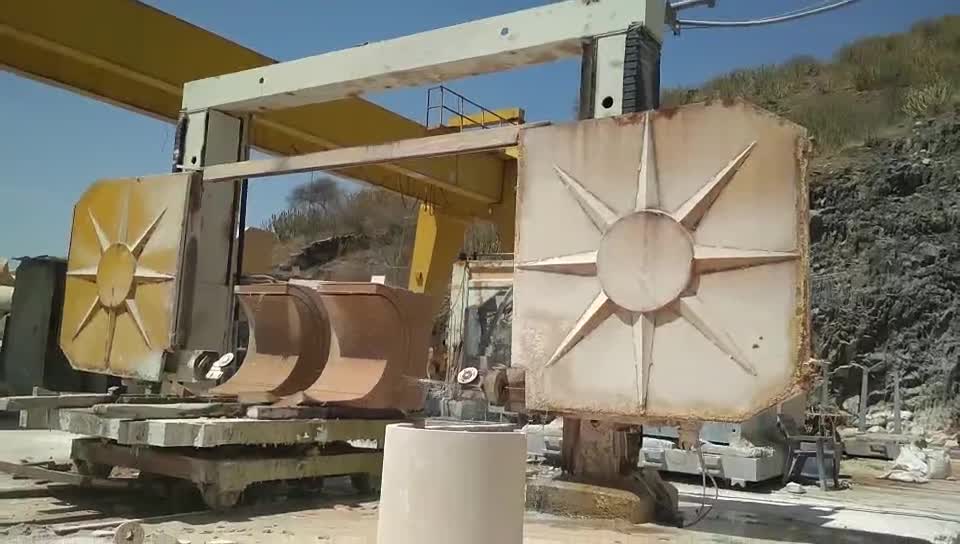

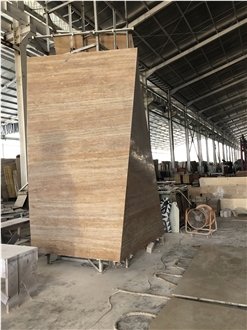

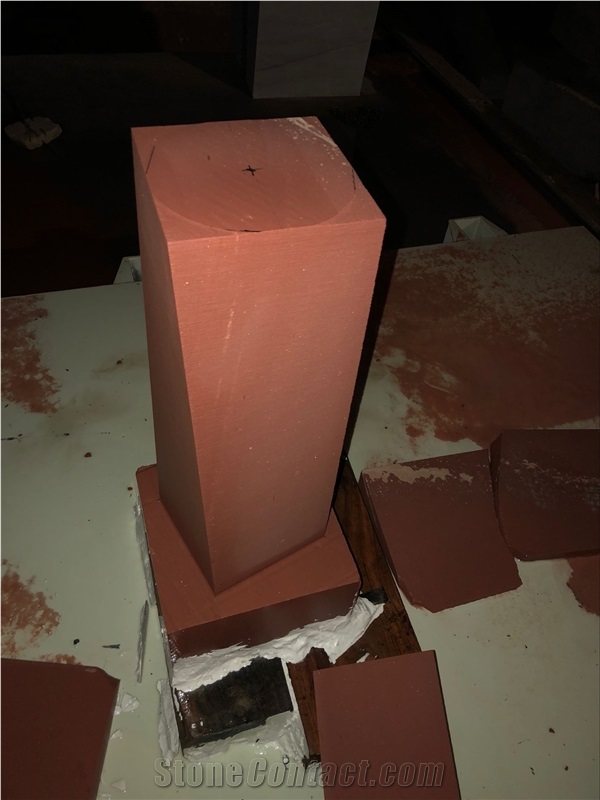

CNC Wire saw machine is an automatic profiling machine, designed for cutting complex shapes.such as solid columns, hollow columns, large stone lines and English letters, etc.
Parameters |
Unit |
SHXJ1500(I) |
SHXJ1800(I) |
SHXJ2200(I) |
Block length |
mm |
3300 |
3600 |
3600 |
Block max. height |
mm |
1500 |
1800 |
2100 |
Block max. widht |
mm |
3000 |
3000 |
3000 |
Compressed air requirements |
L/min |
30 |
30 |
30 |
Diamond wire length |
mm |
17300 |
19300 |
21250 |
Overall height |
mm |
4100 |
4900 |
5900 |
Total installed power |
kw |
21.68 |
25.68 |
25.68 |
Overall widht |
mm |
6750 |
6750 |
6750 |
Total water requirements |
L/min |
30 |
30 |
30 |
Wire actuating motor power |
kw |
11 |
15 |
15 |
Block max. weight |
Kg |
50000 |
50000 |
50000 |
Approximative Weight |
Kg |
9500 |
10500 |
12000 |
-

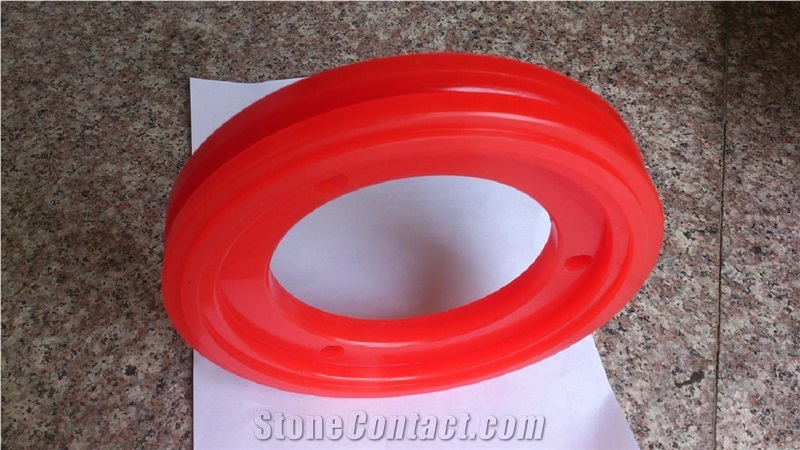

Rubber of guide wheel
-

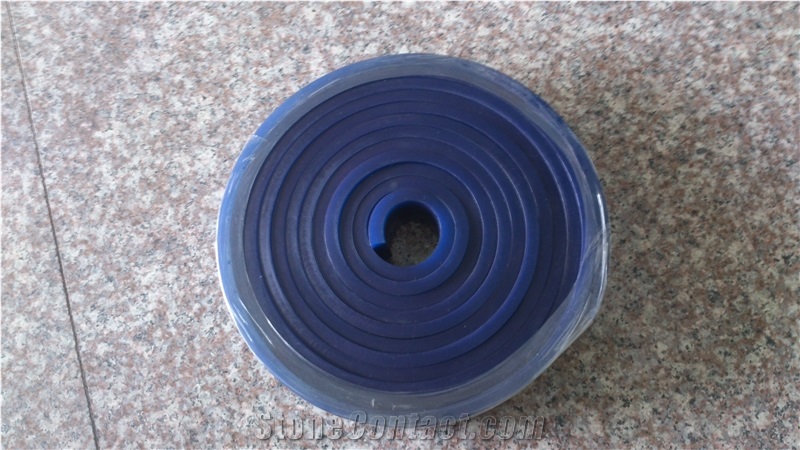

rubber of flywheel
-

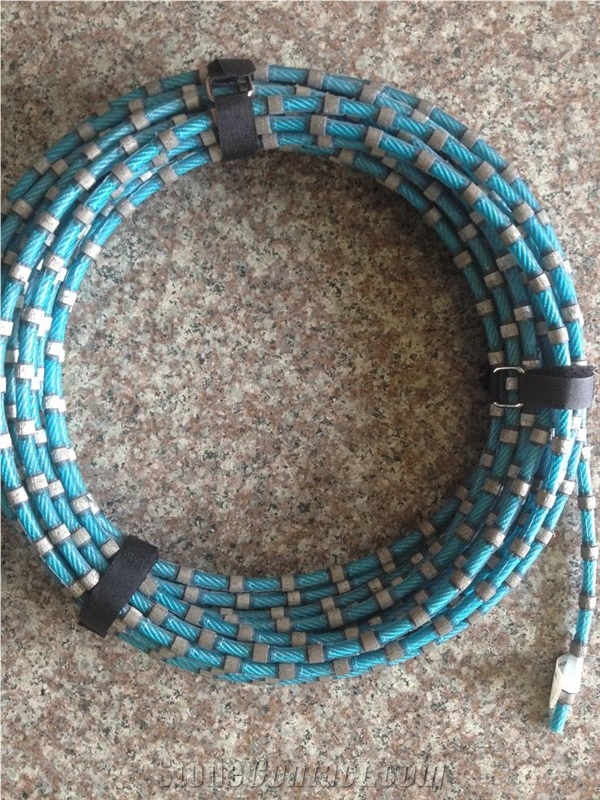

diamond wire
