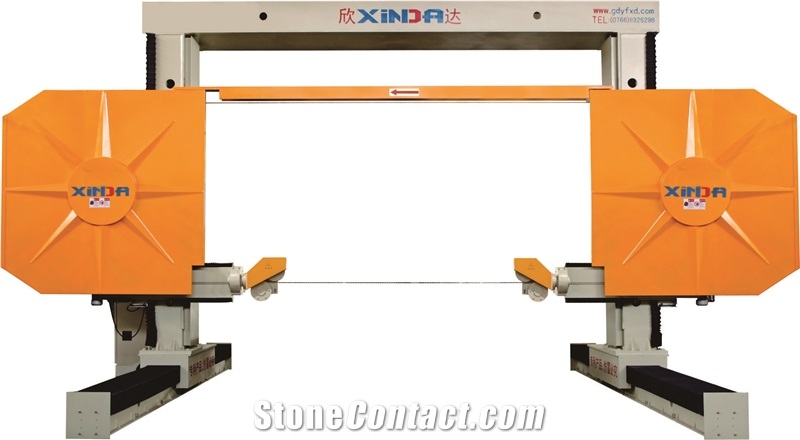

SHXJ-LY-1500/1800/2200 Gantry CNC Mono Wire Saw Machine
FOB Price:$4300-5800
Supplier
Eatablished :Jan 10,2011
Main Product:
Wire Saw Machine, Bridge Saw, Sink Hole Machine, Polishing Machine, Quartz Machine, Stone Tools|
CNC Wire saw machine is an automatic profiling machine, designed for cutting complex shapes.such as solid columns, hollow columns, large stone lines and English letters, etc.
Parameters |
Unit |
SHXJ-LY-1500 |
SHXJ-LY-1800 |
SHXJ-LY-2200 |
Total water requirements |
L/min |
30 |
30 |
30 |
Total installed power |
kw |
19.28 |
23.28 |
23.28 |
Block max. height |
mm |
1500 |
1800 |
2100 |
Diamond wire length |
mm |
17300 |
19300 |
21250 |
Wire peripheral speed |
m/s |
0-40 |
0-40 |
0-40 |
Approximative Weight |
Kg |
11300 |
13100 |
14000 |
Overall height |
mm |
3950 |
4750 |
5650 |
Wire actuating motor power |
kw |
11 |
15 |
15 |
Overall widht |
mm |
8200 |
9200 |
9800 |
Block length |
mm |
3800 |
3800 |
3800 |
Block max. widht |
mm |
3500 |
3600 |
3600 |
-

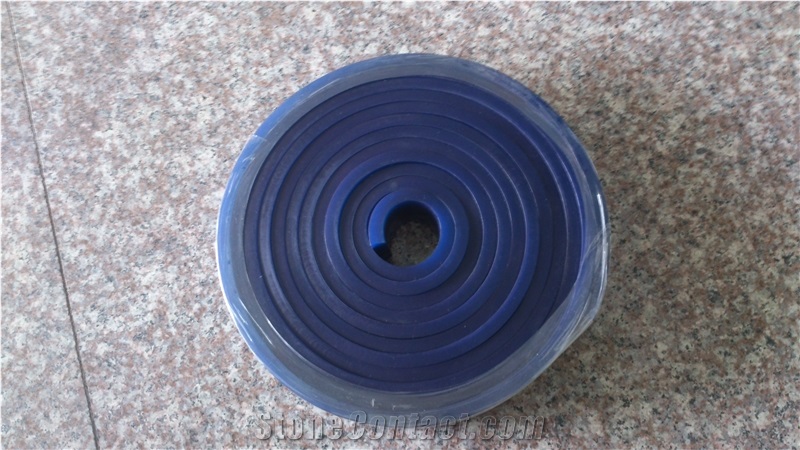

rubber of guide wheel
-

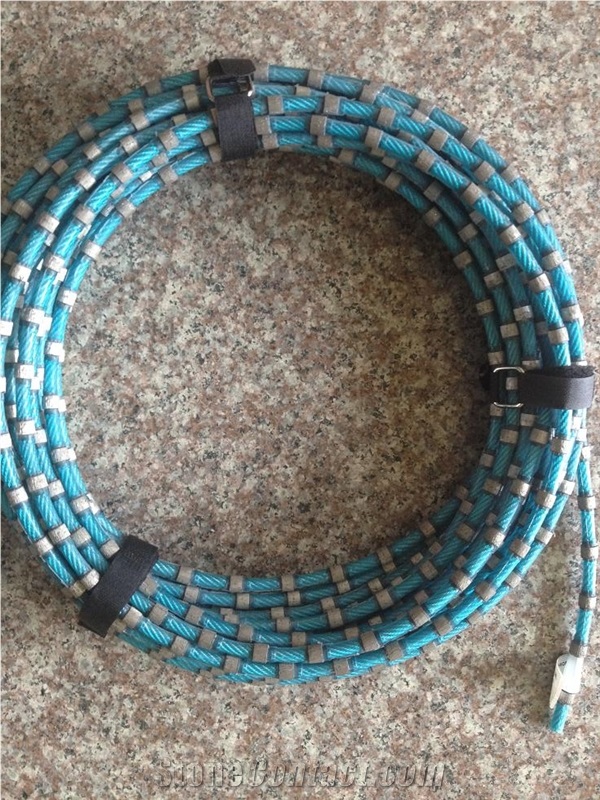

diamond wire
-

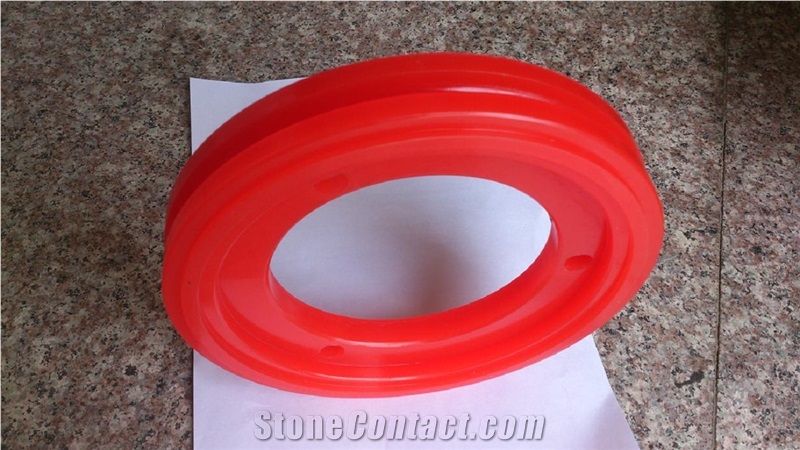

rubber of flywheel
