CHEERSURE HORNET 3 AXIS Energy Efficient Waterjet Cutting Machine

Name: CHEERSURE HORNET 3 AXIS Energy Efficient Waterjet Cutting Machine
Brand: SHANGHAI CHEERSURE INTERNATIONAL TRADING COMPANY
SKU: 8284
Price: 30000 USD
Availability: InStock

FOB Price:$30000-40000

Type: Stone Factory MachinesStone Slab Cutting MachinesCombined 5 Axis Saw & Waterjet Cutting

Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Lead Time: 40 DAYS

Warranty:12 Months

Install and Guarantee:Customer pay for installation

Maintenance:Remote troubleshooting

Supplier

SHANGHAI CHEERSURE INTERNATIONAL TRADING COMPANY

NEOTECH

China

Eatablished :Aug 20,2008

Main Product:

CNC 5 AXIS BRIDGE SAW, EDGE POLISHING LINE, CNC ROUNTER, SMART AUTOMATIC LINE, CNC 5 AXIS WATER JET, 4 AXIS MONO WIRE|

Contact supplier

Start Order

You may also like

5 Axis CNC Precision Accurate High Pressure Stone Slab Waterjet Cutter

CNC 3-Axes Water Jet Machine

5 Axis Cnc Stone Bridge Cutting Saw

5-Axis CNC Sawjet Combined Bridge Saw & Waterjet Stone Cutting Machine

CNC 5 Axis Waterjet Cutting Machine

Product Detail
Company Profile

Overview
Components
Video

Machinery Function Features

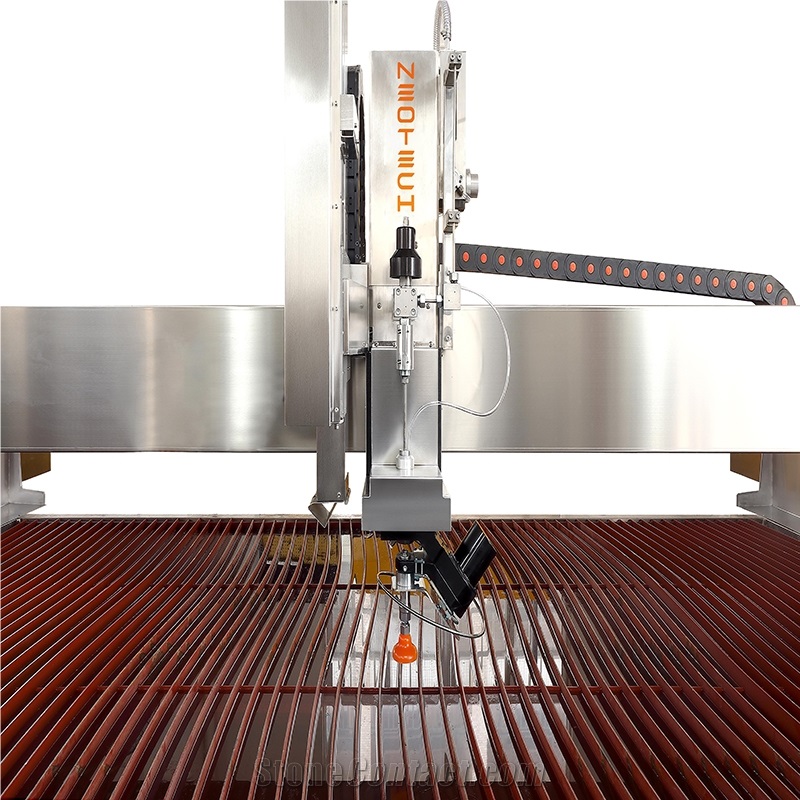

A 3-axis waterjet cutter is a precision CNC machine that utilizes high-pressure water mixed with abrasive particles to cut various materials.

The three primary axes of motion (X, Y, and Z) allow the cutting head to move horizontally, vertically, and adjust the nozzle height for optimal cutting depth.

This configuration enables complex 2D shapes and controlled-depth cuts with smooth edges, making it ideal for metals, stone, composites, and other materials. The Z-axis provides automatic height adjustment to maintain consistent cutting quality.

Technical Data

Parameters	Unit	H4020
Max. worktable load capacity	Kg	900
Y-axis speed	m/min	10
Control Accuracy	mm	±0.01
Overall machine length	mm	8000
Lubrication Mode		Oil Immersed
Waterjet max. pressure	Mpa	450
Max Traverse Speed	mm/min	10000
Max. length of the cut slab	mm	3900
X-axis speed	m/min	10
Waterjet pump capacity	L/min	3.7
Cutting Accuracy	mm	±0.1
Max. width of the cut slab	mm	2000
Processing Mounting Surface		Gantry Milling Machine
Intensifier Inlet Water Pressure	Mpa	>0.4
Max. workable thickness with blade(Φ400) and waterjet	mm	100
Overall machine width	mm	5000
A-axis rotation	°	±75
Cooling method		Double Cooling Structure
Working Pressure	Mpa	300-380
Intensifier Assembly		ZL 2017 21116875.3 Patented Intensifier Assembly
Repeat Positioning Accuraacy	mm	±0.05
C-axis rotation	°	Infinite Rotation
Z-axis speed	m/min	10
Z-axis travel	mm	100
Spindle motor power	kw	22
Overall machine height	mm	2700
Structure		Gantry
Maximum Nozzle Diameter	mm	0.33
