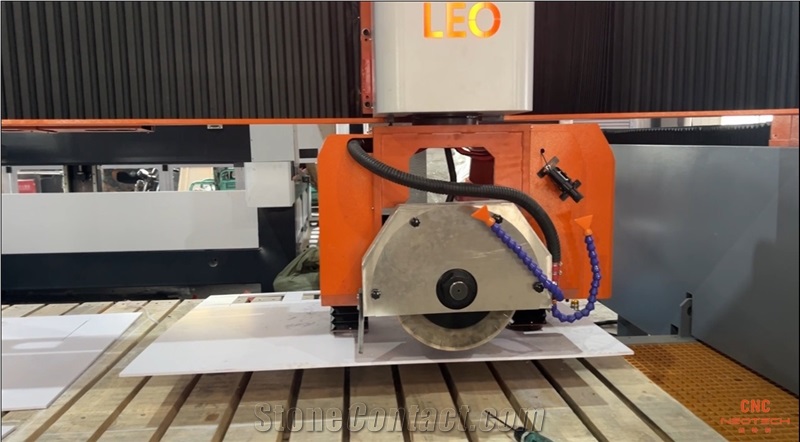

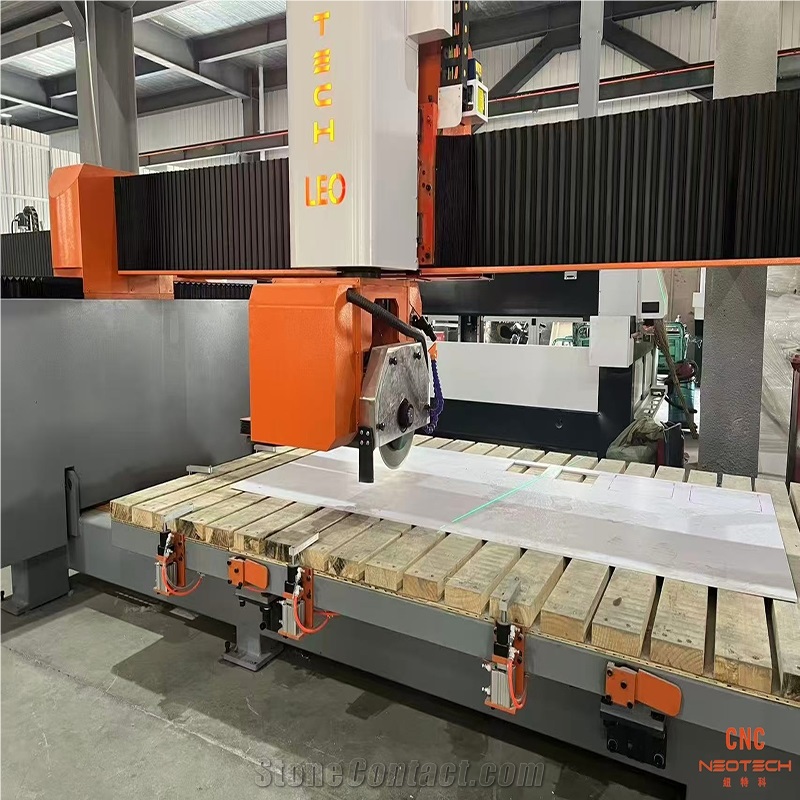

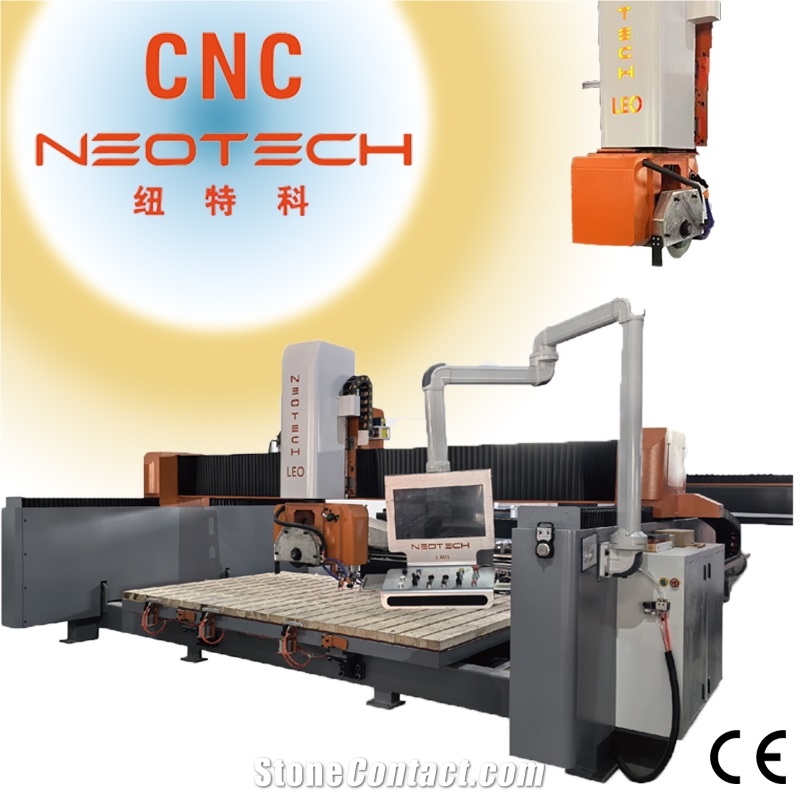

CHEERSURE LEO 4 AXIS CNC Bridge Cutting Machine
FOB Price:$18000-25000
Supplier
Eatablished :Aug 20,2008
Main Product:
CNC 5 AXIS BRIDGE SAW, EDGE POLISHING LINE, CNC ROUNTER, SMART AUTOMATIC LINE, CNC 5 AXIS WATER JET, 4 AXIS MONO WIRE|

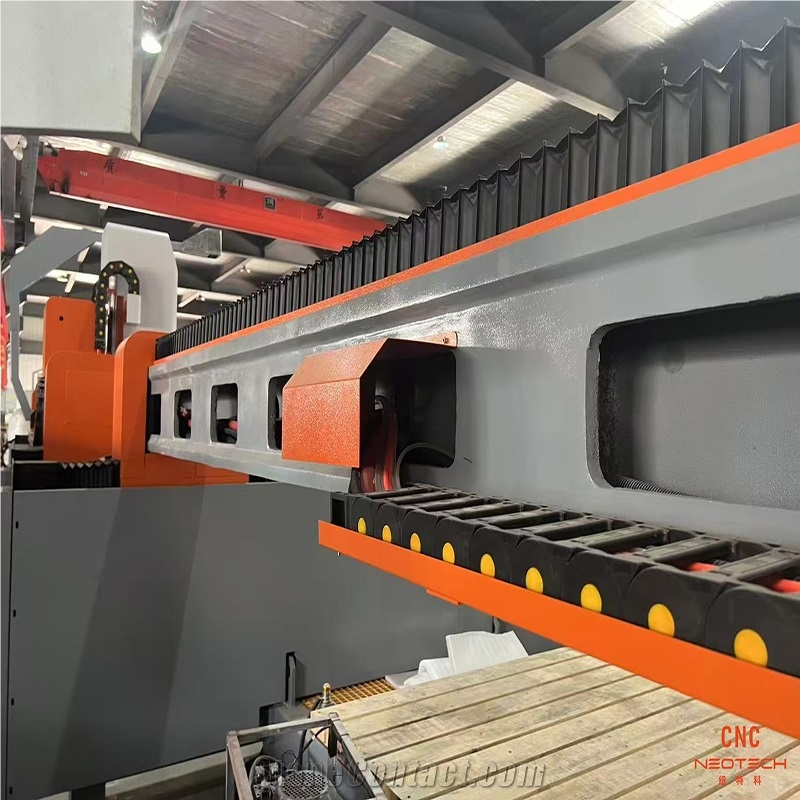

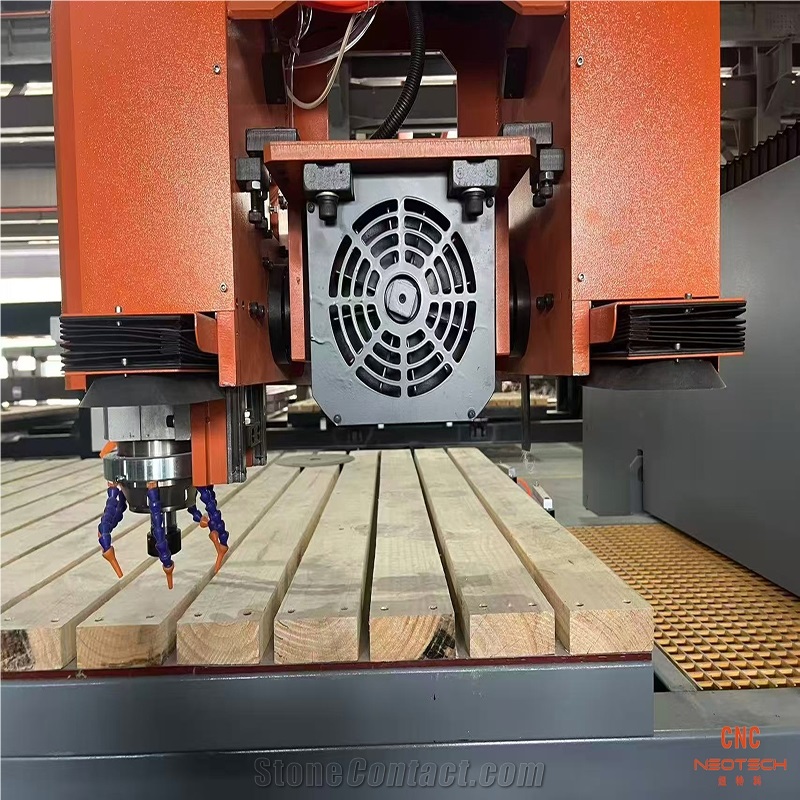

The four-axis bridge saw is mainly composed of a bed, a main beam, a side beam, a machine head, a servo drive system, a CNC system, a vacuum system, a hydraulic system, a lubrication system, a workbench and auxiliary devices. It can achieve high-precision processing of complex-shaped stone and other materials.
Parameters |
Unit |
LEO 4 |
Total Power |
kw |
30 |
Bridge transversal stroke(Y axis travel) |
mm |
2000 |
Machine height |
mm |
3200 |
Machine length |
mm |
5600 |
Main Motor Speed |
r/min |
2800-4000 |
Horizontal stroke(X axis travel) |
mm |
3200 |
Head raising/lowering stroke(Z axis travel) |
mm |
200 |
Max. cutting depth |
mm |
70 |
Max. workable thickness |
mm |
70 |
Worktable turn-over degree |
° |
0-85 |
C axis blade rotation |
° |
-5-365 |
Air consumption |
L/min |
20 |

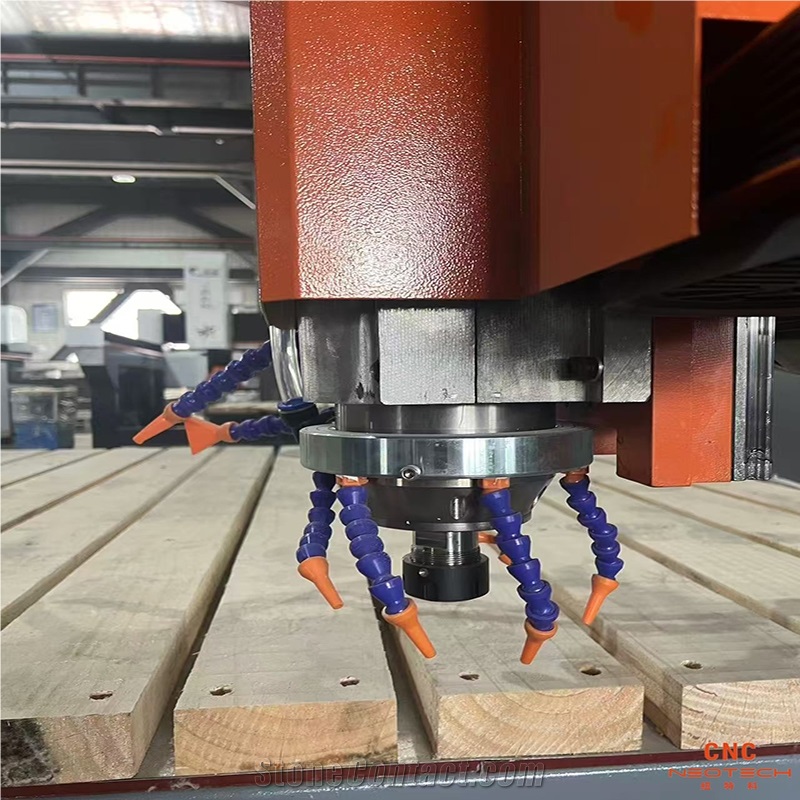

Milling Cutter Power |
kw |
7.5 |
Max.length of the cut slab |
mm |
3200 |
Cooling water requirement(1.5 bar min. pressure) |
L/min |
35 |
Max.width of the cut slab |
mm |
2000 |
Dimensions of the work table(L×W) |
mm |
3200X2000 |
Machine width |
mm |
3400 |
Tools holder head inclination(A axis blade rotation) |
° |
0-90 |
Head motor power |
kw |
15 |
Milling Cutter Speed |
r/min |
24000 |
Beam Manufactoring Process |
Iron Cast |
|
Disc diameter |
mm |
400 |
Approximate weight without table |
T |
4.5 |
-

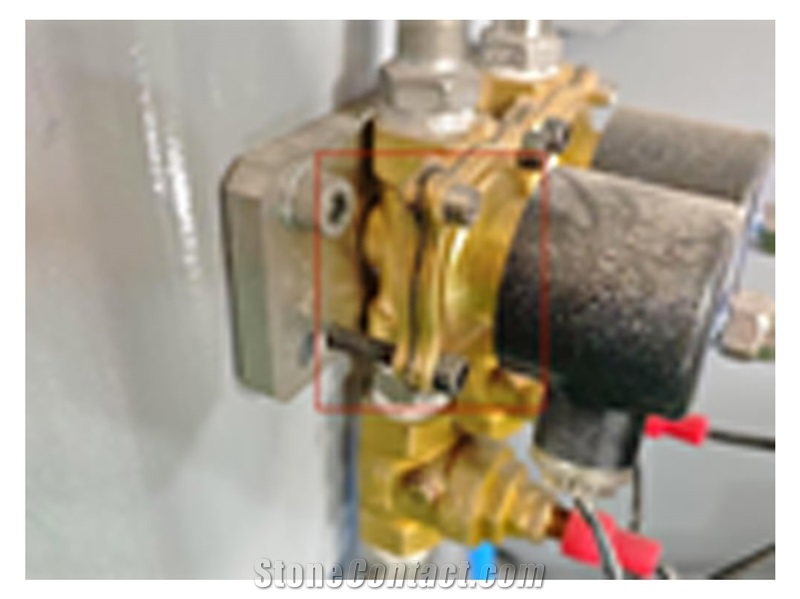

Two-position five-way solenoid valve
-
Normally closed solenoid water valve
