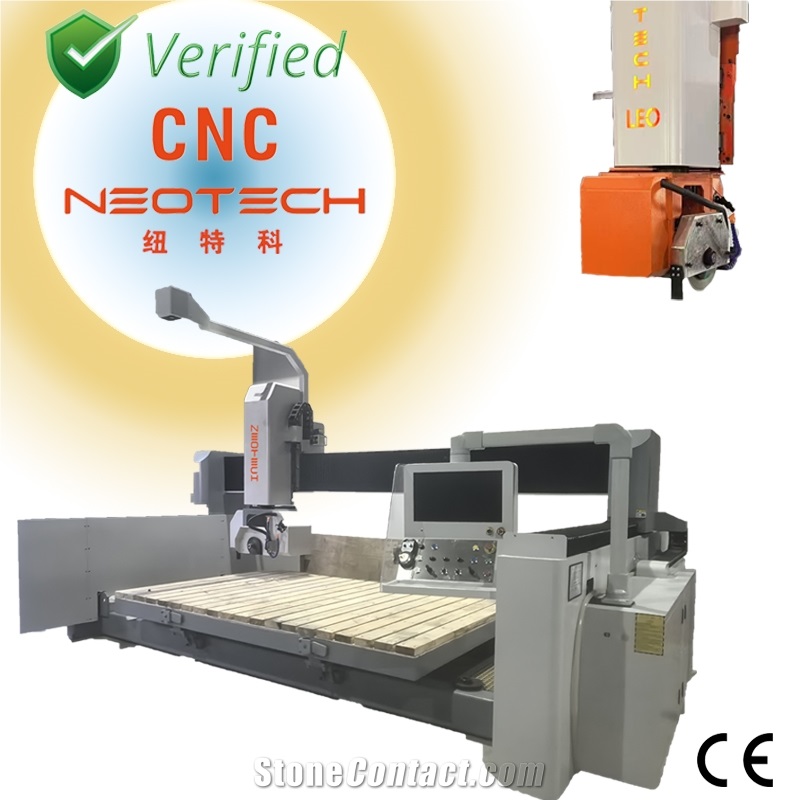

CHEERSURE LEO 5 Axis CNC Bridge Saw Cutting Machine

FOB Price:$25000-35000

Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: 60 DAYS
Warranty:12 Months
Install and Guarantee:Customer pay for installation
Maintenance:Remote troubleshooting

Supplier

Eatablished :Aug 20,2008

Main Product:

CNC 5 AXIS BRIDGE SAW, EDGE POLISHING LINE, CNC ROUNTER, SMART AUTOMATIC LINE, CNC 5 AXIS WATER JET, 4 AXIS MONO WIRE|

Contact supplier

Start Order

  • Overview
  • Components
Machinery Function Features

The integral structure is easy to transport and install. The perfectly balanced design and solid structure ensure long-term stable operation. The table can be tilted 85 degrees, and the tabletop can be made of wood or rubber according to actual needs. The lines of water, electricity, gas, automatic lubrication, etc. are reasonably designed, and different colors are used to increase the recognition. Each is connected through a port, which is simple and fast to install. The combination of manual control + automatic control + handle remote control is convenient for different working scenes. User-friendly operation, fast learning curve, multiple safety protections (mechanical limit, electrical limit, software limit) and foolproof settings (anti-collision, anti-backfire), different languages ​​can be viewed in the settings menu.

Technical Data
Parameters
Unit
LEO 5
Worktable turn-over degree
°
0-85
Dimensions of the work table(L×W)
mm
3200X2000
Milling Cutter Speed
r/min
24000
Machine height
mm
3200
C axis blade rotation
°
-5-365
Machine length
mm
5600
Max. cutting depth
mm
70
Main Motor Speed
r/min
2800-4000
Machine width
mm
3400
Horizontal stroke(X axis travel)
mm
3200
Bridge transversal stroke(Y axis travel)
mm
2000
Tools holder head inclination(A axis blade rotation)
°
0-90
Disc diameter
mm
400
Approximate weight without table
T
4.5
Water concumption
L/min
35
Head motor power
kw
15
Milling Cutter Power
kw
7.5
Head raising/lowering stroke(Z axis travel)
mm
200
Max. workable thickness
mm
70

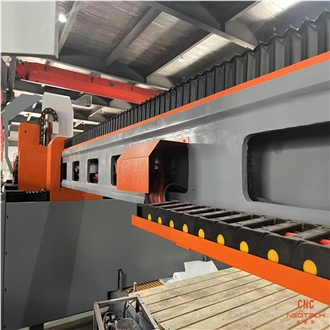

Beam Manufactoring Process
Iron Cast
Total Power
kw
30
Air consumption
L/min
20
Software

NcStudio

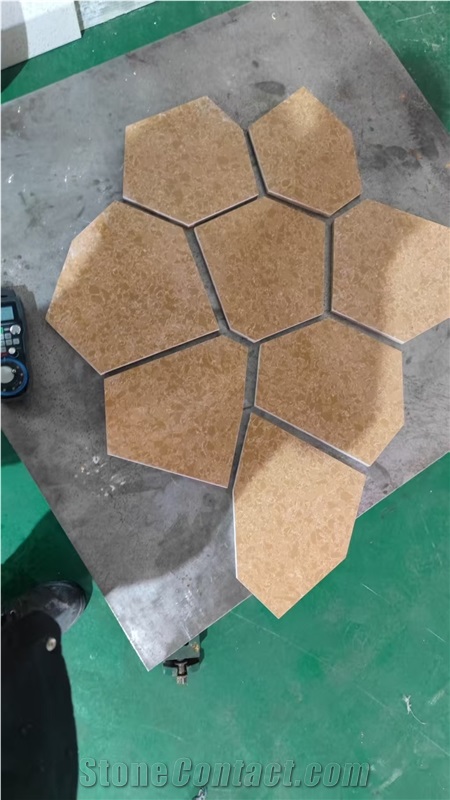

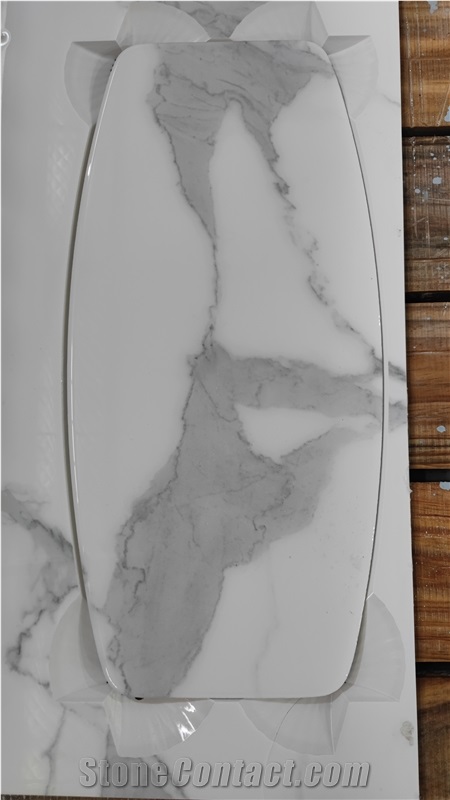

Processed Stone Photos
  • Processed Stone Photos

  • Processed Stone Photos

Components
Consumables
  • Components

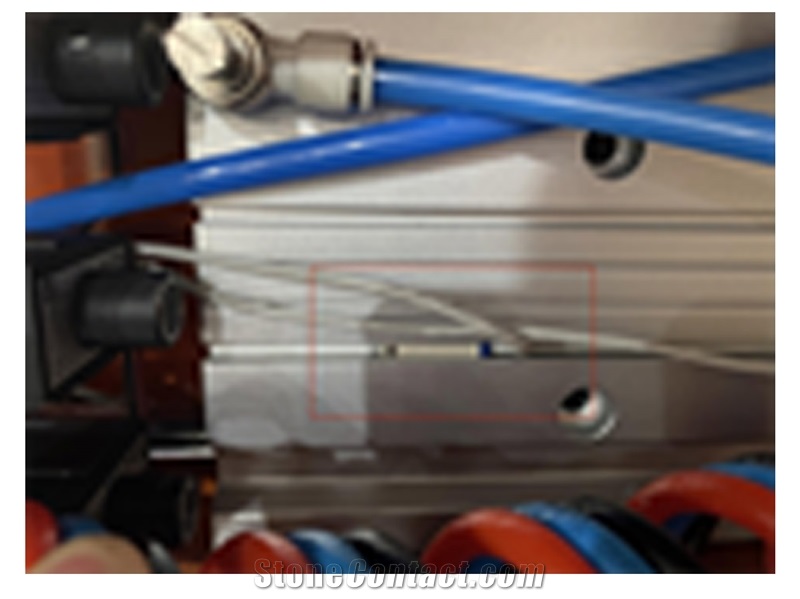

    Magnetic switch

  • Components

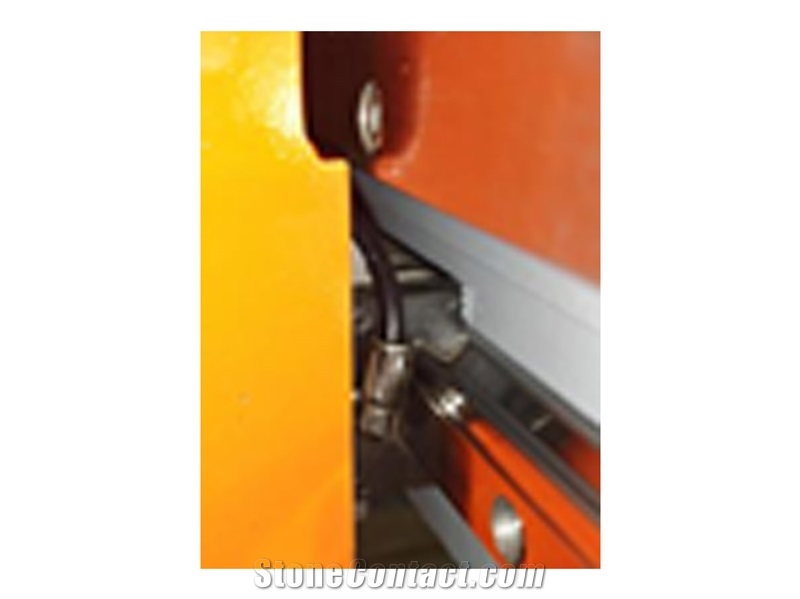

    Top beam lower slide block
