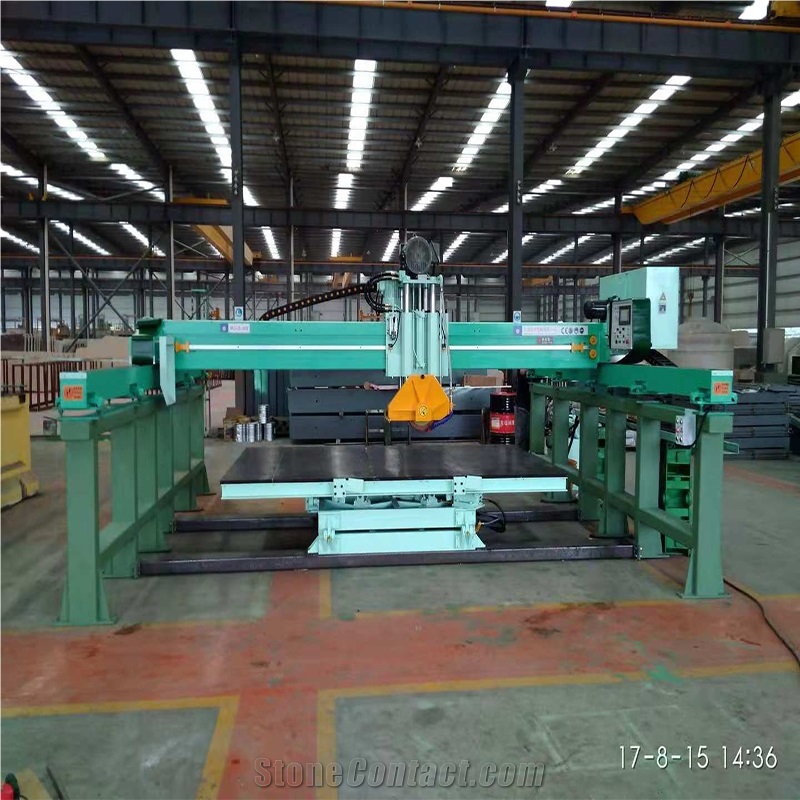

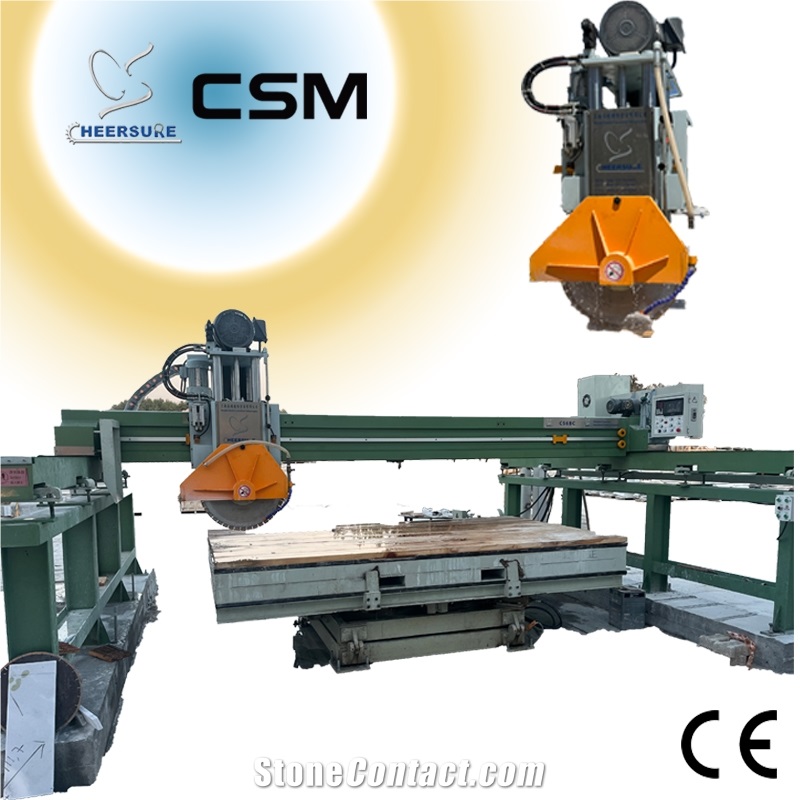

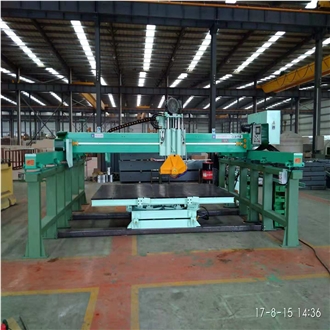

CHEERSURE Heavy 3 Axis Bridge Saw Cutting Machine

Color can change according client requirment

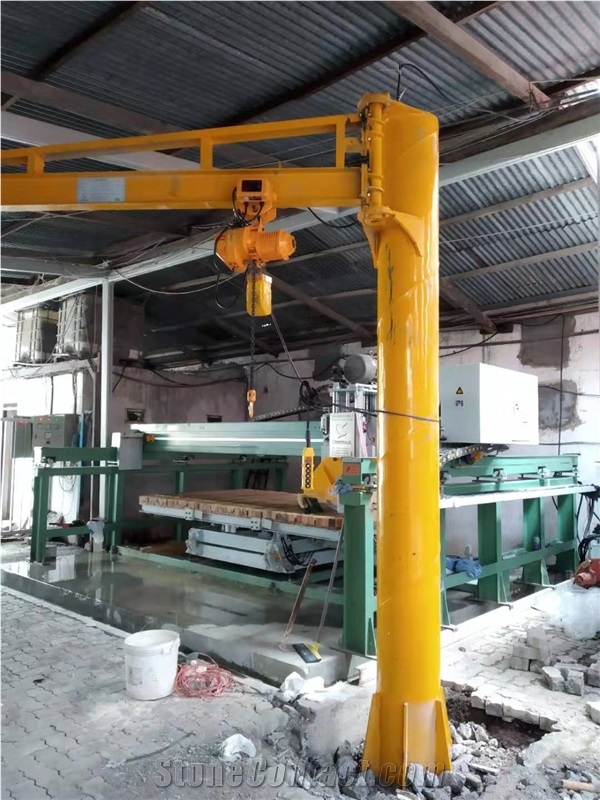

We will give the fundation drawing, need do the cement wall for both side to supoort the side beam

The cross beam is casted. The main frame consists of four pipes seats of one body and is processed with CNC digital controlled machinery.

The four pipe seats of the main frame have oiling function for greasing mission.

The rail of the side beam is made of imported linear sliding rail with higher accuracy and longer life span.

The main cutting body is a integrated one, 4 pipes up and down together with the cylinder, this 4 pipe must be conventric, we use CNC processing machine guarantee the convertric.

The magnetic scale and reading head can guarantee the cutting accuracy.

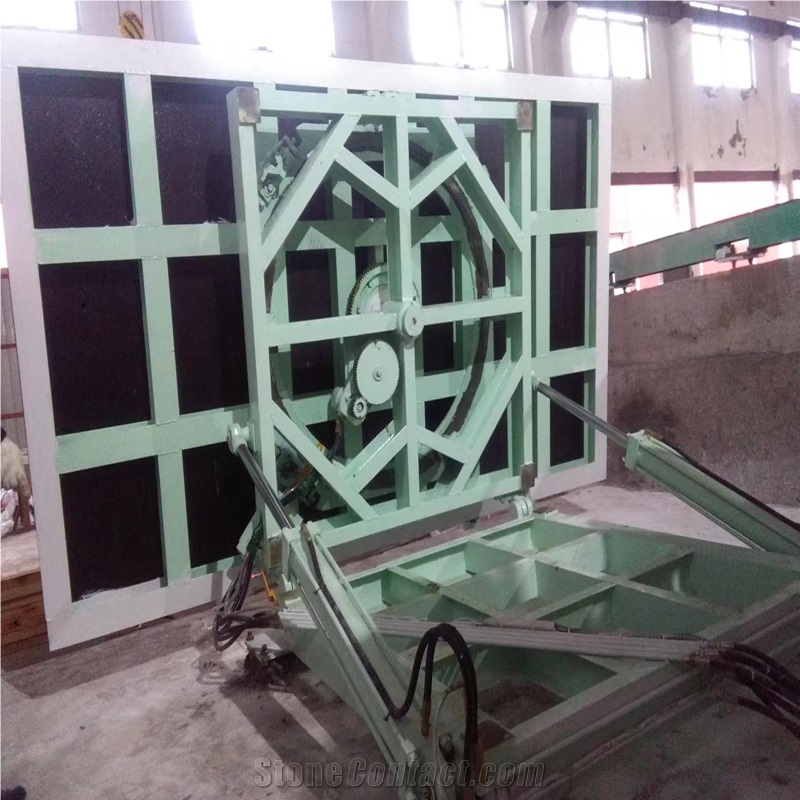

The table can turing 360 degree, and stop at 45 degree, 90 degree, 180 degree, 270 degree.  And can 85 degree tilting

With steel leg and main motor with inverter
