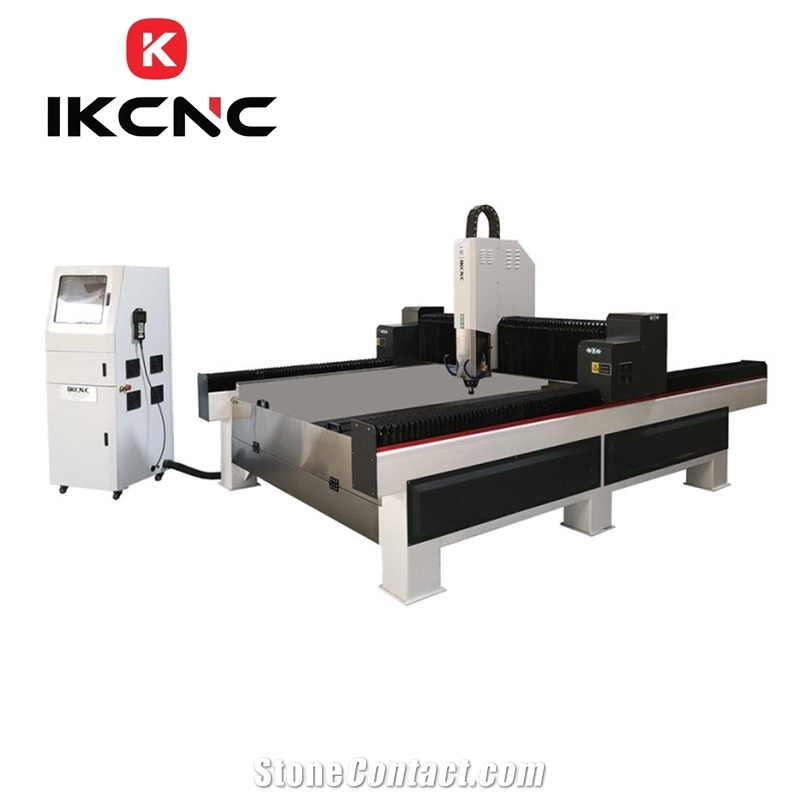

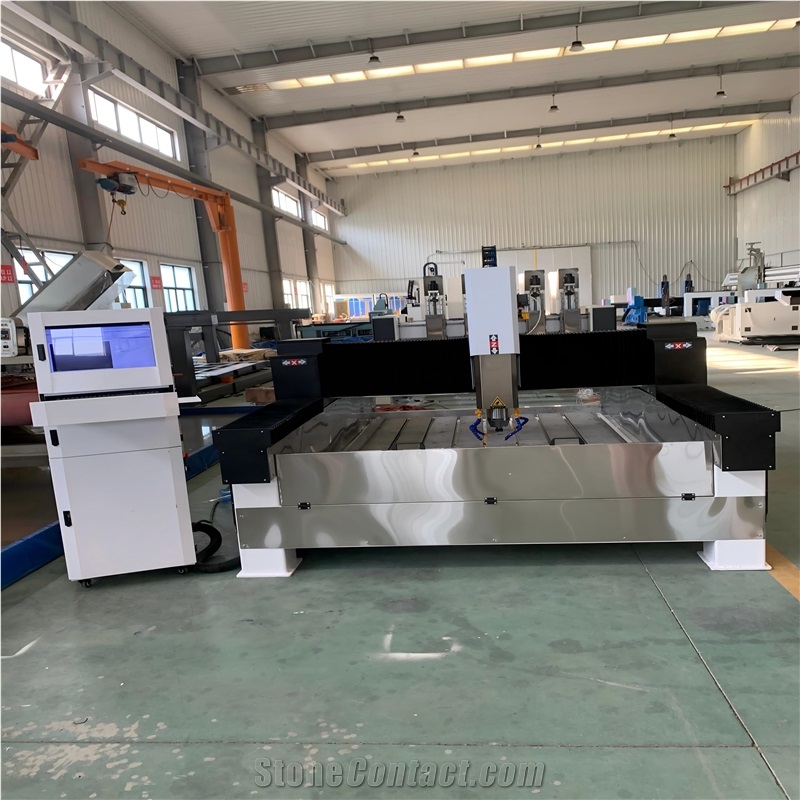

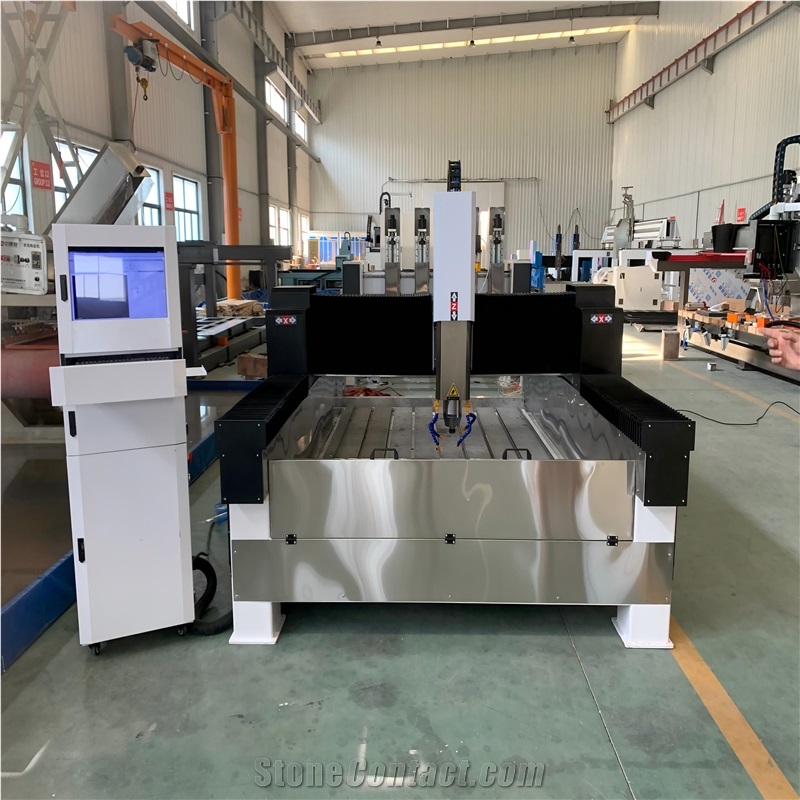

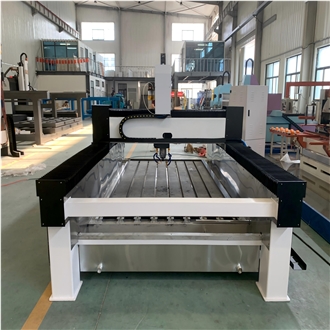

Stone CNC Router For Engraving CNC Engraver Machine IK-1325-YLK

Name: Stone CNC Router For Engraving CNC Engraver Machine IK-1325-YLK
Brand: JINAN IKCNC TECHNOLOGY CO.,LTD
SKU: 8345
Price: 5500 USD
Availability: InStock

FOB Price:$5500-6000

Type: Stone Factory MachinesStone Finishing, Profiling MachinesStone Carving,Engraving Machine

Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Lead Time: 35-45 days

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation

Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting

Trade Terms

Port: Qingdao port- China

Delivery Details: FOB,CFR,CIF,FAS,CIP,FCA,CPT,DDP,Express Delivery

Payment :

Supplier

JINAN IKCNC TECHNOLOGY CO.,LTD

IKCNC

China level 1YR

Eatablished :Dec 26,2014

Main Product:

5 Axis CNC Bridge Saw, 4+1 CNC Bridge Saw , 45° Miter Cutter, Stone CNC Engraving Machine, Cutting And Edging Work Center, Trepanning Machine|

Contact supplier

Start Order

You may also like

Red General Series Engraving Machine

Single Head Plane Engraving Machine

Custom ATC 2113 Granite Engraving Machine With Rotary Device For Sale

Professional Stone CNC Router, Stone CNC Machine,Stone Cutting Machine

3 Axis CNC Carving Machine, Countertop Milling Polishing Machine

Product Detail
Company Profile

Overview
Components
Video
Trade Terms

Machinery Function Features

Functional characteristics.

Y axis unilateral double row 30 linear guide(total 4 guide), the structure and the operation are more stable.

1.5M grinding high precision rack, Japan Xinbao reducer transmission, fast speed, high processing accuracy.

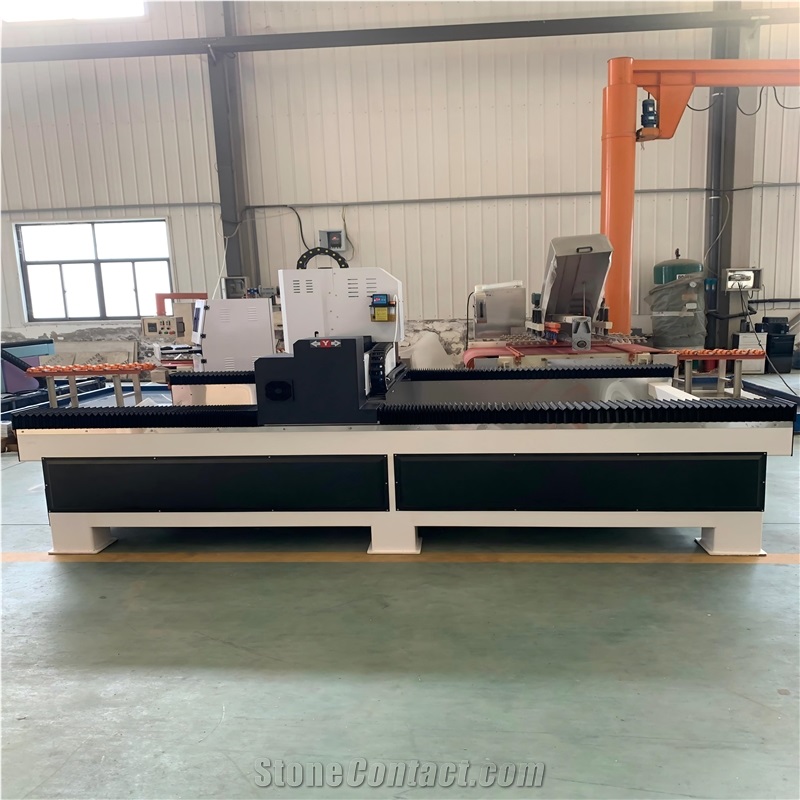

Machine body with thick square pipe and double horizontal support structure, no deformation, bearing
significant.

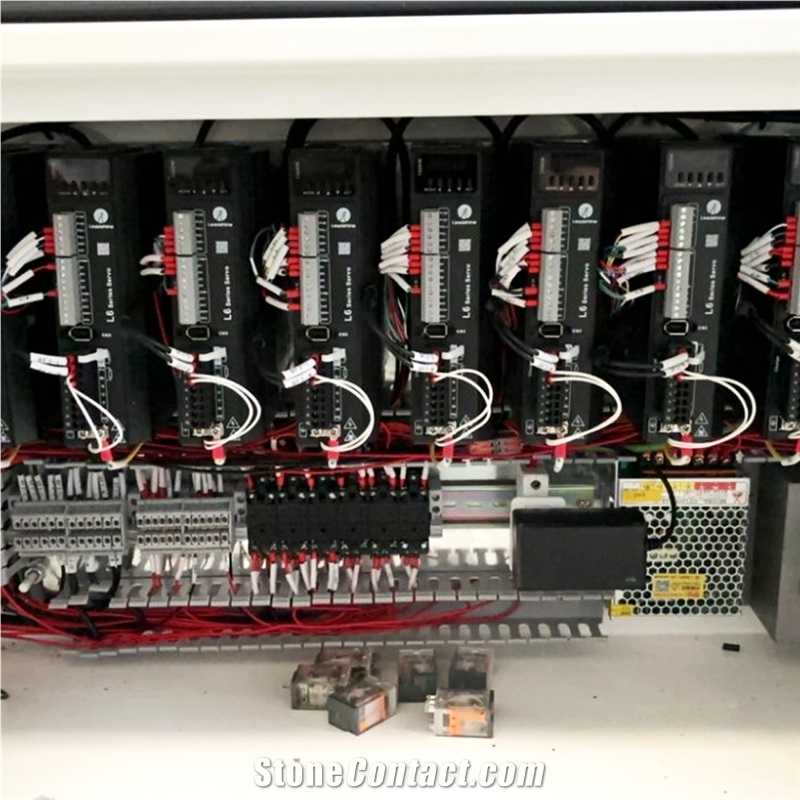

Three-axis high power, brand servo motor, Z-axis lock motor, long time work more stable.

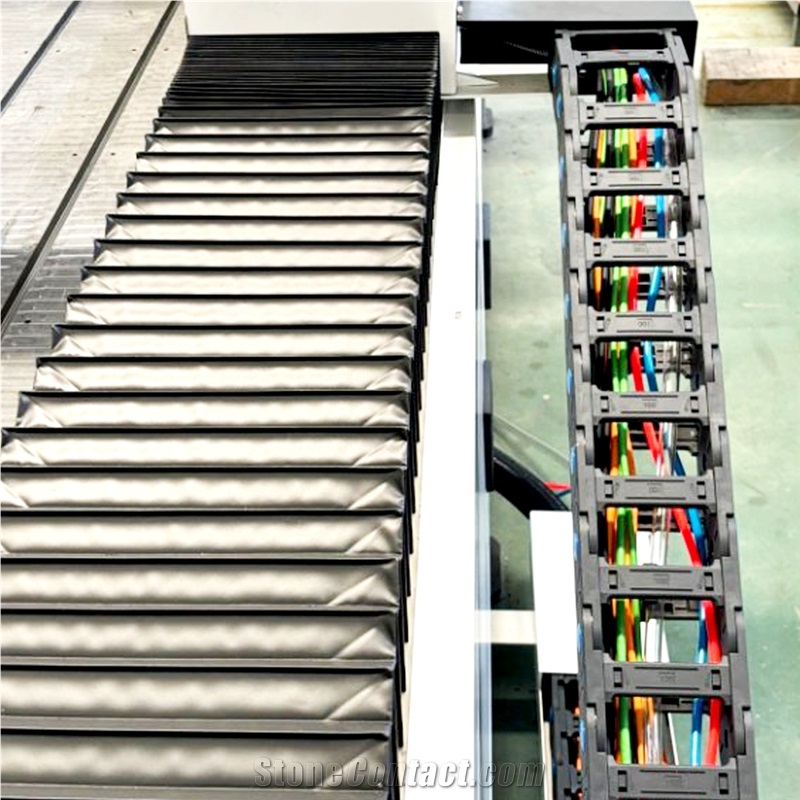

The cable of whole machine is high quality, low temperature resistance, high folding resistance and long servicelife.

Technical Data

Parameters	Unit	IK-1325-YLK
Main spindle motor power	kw	7.5
Max. Processing Width	mm	2500
Max. processing length	mm	1300

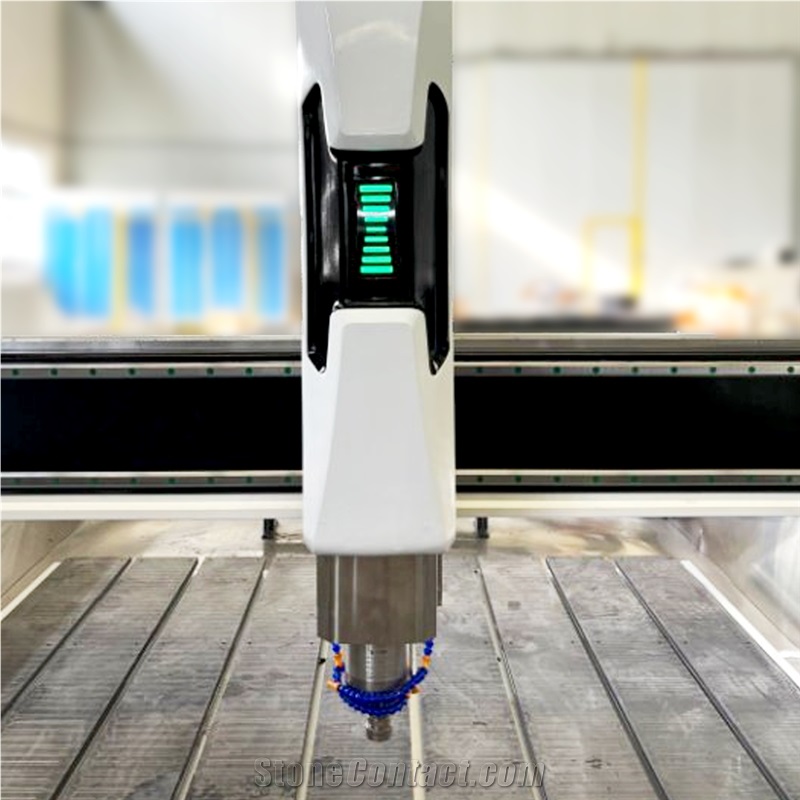

Main spindle speed	r/min	24000
Approx. Weight	Kg	1.5
Total power	kw	7.5
Machine overall length	mm	2500
Number of engraving head	nr	1
Max. processing thickness	mm	400
Machine overall width	mm	3700

Software

NC Studio is a computer numerical control system primarily used to control various processing equipment, such as milling machines, lathes, laser cutting machines, and stone cutting-grinding all-in-one machines. Its working principle is based on computer technology, automatic control theory, and communication technology, aiming to convert digital processing instructions into actual actions of the equipment to achieve precise processing operations. The details are as follows:

Instruction Input and Parsing:

Multiple Input Methods: Operators can manually input processing instructions through the operation interface of NC Studio, or import G-code files generated by CAD/CAM software (such as UG, Mastercam, AutoCAD, etc.). These G-codes are a universal numerical control programming language that specifies key processing parameters in detail, including tool path, cutting speed, and feed rate.

Instruction Parsing Process: After the system reads the input instructions, its core processor decodes and calculates these instructions. For example, it parses coordinate values and motion instructions (such as linear interpolation G01, circular interpolation G02, etc.) in the G-code into specific motion information of each axis (X, Y, Z axes, etc.) of the equipment, clarifying the movement direction, distance, and speed of each axis.

Work Example

Stone engraving machines use CNC systems to turn digital designs into stone carvings via coordinated tool movement.
They take G-code instructions (from CAD/CAM software) and convert them into signals for axis movement (X, Y, Z, and rotary A for 3D work). A high-speed spindle with diamond or carbide tools grinds the stone, adjusting speed and pressure based on stone hardness.
Axes work together: X/Y trace patterns, Z controls depth, and A rotates stone for curves. Sensors monitor tool position and stone stability, correcting deviations in real-time.

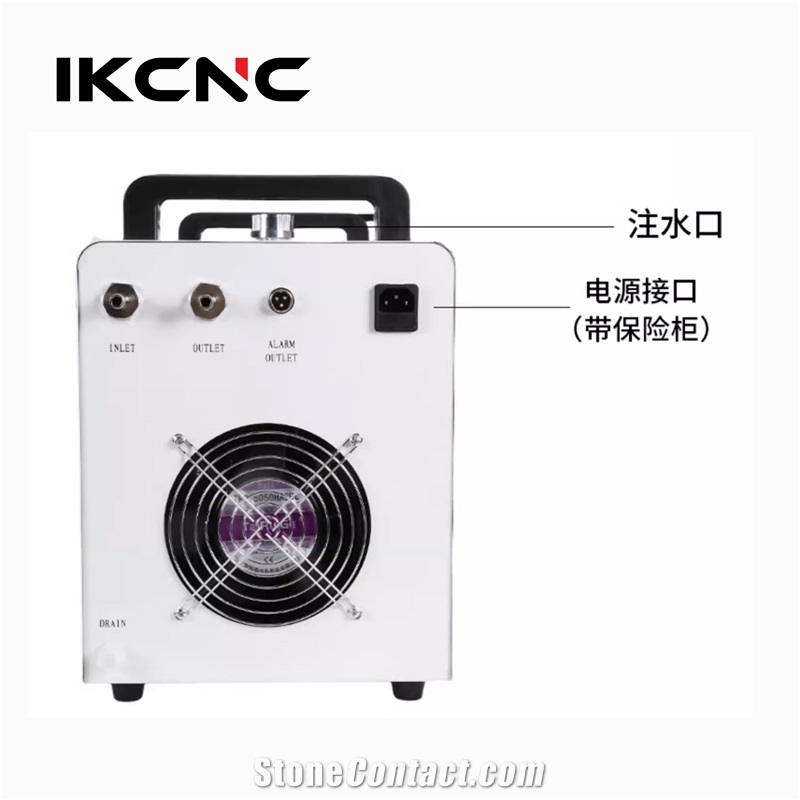

Cooling and dust removal systems run alongside, while advanced models auto-change tools for relief, line, or 3D carving. This setup ensures precise, efficient stone engraving.

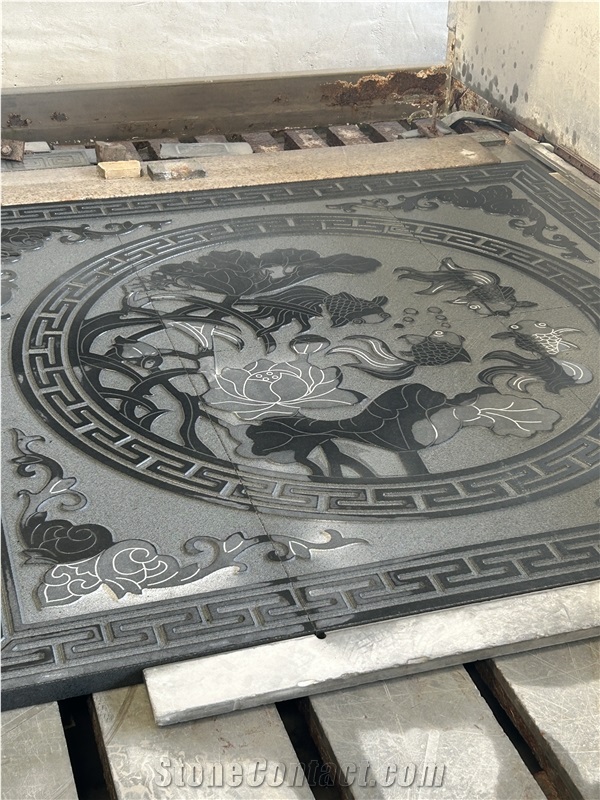

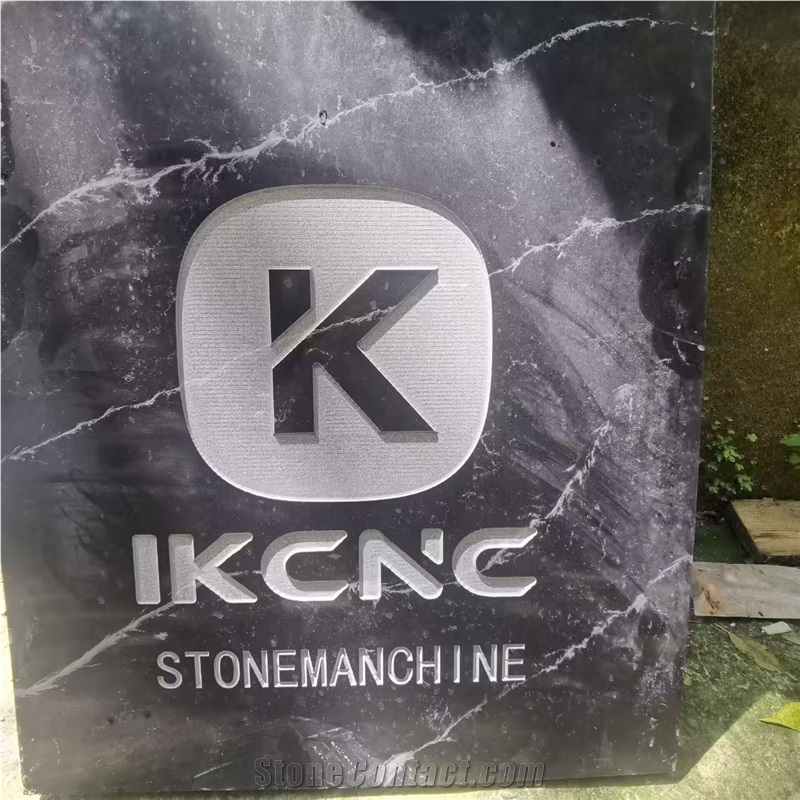

Processed Stone Photos
