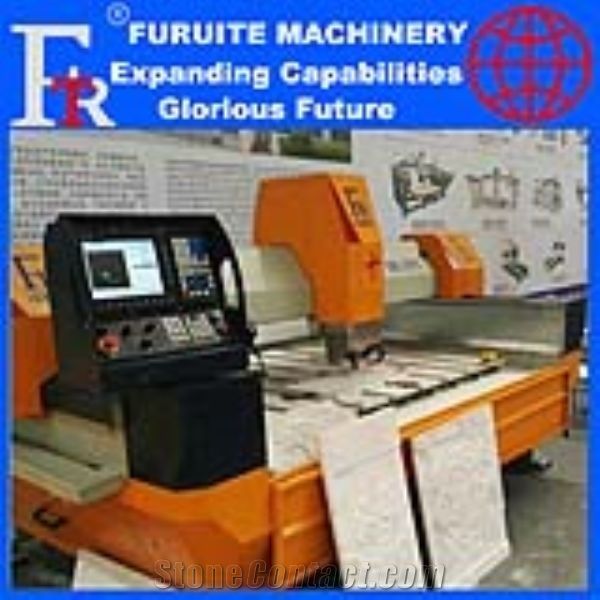

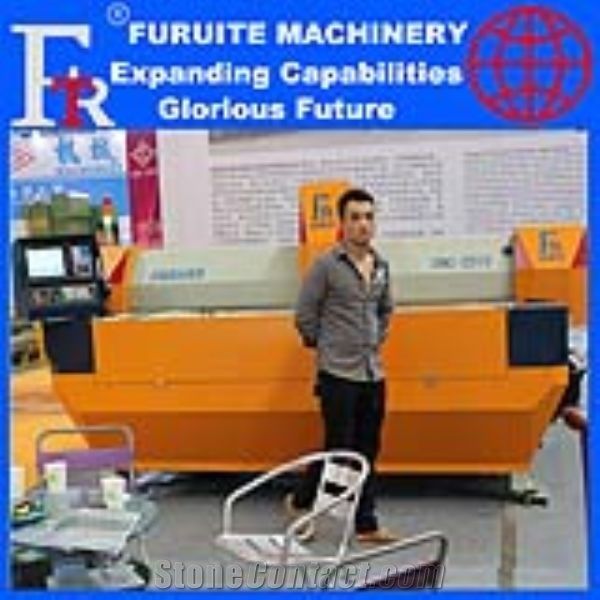

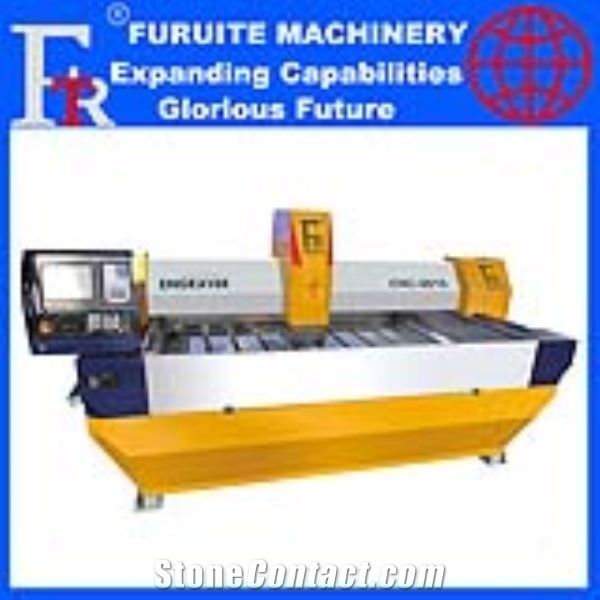

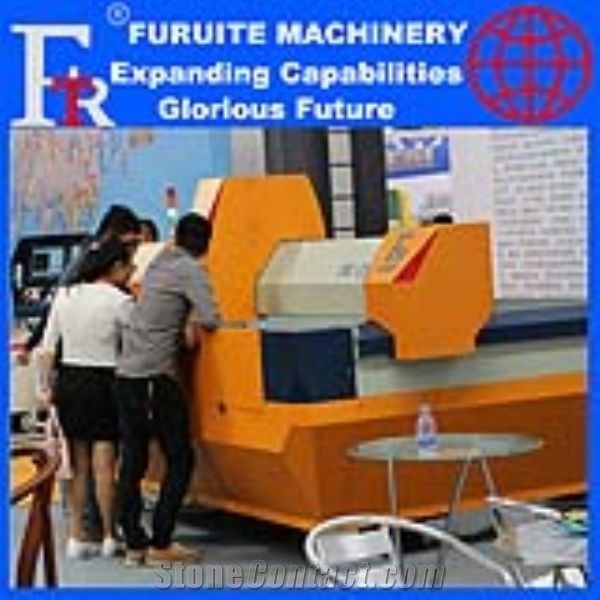

CNC-2015 three axis stone engraving machine oversea business
FOB Price:$17500-20500
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesStone Carving,Engraving Machine
Usage:
Granite, Marble, Quartzite
After-Sale
Lead Time:
30-45 working days for 3p380v50hz
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Machinery Function Features
This machine with a full range of cutting capacity,plane curve be used for any cutting,specially reinforced bed structure,cutting blade run at high speed,it will nor produce vibration, machine run smoothly,cutting speed,high machining accuracy.cutting head pneumatic high pressure water switch control device equipped with reliable,improving production efficiency.unique sand valve design,simple structure,sand of the stream more smooth,repairs easier,and prevent the phenomenon occurs in water,full stainless steel enclosure,dust-proof,water-proof,rust-proof,corrosion-proof,easy to wash,maintain cutting platform year round shiny like new,CNC controller and stepping system of AC servo system to choose form.
Motor: Jiangsheng
CNC: Shanghai Ncstudio
Servo drive: Guangzhou GSK
Servo motor: Gete
Contactor: LG
Switch button: SIEMENS
The equipment conforms to the national standard.
Technical Data
Parameters |
Unit |
CNC-1515 |
CNC-2015 |
CNC-2515 |
Max. Processing Width |
mm |
1500 |
1500 |
1500 |
Machine overall length |
mm |
2800 |
3300 |
3800 |
Repeated positioning/Ball screw precision |
mm |
0.05 |
0.05 |
0.05 |
Max. traveling speed |
m/min |
1.5 |
1.5 |
1.5 |
Water consumption |
m3/h |
5 |
5 |
5 |
Number of engraving head |
nr |
1 |
1 |
1/2 |
Machine overall height |
mm |
1600 |
1600 |
1600 |
Machine overall width |
mm |
2350 |
2350 |
2350 |
Max. processing length |
mm |
1500 |
2000 |
2500 |
Z Axis speed |
m/min |
0.1 |
0.1 |
0.1 |
Max. working speed |
m/min |
1.5 |
1.5 |
1.5 |
Sound pressure level |
dbA |
80 |
80 |
80 |
Max. processing thickness |
mm |
50 |
50 |
50 |
Total power |
kW |
12.15 |
12.15 |
12.15/21.4 |
Main spindle speed |
r/minute |
24000 |
24000 |
24000 |
X Axis speed |
m/min |
0.5 |
0.5 |
0.5 |
Min. Processing Width |
mm |
100 |
100 |
100 |
Main spindle motor power |
kW |
7.5 |
7.5 |
7.5/15 |
Diameter of spindle tools |
mm |
10 |
10 |
10 |
Max. loading weight |
kg |
1000 |
1000 |
1000 |
Y Axis speed |
m/min |
0.5 |
0.5 |
0.5 |
Approx. Weight |
Kg |
2600 |
2800 |
3200 |
Control System |
CNC three axis |
CNC three axis |
CNC three axis |
