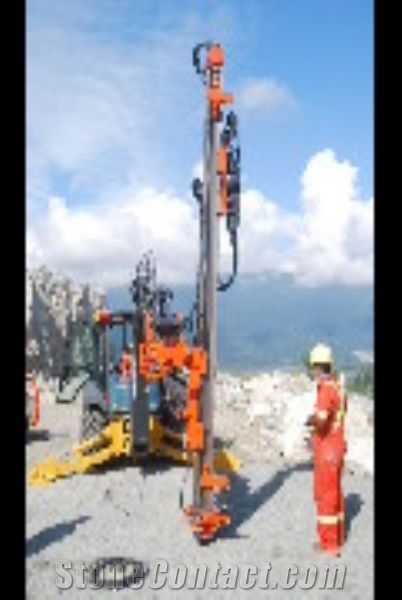

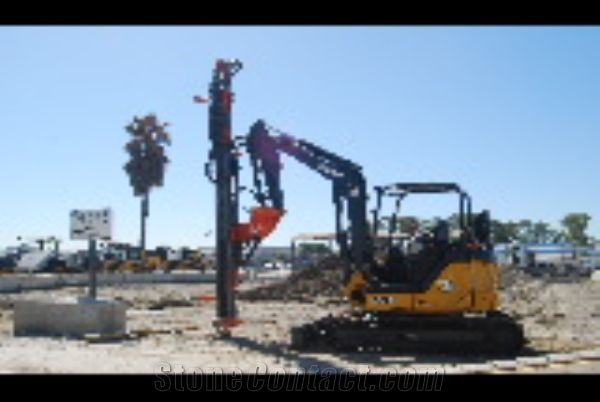

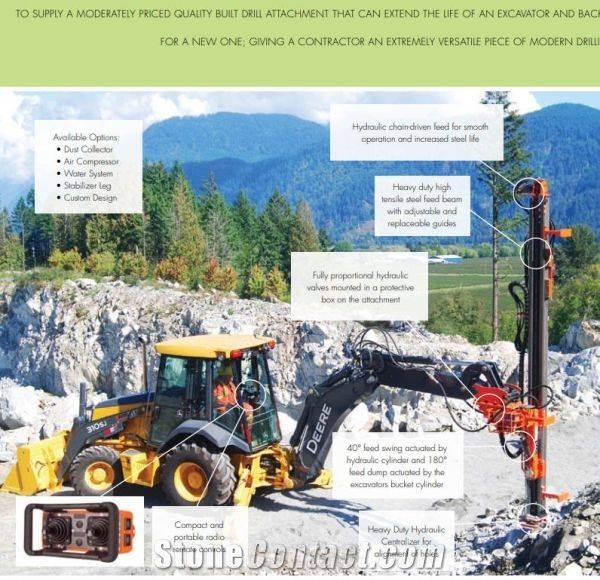

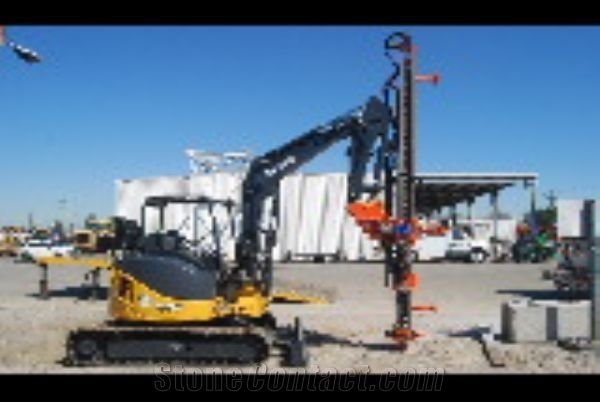

TR-EX 1000 Excavator Rock Drill Attachment

The tr-ex 1000 is an excavator or backhoe mounted drill attachment built to be dependable, rugged and versatile. The attachment mounts to the excavator (dipper stick) and after installation you can go from drilling to bucket or breaker work in 20 minutes. Benefits • Big reach advantage over dedicated hydraulic drill rigs • Very quick setup times between holes • Ideal for blast hole, pipeline, pre-shear, rock bolting and drilling with casing • Incredible geometry for drilling • Hydraulic drill performance & reliability • Lower capital cost than a dedicated drill rig • Excellent mobility • Operator health and safety The bottom line Traxxon Rock Drills has been building drills from the ground up for over 40 years. We manufacture every one of our products using the highest quality components, dedicated skilled technicians and using our decades of experience. We are customer focused and driven. Our goal is simply to help you lower your drilling costs and increase your bottom line, the power to drill more for less. Drifter Model:...........Sandvik HL300 (other options available) Percussion:.......8 kW (10.73 hp) Weight:.............94 kg (207lbs) Hole Range:.........35mm - 64mm (1-3/8” – 2.5”) Hole Depth: .....15m (50’) Attachment & feed assembly Feed Beam: ..........High Tensile steel Drill Guides:.................Adjustable & replaceable bronze Drill Travel:..................Heavy duty chain & hydraulic drive motor Steel Length:....................3700mm (12’) maximum length Hose Control:.............Drifter mounted hanger, travels with drifter Centralizer:...Hydraulic with replaceable hardened bushings Feed Swing:...................40° by hydraulic cylinder Feed Dump: ..................180° Carrier bucket cylinder Mounting:......................Quick attach bucket mount on boom stick Storage: .........................Built in stand Weight:.......................816kg (1,800lbs)
