Cnc diamond wire saw machine, CNC Diamond Wire Shaping Machine

Name: Cnc diamond wire saw machine, CNC Diamond Wire Shaping Machine
Brand: Xiamen Qicheng Superhard Material Co., Ltd.
SKU: 759
Price: 29000 USD
Availability: InStock

FOB Price:$29000-45000

Type: Stone Factory MachinesStone Block Cutting MachinesCNC Diamond Wire Shaping Machine

Usage: Granite, Marble, Limestone, Quartzite, Sandstone, Travertine

After-Sale

Lead Time: 3weeks

Warranty:12 Months

Install and Guarantee:Customer pay for installation

Maintenance:Online software upgrade, Remote troubleshooting

Trade Terms

Delivery Details: FOB,CFR,CIF,EXW

Payment :

Supplier

Xiamen Qicheng Superhard Material Co., Ltd.

QCNG

China level 9YR

Eatablished :Aug 03,2009

Main Product:

Diamond Wire, Diamond Segment, Diamond Saw Blade, Polishing Abrasives, Wire Saw Machine, Block Cutting Machine, Drill Bit Drill Rod Dth Hammer|

Contact supplier

Start Order

You may also like

CTS-3500-22FW Single Wire Block Squaring Machine

Stone CNC Wire Saw Machine

SHXJ1500(I)/1800(I)/2200(I) Five Axis CNC Mono Wire Saw Machine

QCXE-1800 cnc wire saw machine

Single Diamond Wire Saw CNC Cutting Machine For Block Cutting, Dressing, Profiling

Product Detail
Company Profile

Overview
Components
Trade Terms

Machinery Function Features

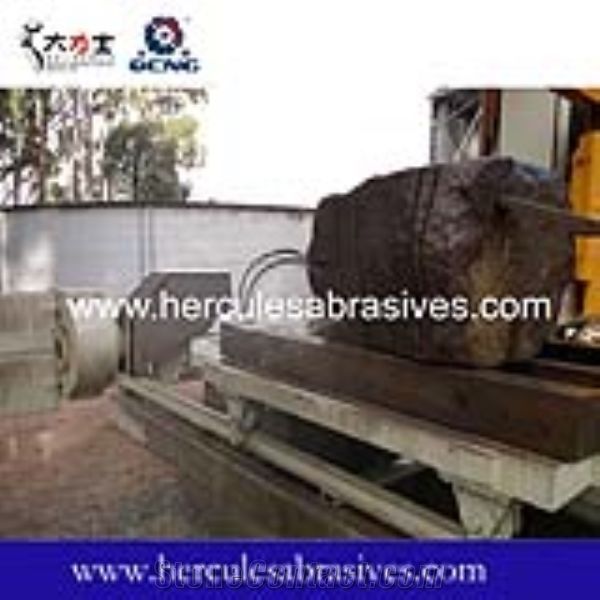

This machine major in cutting slabs and profiling granite and marble. It can cut different sizes of straight slab, arc slab, solid columns and hollow columns and large-scale stone line, letter etc

Technical Data

Parameters	Unit	QCXE-1500	QCXE-1800	QCXE-2200
Speed of wire lifting/lowering	mm/h	0-1800	0-1800	0-1800
Max. inclination of the wire-driving unit	Gradi Degrees	no	no	no
Block max. height	mm	1500	1800	2100
Block max. weight	kg	20000	30000	50000
Wire peripheral speed	mm/sec	0-40	0-40	0-40
Block length	mm	2000	2000	2000
Overall dimensions (without perimeter fencing) lenght	mm	7500	8800	9800
Max. span for horizontal passage between the wire driving pulleys	mm	3300	3600	3600
Horizontal travel of the wire-driving unit	mm	2300	3500	3500
Overall widht	mm	6000	6800	7000
Total installed power	kW	19.38	19.38	24.03
Min. water pressure required	bar	25	25	25
Wire actuating motor power	kW	11	11	15
Block-holding trolley travel	mm	2300	3500	3500
Total water requirements	l/min	50	50	50
Overall height	mm	3800	4800	5200
Block max. widht	mm	3200	3500	3500
Diameter of new diamond wire	mm	7.3~11.0	7.3~11.0	7.3~11.0
Approximative Weight	kg	7000	10500	14000
Block-holding trolley dimensions	mm	1360x2000	1800x2000	3000x2000
Wire-driving unit rotation	Gradi Degrees	no	no	360°
Diamond wire length	mm	18100	19300	21250
