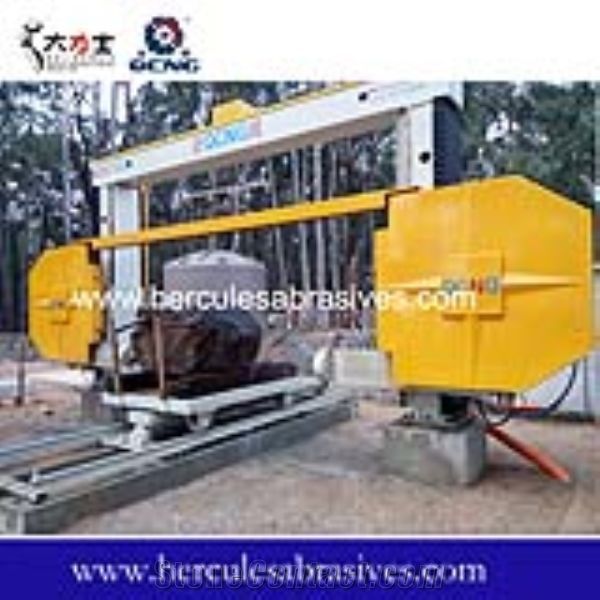

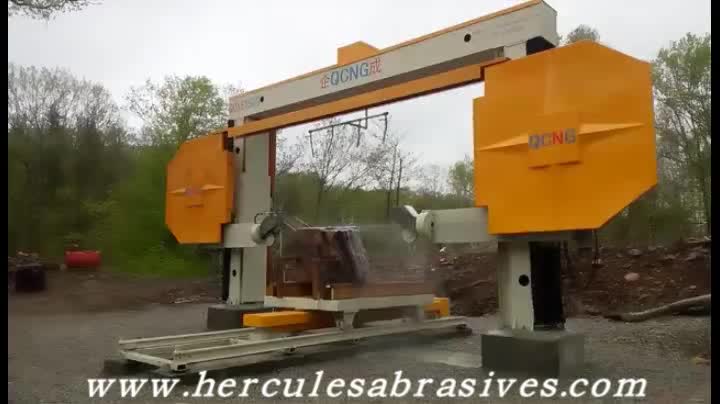

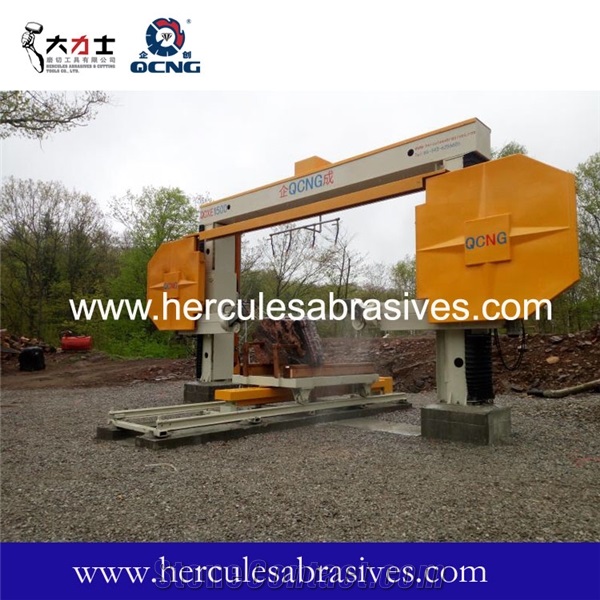

Cnc profiling wire saw machine
FOB Price:$29000-45000
Type:
Stone Factory MachinesStone Block Cutting MachinesCNC Diamond Wire Shaping Machine
Usage:
Granite, Marble, Sandstone
After-Sale
Lead Time:
3 weeks
Warranty:12 Months
Install and Guarantee:Customer pay for installation
Maintenance:Online software upgrade
Trade Terms
Delivery Details: FOB,CFR,CIF,EXW
Payment :
Supplier
Eatablished :Aug 03,2009
Main Product:
Diamond Wire, Diamond Segment, Diamond Saw Blade, Polishing Abrasives, Wire Saw Machine, Block Cutting Machine, Drill Bit Drill Rod Dth Hammer|
You may also like
Machinery Function Features
This machine major in cutting slabs and profiling granite and marble. It can cut different sizes of straight slab, arc slab, solid columns and hollow columns and large-scale stone line, letter etc
Technical Data
Parameters |
Unit |
QCXE-1500 |
QCXE-1800 |
QCXE-2200 |
Block-holding trolley dimensions |
mm |
1360x2000 |
1800x2000 |
3000x2000 |
Block length |
mm |
2000 |
2000 |
2000 |
Approximative Weight |
kg |
7000 |
10500 |
14000 |
Speed of wire lifting/lowering |
mm/h |
0-1800 |
0-1800 |
0-1800 |
Block max. height |
mm |
1500 |
1800 |
2100 |
Total installed power |
kW |
19.38 |
19.38 |
24.03 |
Diamond wire length |
mm |
18100 |
19300 |
21250 |
Wire actuating motor power |
kW |
11 |
11 |
15 |
Total water requirements |
l/min |
50 |
50 |
50 |
Block-holding trolley travel |
mm |
2300 |
3500 |
3500 |
Overall widht |
mm |
6000 |
6800 |
7000 |
Max. inclination of the wire-driving unit |
Gradi Degrees |
no |
no |
no |
Overall dimensions (without perimeter fencing) lenght |
mm |
7500 |
8800 |
9800 |
Block max. widht |
mm |
3200 |
3500 |
3500 |
Block max. weight |
kg |
20000 |
30000 |
50000 |
Diameter of new diamond wire |
mm |
7.3~11.0 |
7.3~11.0 |
7.3~11.0 |
Horizontal travel of the wire-driving unit |
mm |
2300 |
3500 |
3500 |
Max. span for horizontal passage between the wire driving pulleys |
mm |
3300 |
3600 |
3600 |
Wire-driving unit rotation |
Gradi Degrees |
no |
no |
360° |
Overall height |
mm |
3800 |
4800 |
5200 |
Min. water pressure required |
bar |
25 |
25 |
25 |
Wire peripheral speed |
mm/sec |
0-40 |
0-40 |
0-40 |
Processed Stone Photos
-
profiling
-
slab cutting
Components
-

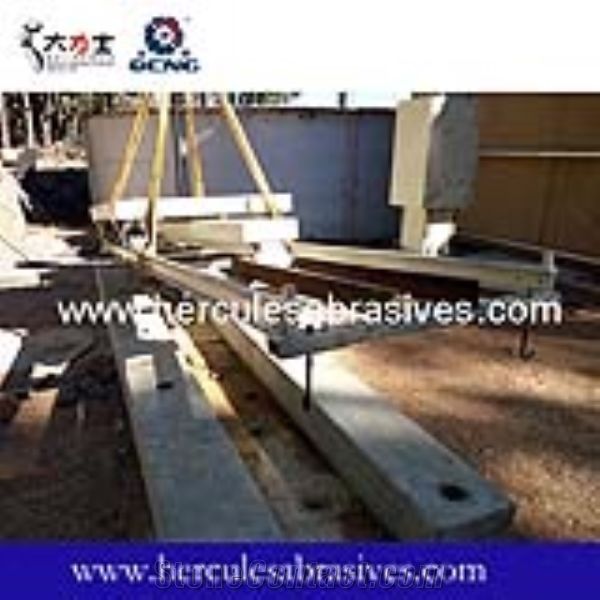

Trolley
¥Payment Required -

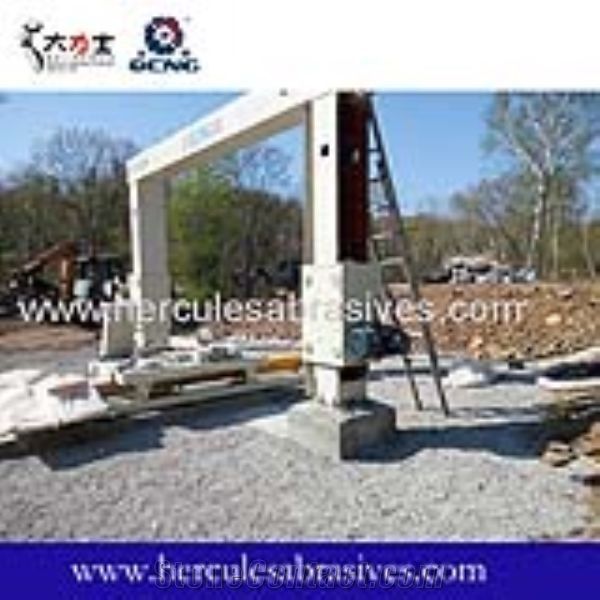

main part
¥Payment Required -

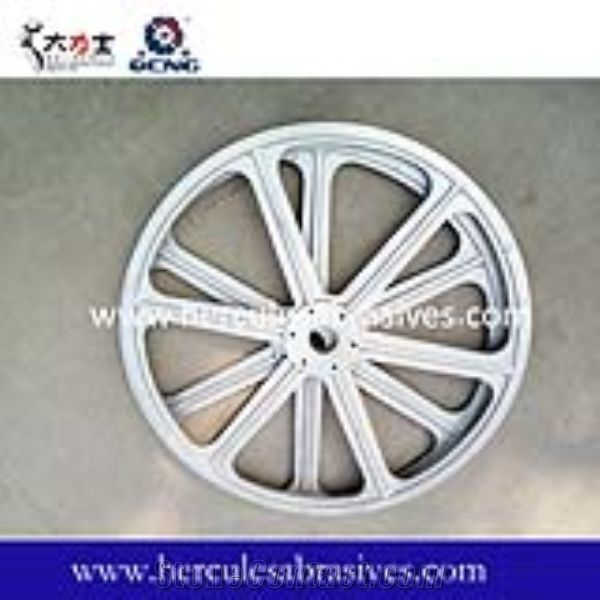

flywheel
¥Payment Required
Consumables
-

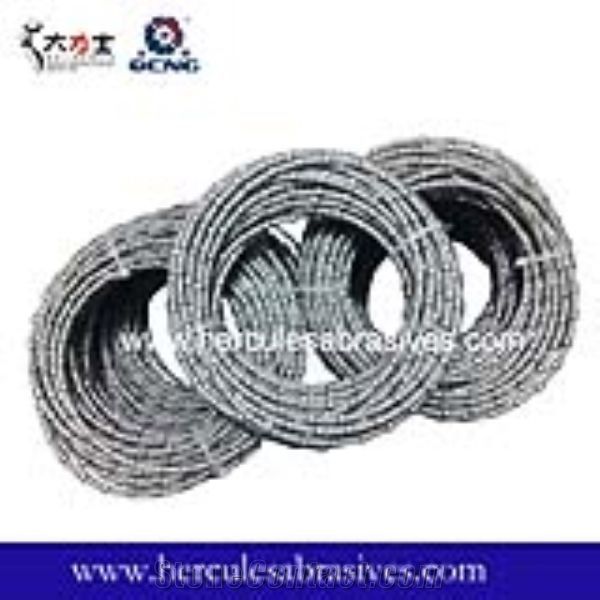

Diamond wire
8.5/8.8/10.5/11.0mm
-

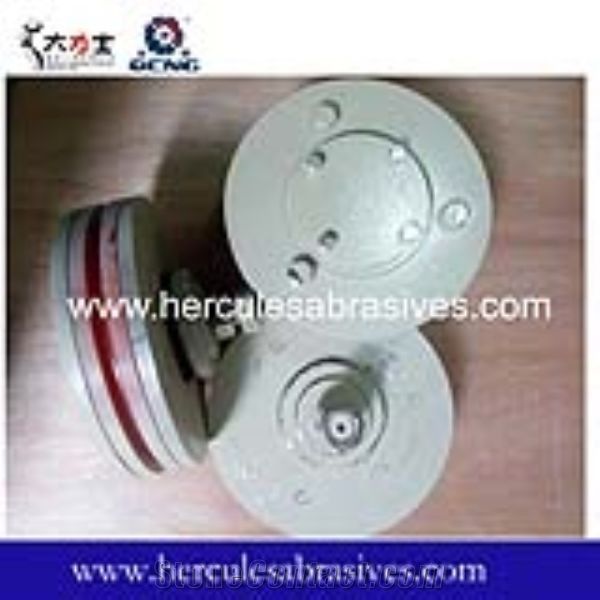

Pulley
-
Rubber belt/ring
