Stone Finishing, Profiling Machines in Spain
( 22 )
Categories:
Waterjet Machines (1)
Stone Drilling, Slot Machine (5)
CNC Working Center (6)
Leveling Machine (1)
Edge Profiling, Polishing Machine (5)
Stone Carving,Engraving Machine (2)
Stone Carving Robot (2)
Show More
Suppliers:
-
Add To CompareType: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
FOB Price:
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Quartzite, Sandstone, Travertine
Machinery Function Features:

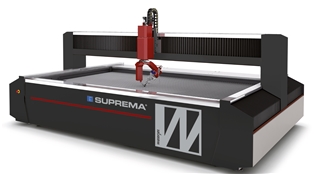

SUPREMA WATERJET
The cutting system has the following characteristics:
• Separate stainless steel tank
• 3-4-5 axis CNC
• Reinforced machined tubular steel bridge
• For those who need high dimensions, precision and speed
This 5 axis Evolution 3D cutting system automatically maintains by the Touch Wave™ sensor a constant distance between the nozzle and the material. This is also done while the cutting head is rotating. The interpolation of the axis can reach up to ± 69° in any 3D direction (optional ± 90° and infinite rotation).
Independent structure of the bridge chassis with high rigidity IPE, separate STAINLESS STEEL hub and ball circulation screws with automatic lubrication system.
SERVODRIVE™ 4,150 BARS-HYBRID (PATENTED)
SERVODRIVE™ is the innovative hybrid high-performance pressure intensifying pump (85%) up to 4,150 bars, composed of a Brushless motor that controls a PATENTED hydraulic system of progressive openings. The numerical control manages the work cycles, guaranteeing operation with energy savings of 32% compared to traditional oleodynamic intensifiers controlled by an asynchronous motor.
OPTIONAL: HYDROFINISH TEXTURING SYSTEM
The equipment is able to texture all stone materials by water only.
SHINE
Spain
INSEMAC TECHNOLOGY SL
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Finishing, Profiling MachinesStone Carving Robot
FOB Price:
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
Robotic Cell With Linear Tracking - N.3530 Robotic Cutting Machine for Kerb Stone
Characteristics palletizing robot N.3530
Total load capacity max 360 kgs.
min. format working area 300 x 300 mm
Vacuum plant 90 m3/h
Installed power 25 CV
Nodosafer
Spain
NODOSAFER SL
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Finishing, Profiling MachinesEdge Profiling, Polishing Machine
FOB Price:
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Artificial Stone
Machinery Function Features:
CANTER vertical edge polishing machine Maximum precision and quality The CANTER straight edge polishing machine is a new experience. A machine designed and built for manufactures of maximum precision and quality.
Straight edge polishing machine has been designed for doing the polishing and shining the edges of marble, granite and synthetic materials.
This new model is the first in world to be made in cast iron, the cast iron structure guarantee perfect stability that’s impossible for steel frame.
This model has 8 frontal spindles, 2 top bevelling spindles, 2 bottom bevelling spindles and group disk / water drip. With this equipment you do a big production with perfect finish.
All the spindles are independent, each spindle has his own pressure regulator, each spindle can be enabled or not to work.
Another new in CANTER, the motorized oscillation move the spindles group, 8 vertical spindles, transversally to the edge, this improve the quality of the polishing and the performance of the machine.
The adjustable spindle allow, the machine to perform various job on the stone like gauging, calibration, edge gauging, upper groove, lower groove, sloping cuts, and is able to mill shaped profiles with the apposite shaped tools.
The pressors are double shaft cylinders with 150mm of stroke. The rollers are covered with a soft anti-wear plastic material, all the rollers are completely made in plastic materials, they spin on long life lubrication bearing made in synthetic material with glass balls.
IREMAR
Spain
IREMAR
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Finishing, Profiling MachinesEdge Profiling, Polishing Machine
FOB Price:
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
Machine dimensions 3500/2400 mm
Monoboloc Machine (no need for installation work)
Total installed power 17 H. P.
Machining time 1.30 seconds
Production 40 stones / hour
Adjustable speed drive and motor side movement marble and granite work
Lateral regulation by hydraulic motors
Holding the stones pneumatica
Electronic Parts counter
Electronic indicator disc wear
The machine allows any type of curve, thanks to its template
Mecaniques Navarro S.L.
Spain
Mecaniques Navarro S.L.
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Finishing, Profiling MachinesEdge Profiling, Polishing Machine
FOB Price:
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Travertine
-
Add To CompareType: Stone Factory MachinesStone Finishing, Profiling MachinesCNC Working Center
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone, Travertine
HERSEN S.L
Spain
HERSEN S.L
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesStone Carving,Engraving Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Pantographs Sculpture Carving Machine
Ideal machine for making funeral attributes or advertising boards
Mecaniques Navarro S.L.
Spain
Mecaniques Navarro S.L.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesCNC Working Center
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
The MILLENNIUM CNC 5X Indianapolis High Production Cutter is a new concept conveyor belt cutter designed by De La Cruz Stone Technology.
It is equipped with a lifting input table through which the material will be loaded, then by means of the motors equipped in each of the tables, the loaded material will pass to the belt, placing itself exactly in the cutting area to start working. Once the cut is finished, the material will go to the output table, where the material will be removed with suction cups or specialized material. Our team of engineers and designers have worked tirelessly for years to create and refine this concept that will allow fabricators to customize machines to meet all of their future cutting needs.
Cruz CNC
Spain
Cruz CNC Technology S.A.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesCNC Working Center
Warranty: 12 Months
Usage: Granite, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
MILLENNIUM 420 CNC 4X Daytona Work Center: This is our high-end work center. A unique machine and a benchmark in the market due to its characteristics, among which stand out a robust monoblock structure, all movement systems in an oil bath and a total protection system in stainless steel.
We make the MILLENNIUM420 CNC 4X Daytona machining center in accordance with the highest quality standards for CNC machining centers, which guarantees maximum productivity and precision, high levels of finish, as well as high durability and minimum maintenance costs.
Cruz CNC
Spain
Cruz CNC Technology S.A.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesCNC Working Center
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite
Machinery Function Features:
CNC stoneworking center with reduced dimensions.
Based on HCT-A model, we create a new stoneworking center which is more compact. In this way we put forward a high quality and strong machine with the necessary dimensions so that it can be placed in smaller workshoops.
It has a warehouse which is provided with 15 tools and it also has a working surface of 2600x1450mm, so that it allows to produce the most common stones for sinks and cooking tops.
Thanks to the innovative programming system of Canigó, the software which controls the machine is based on icons so it is extremely easy to use. It is not needed a special computer knowledge.
HCT-A compact machine is the opportunity for automate any workshop without the handicap of the machine dimensions and price.
UNIVERSAL WORK CENTER model HCT-A compact
STANDARD TECHNICAL CHARACTERISTICS
MOTORS
Disk motor power................................................................................ 5,5 KW
Adjustable turning speed of the head engine...................................... 7000 rpm
HEAD
No titling head.
Cutting systems................................................................................... Drill
Systems of the tools fixation............................................................... Automatic
AXIS STROKES AND MOVEMENTS
Vertical stroke of the head (axis Z)..................................................... 400 mm
Vertical movement of the head........................................................... Automatic
Transversal stroke of the bridge (axis Y)............................................ 1450 mm
Transversal movement of the bridge................................................... Automatic
Longitudinal stroke of the bridge (axis X)............................................ 2600 mm
Longitudinal movement of the bridge.................................................. Automatic
TABLE
Useful table surface…......................................................................... 2600x1450 mm
AUTOMATISMS
Laser pointer for the positioning of the material.
Automatic system of change of tools.
STRUCTURE AND COMPONENTS
Store of tools for 15 units..
Fixation of the material through adjustable suction pads.
Centralized lubrication.
Remote control for the manual positioning of the head.
TECHNICAL DATAS
Pressure of compressed air................................................................ 6 bars
Approximate net weight of the machine and accessories................... 4000 Kg.
External sizes of the machine............................................................. 4810x2950x2920 mm
INCLUDES THE FOLLOWING SERVICES
Vacuum plant with 4 suction pads of double effect of 120 mm.
Basic kit of tools and locking cones.
Training course
Maquinaria Canigo , S . A .
Spain
Maquinaria Canigo , S . A .
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesStone Drilling, Slot Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Artificial Stone
DGF
Spain
Digafer S.A.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesCNC Working Center
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
MILLENNIUM 420 CNC 4X Daytona Jumbo Work Center: It is our high-end work center. A unique machine and a benchmark in the market due to its characteristics, among which stand out a robust monoblock structure, all movement systems in an oil bath and a total protection system in stainless steel.
We make the MILLENNIUM420 CNC 4X Daytona Jumbo machining center in accordance with the highest quality standards for CNC machining centers, which guarantees maximum productivity and precision, high levels of finish, as well as high durability and minimum maintenance costs.
Cruz CNC
Spain
Cruz CNC Technology S.A.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesEdge Profiling, Polishing Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Quartzite, Sandstone, Travertine
Machinery Function Features:
Double Head MILLENNIUM Edge Polisher performs a wide variety of edges at high speed, with low tool cost and minimal maintenance.
Modern touch screen and EasyEdge software make the use of the Double Head MILLENNIUM easy and intuitive.
The Double Head MILLENNIUM has a calibrating motor for automatic tool pressure adjustment and a polishing motor with automatic tool wear control. The machine's work table is equipped with a roller system that allows the material to rotate 360°, a pneumatic system for reliable material fixing, and an intelligent safety system.
Cruz CNC
Spain
Cruz CNC Technology S.A.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesCNC Working Center
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Artificial Stone
Machinery Function Features:
Numerical control work centre with three interpolated and controlled axes for processing marble, granite, stone and engineered stones. Particularly suitable for cutting, polishing, writing, recesses....
The Handy work centre is enhanced by its ease of use and agility in achieving perfect work.
The group electrospindle has 7.5 hp with a rotation speed of 0 - 10,000 rpm. Anchor type tool ISO 40 with stainless steel cones.
The axes X-Y-Z are powered by brushless motors and linear guides which recirculate the areas.
CAD / CAM software for all preparations, constant depth cut, contoured, intersection and writing texts highlighted with a smooth or striated finish as the customer requires.
Vacuum kit with buffers and suction for securing parts.
Automatic 14 position tool change (optional)
PC on machine with TFT 12” screen (optional)
IREMAR
Spain
IREMAR
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesEdge Profiling, Polishing Machine
Warranty: 12 Months
Usage: Granite, Marble, Artificial Stone
Machinery Function Features:
Thought out to the minutest detail, it can polish straight edges measuring 1 to 6 cm in granite, marble and synthetic materials. Obtain high performance with compact size. It requires no large facilities, and its monoblock structure is equipped with a water channelling and drainage system, to keep the workstation clean.
Sturdy structure in machined hot-galvanised structural steel
Maximum precision with excellent corrosion resistance
Stainless steel guarding and screws
A guarantee in the face of the demanding conditions of use to which this type of machine is exposed
Heads protected by stainless steel fenders
Zero leakage
Warning of end of abrasive; the machine stops automatically, avoiding damage to abrasion plates
Electronic regulation of belt movement
Can deal with different types from material
Computerised control of heads with interactive reading of the position of the material. The machine reads the piece on entry and communicates the dimensions to all the heads. This system allows the total polishing of out-of-square pieces and avoids breakages.
Guarding conforms to EC standards
Two pistons per head Drip cutting unit Disk may be installed. Rotation 0-90o, cuts at 0o, 45o and 90o. Motor power: 5.5 hp Polishing heads Each with 2 hp of power. Can be used with abrasive or diamond without shortening the useful life of the motors. The heads are driven pneumatically. Two pistons per head for maximum precision. The first head has a mechanic stop block allowing the use of metal diamond crown bits. Bevellers Each with 2 hp of power. Driven pneumatically by double pistons. The machine can be configured with 2 or 3 bevellers. Technical Characteristics: Polishing heads 6 - 7 Upper beveller 1 - 2 Lower beveller 1 Drip cutting unit / disc 1 Total power requirement 20 - 23 Kw. Dimensions 3500x1400x2200mm.
Does not include material entry and exit tables. Standard tables measure 1,000 mm. Weight 1800 – 2300 Kg.
IREMAR Innovation And Service
Spain
IREMAR Innovation And Service
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesLeveling Machine
Warranty: 12 Months
Usage: Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
Thanks to its special features and the manufacturer′s quality and guarantee, Bevelling machine GR-CH is a highly versatile and effective device.
The two 10hp engines equipped with discs of 350 or 450mm, can be rotated up to 90 degrees, allowing us to cut single or double mitres on any possible angle.
With horizontal discs we can bevel the edge or cut tiles in two
Garcia Ramos
Spain
Garcia Ramos
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesStone Drilling, Slot Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Slot/Kerf and drilling machine for cladding products KERF-2
Ref. 8503
The KERF-2 machine grooves and perforates coating products. It can have different finishes such as:
Kerf I continue
Kerf Reduced
Slot
Vertical drill
Horizontal drill
Incision
HERSEN S.L
Spain
HERSEN S.L
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesStone Drilling, Slot Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite
Machinery Function Features:
Machine that allows to obtain holes and cuts with great flexibility. Ref. 8502
Machine for cladding KERF-1000
Ref. 8502 Technical characteristics:
The main feature of the KERF-1000 coating machine is the extreme flexibility in processing that allows to obtain holes and cuts, depending on the configuration required by the customer.
The different types of finish for each anchor can be obtained with a single machine:
Kerf, Slot cutting and drilling
HERSEN S.L
Spain
HERSEN S.L
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesStone Drilling, Slot Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
New Groover CNC of 12 axes for ventilated facades
HERSEN designs and manufactures special machinery, made to measure, for Large Format Porcelain, Porcelain Stoneware, Sintered Stone, Solid Surfaces, marbles and granites.
This automatic slotting machine makes incisions on the back of the pieces for the placement of the fixing system. In this case, for the STRONGFIX anchoring system. It is a 45 degree double groove in the shape of a dovetail. The aluminum profiles are inserted into these grooves and fixed to the piece with putty.
HERSEN has designed a router that performs a clean and precise cut, obtaining precise and defined incisions. It can slot parts from 100mm to 1600mm wide, which allows ENTIRE BOARDS to be slotted.
The material to be grooved enters through a motorized roller bed, and a controlled mobile guide correctly aligns the material before entering the machine and the heads begin to groove.
It is built with 6 motors installed on 3 bridges. Each bridge has an independent cutting head, composed of two motors with two discs, in this way it is possible to make 3 pairs of grooves at 45º at the same time and separated from each other to any size.
It performs the grooving both continuously and discontinuously. This discontinuous grooving makes it possible to groove parts where windows, doors or corner joints go without the grooving cut being seen by the edges. What makes the façade aesthetically improve and does not weaken the pieces by making unnecessary cuts.
It is also possible to build the machine for the transverse grooving of the board.
It has been equipped with an automatic control and measurement system for the wear of the diamond blades and the depth of the grooves to always obtain the desired measurement of the grooves. Another system automatically fans the diamond blades, optimizing the number of meters of cut and always allowing a clean cut in the incisions.
It has been implemented with custom made software to be able to manage the work orders and breakdowns of the architects. In this way, the execution of the pieces can be managed both from the machine and from the technical office. In this way, the pieces that are being made of each project and each facade are controlled at all times, as well as the pieces that still need to be done.
HERSEN S.L
Spain
HERSEN S.L
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesStone Carving,Engraving Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Artificial Stone
Machinery Function Features:
Plotter with numerical control for reproducing photographic images on marble, granite, glass, etc ...
The XY axis movements is performed by stepper motors for precision racks and recirculating ball-bearing linear guide.
Regulating the thickness of the material, Z axis is manual with wheel.
The machine is equipped with management software in Windows environment for the reproduction of Bitmap images.
IREMAR
Spain
IREMAR
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesStone Carving Robot
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Robot for finishing and palletizing with articulated vacuum suction cup for granite curbs.
It is made up:
Robot mod. KR-360.
Chamfering group, disc housing, water diffuser, etc.
Flame torch, regulators, valves, etc.
Vacuum group, with pump, tank, suction cup, valves, etc.
Electrical panel, and control panel with touch screen.
Belt feeding table.
Curb bumping and squaring device.
Turning table for the elaboration of curbs.
Security fencing to limit access to the mobile part of the machine.
The Robot is specially designed to carry out automated tasks in the performance of curb finishing tasks, milling of edges or rounding, flaming of faces and their subsequent palletizing, based on the same operating principles applied in standard Nodosafer machining and palletizing, and offers multiple advantages: optimization of work processes, reduction of cycle times and efficient use of downtime, etc.
On the wrist of the Robot, a compact and specially designed head is implemented, on which the milling motor group is supported, the torch for flaming, as well as a suction cup for handling.
The reception suction cup, also of a particular design, is made up of a rectangular plate, capable of supporting horizontal loads of up to 160 kg.
The motorized belt table, located at the entrance of the Robot, constitutes the feeding point to the treatment unit. In addition, it acts as an intermediate warehouse to guarantee the fluidity of the work cycle and minimize downtime for the entire line. It basically consists of a frame based on steel profiles on which the roller shafts rest.
All the wheels are frictioned to thus facilitate the synchronism of the advancement speeds of the tiles throughout the line.
A double device for bumping and squaring located on the band table, allows the positioning and control of the curbs before they are received by the robot.
The turning table for the elaboration of the curbs is located in the work area of the robot and allows to greatly reduce the time during the elaboration process.
The work area is protected, limiting access to risk areas by means of protection fences and photocells, to avoid any risk of accident.
The programming and the work sequence is variable and parameterizable, it is done by selecting from the control panel.
Nodosafer
Spain
Nodosafer S.L.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesStone Drilling, Slot Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Artificial Stone
Machinery Function Features:
Drilling machine conceived to drill material pieces sides.
It enjoys an innovative design. It is an extremely practical and easy to use model as well as effective and low-cost.
The two headstocks, which self-support the bits and the stops, make the different pieces and structure size regulation faster. The structure is assembled onto four wheels so that it is easer to move.
It can drill a great variety of shapes and it can even spontaneously replace the bit for a small disk. This way can also drill horizontal slots.
Sensational machine in the drilling machines market.
CANIGO
Spain
MAQUINARIA CANIGO, S.A.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Quartzite, Sandstone, Travertine
Machinery Function Features:
SUPREMA WATERJET
The cutting system has the following characteristics:
• Separate stainless steel tank
• 3-4-5 axis CNC
• Reinforced machined tubular steel bridge
• For those who need high dimensions, precision and speed
This 5 axis Evolution 3D cutting system automatically maintains by the Touch Wave™ sensor a constant distance between the nozzle and the material. This is also done while the cutting head is rotating. The interpolation of the axis can reach up to ± 69° in any 3D direction (optional ± 90° and infinite rotation).
Independent structure of the bridge chassis with high rigidity IPE, separate STAINLESS STEEL hub and ball circulation screws with automatic lubrication system.
SERVODRIVE™ 4,150 BARS-HYBRID (PATENTED)
SERVODRIVE™ is the innovative hybrid high-performance pressure intensifying pump (85%) up to 4,150 bars, composed of a Brushless motor that controls a PATENTED hydraulic system of progressive openings. The numerical control manages the work cycles, guaranteeing operation with energy savings of 32% compared to traditional oleodynamic intensifiers controlled by an asynchronous motor.
OPTIONAL: HYDROFINISH TEXTURING SYSTEM
The equipment is able to texture all stone materials by water only.
SHINE
Spain
INSEMAC TECHNOLOGY SL
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesStone Carving Robot
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
Robotic Cell With Linear Tracking - N.3530 Robotic Cutting Machine for Kerb Stone
Characteristics palletizing robot N.3530
Total load capacity max 360 kgs.
min. format working area 300 x 300 mm
Vacuum plant 90 m3/h
Installed power 25 CV
Nodosafer
Spain
NODOSAFER SL
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesStone Carving Robot
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Robot for finishing and palletizing with articulated vacuum suction cup for granite curbs.
It is made up:
Robot mod. KR-360.
Chamfering group, disc housing, water diffuser, etc.
Flame torch, regulators, valves, etc.
Vacuum group, with pump, tank, suction cup, valves, etc.
Electrical panel, and control panel with touch screen.
Belt feeding table.
Curb bumping and squaring device.
Turning table for the elaboration of curbs.
Security fencing to limit access to the mobile part of the machine.
The Robot is specially designed to carry out automated tasks in the performance of curb finishing tasks, milling of edges or rounding, flaming of faces and their subsequent palletizing, based on the same operating principles applied in standard Nodosafer machining and palletizing, and offers multiple advantages: optimization of work processes, reduction of cycle times and efficient use of downtime, etc.
On the wrist of the Robot, a compact and specially designed head is implemented, on which the milling motor group is supported, the torch for flaming, as well as a suction cup for handling.
The reception suction cup, also of a particular design, is made up of a rectangular plate, capable of supporting horizontal loads of up to 160 kg.
The motorized belt table, located at the entrance of the Robot, constitutes the feeding point to the treatment unit. In addition, it acts as an intermediate warehouse to guarantee the fluidity of the work cycle and minimize downtime for the entire line. It basically consists of a frame based on steel profiles on which the roller shafts rest.
All the wheels are frictioned to thus facilitate the synchronism of the advancement speeds of the tiles throughout the line.
A double device for bumping and squaring located on the band table, allows the positioning and control of the curbs before they are received by the robot.
The turning table for the elaboration of the curbs is located in the work area of the robot and allows to greatly reduce the time during the elaboration process.
The work area is protected, limiting access to risk areas by means of protection fences and photocells, to avoid any risk of accident.
The programming and the work sequence is variable and parameterizable, it is done by selecting from the control panel.
Nodosafer
Spain
Nodosafer S.L.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesEdge Profiling, Polishing Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Quartzite, Sandstone, Travertine
Machinery Function Features:
Double Head MILLENNIUM Edge Polisher performs a wide variety of edges at high speed, with low tool cost and minimal maintenance.
Modern touch screen and EasyEdge software make the use of the Double Head MILLENNIUM easy and intuitive.
The Double Head MILLENNIUM has a calibrating motor for automatic tool pressure adjustment and a polishing motor with automatic tool wear control. The machine's work table is equipped with a roller system that allows the material to rotate 360°, a pneumatic system for reliable material fixing, and an intelligent safety system.
Cruz CNC
Spain
Cruz CNC Technology S.A.
Contact Supplier
- 1
Have a Question? Ask our expert
Ask now
