Stone Tile Cutting Machines
( 654 )After the large stone blocks are cut into 2 or 3 cm wide sheets, they need to be cut into various sizes according to your project. Sometimes these sizes are standard, sometimes they just need to be cut to the sizes your project requires. Cutting Natural Stone slabs to desired sizes is not easy to standard and requires high-tech machinery to do it accurately. It is easy to find stone tile cutting machines of all models and prices related to these works in the Stonecontact.com global stone portal. Stonecontact.com website has all kinds of brands and models of stone tile cutting, chamfering, polishing machines. Therefore, if you need a new stone tile cutting machine, it is inevitable that you will encounter many options. There are CNC machining centers, wire saws and many more type machines for cutting, shaping, edge profiling and grinding stone.
More Hide-
Add To CompareType: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
FOB Price:
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Mounted on a steel chassis, machine has a closed railing with lubrication system. Makes accurate and sensitive cutting works of given dimensions, by using both moving speed control and cutting speed control.
Desired dimensions of the stone are valued to the analog screen and machine is taken to the mode of Cutting Dimensions. Crank of saw moves down and the carriage wagon moves automatically, starts to cut stone. When the carriage comes out from the stone, saw automatically moves to upwards. Carriage wagon comes to the starting point again. Tower motor counts to the required value and saw crank comes downwards again and starts to cut again. Cutting work keeps repeating like this way till the ending point.
In cutting direction, main saw cutting speed and carriage wagon speed can be adjusted to desired value. At the end of cutting point speed is steady to fast move.
Our side cutting machine is built on totaly steel construction. Anti-rust epoxi paint reinforcements, special transmission closed railing system is strengthened wit waterproof coverings.
Cutting system works with the help of 90 degrees and 45 degrees gearboxes.
Flat watertight motor models are used on our machine. Head movements are accurate and sensitive for quality of cutting works
Our side cutting machine is designed for both side cutting works and side trimming.
Rotation move of main head of the machine ( C axis ) is manual.
45 Degrees Move is manual by gearbox.
Sliding ways Moves ( Y axis ) automatic and manual.
Carriage wagon Moves ( X axis ) automatic and manual.
Can be operated both automatically and manually.
Head system makes cutting 0 – 90 degrees, steady at 45 degrees.
With the help of gearboxes speed controlled, machine makes cutting works automatically.
Information about the materials that used on the machine
Electric Motors : Gearboxes
* Motored gearbox for Sliding Ways (Gearbox 0,75 gamak motored gearbox)
* Motored gearbox for Piston Sliding (Gearbox 0,75 gama motored gearbox)
* Motored gearbox for carriage wagon moves (Gearbox 0,75 inter motored gearbox)
* Gearbox for 45 degrees cutting moves (Volant/Gearbox)
* Flat watertight Motor for marble and granite cutting works ( 9,3 kw 1500 / 3000 dual rounded köylüm motor)
Movement / Walking Systems:
* 0,5’’ steel sprocket mechanism for carriage wagon movement
* Head cutting movement system with the help of trapeze.
* Cable carrying systems are applied on functionality of sliding ways movement.
* Carriage wagon Closed sliding way walking equipment is provided with transmission crank.
Steel Construction of the Machine
*Side cutting machine is steel monoblocked and massive.
* Chassis is built up on material of 320 NPLU.
* Carriage wagon is designed from material of 80 X 20.
* Carriage awagon also has a steel chassis and processed on CNC machinery for 6 axises.
* Back tower is built from 10 mm massive sheet metal, designed to reduce the vibration of the machine.
* Upper sliding ways are processed on CNC machinery from 10 mm massive sheet metal with 8 mm between grid.
* Wagon parts , wagon wheels are founded from şifero gg50 alloy for resistance of wear.
* Piston System is massive steel thick pipe.
* All head cutting group parts are cleared on milling machine.
* Head group parts are covered with anti-corrosion and rust components.
……..……..THE OPERATING PROCEDURE OF THE MACINE………………
The periodic maintenance of the machine has to be done daily, weekly and yearly.
Lubrication of critical parts of the machine has to be done regularly. ( like hubs of the pressure wheels, sliding ways, motor lubricating pump, etc…)
In case of any problems resulting from any weak or none maintenance, buyer firm pays for repairing and fixing expenses.
Our company provides technical support as soon as possible depending on the conditions.
In case of any faults depending on user or wrong operating, any intervention will be executed after an expert examination on the machine.
It is under warranty in period of 1 years.
It is buyers duty to supply cutting saws on the machine.
Consumable parts of the machine are not included to the warranty. (like cutting saws)
Accomodation and transportation expences of installation crew, belongs to buyer firm.
…..….THE ACTS THAT YOUR SIDE HAVE TO DO ON STAGE OF INSTALLATION…...
To supply 13 kw electricity to near the fuse panel of the machine, an electrician is needed on setting up for cable connections.
To supply water plumbing near machine.
It is needed to supply the cutting saws on the installation.
The place needed for machine install : 7000 mm X 3000 mm X 2500 mm (height)
One tin of machine oil (number 30) , one tin of Grease oil.
Marble Side Cutting
Som-maK
Turkey
Som-maK Mermer Granit Makina Ltd Sti
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
FOB Price:$9000-20000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Artificial Stone, Quartzite, Sandstone
Machinery Function Features:
Specifications
1. Wet type mosaic cutting machine is suitable for cutting big floor and wall tiles into narrow, square and diamond forms.
2. Wet type mosaic Cutting Machine also can cut tiles into many small ones with different width at one time.Wet type mosaic cutting machine cut wall & floor tile, high cutting efficiency
3. Wet Type Mosaic Cutting Machine is cutting big wall and floor tiles into small ones including mosaic. The processing width of wet type ceramic tile Cutting Machine is 25-600mm.
4. Wet type mosaic Cutting Machine also can precut tile first and then cut off at last.
5. Due to reasonable design and high working precision, it has the advantage of high cutting efficiency, high precision and high production.
Applications:
Shaft Cutting Machine is suitable for cut or slotting floor tile and stone, It can cut tile into narrow, Square, Diamond and so on. Can process the tile from 25-600/800mm or 1000/1200 to different size in one time. The characteristic of this machine is high accuracy, Low broken, Big output.
Feature
1. The bearing in bearing box is use water-cooling device to make the bearing not hot after long time use, Delay the bearing is life.
2. Use high quality bearing supporting the front and behind of the main shaft to make the shaft drive with more high precision.
3. Add manual adjust device in the operative panel to make is driver it more easy.
4. Cantilever type structure make the machine drive steady with low failure rate.
CKD
China
FOSHAN CHUANGKINGDA MACHINERY CO.,LTD
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
FOB Price:
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:

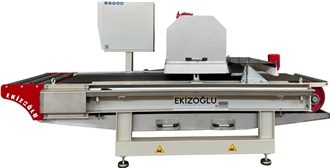

EM14 Multi-Disc Cutting Machine for Granite & Basalt
• Belt Width: 700 mm
• Working Width: 650 mm
• Working Thickness For Basalt: 10 – 150 mm
• Working Thickness For Granite: 10 – 100 mm
• Number Of Heads: 1
• Diameter Of Disc: 500 – 600 mm
• Cutting Motor Power *Optional: 30 kW
• Up – Down Motor Power: 0,75 kW
• Belt Motor Power: 0,75 kW
• Belt Speed: 3 mt / min
• Water Consumption: 125 lt / min
• Total Electric Power: 32 kW
• Machine Dimensions ( W / L / H ): 2650 / 3500 / 2000 mm
https://ekizoglumakina.com/en/product/multi-disc-cutting-machine-for-granite-basalt
Ekizoglu
Turkey
Ekizoglu Makina
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
FOB Price:$12500-16000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite, Sandstone
Machinery Function Features:

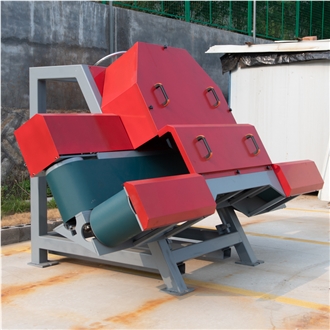

The mighty stone saw (30 horsepower) model is compact, portable, and lighter - making the task of hauling much easier. This model comes with a smaller and faster 30 in. Blade for quicker cutting of your everyday stones. Effectively changing the stone cutting industry,
this mighty stone saw has been designed to be safe, sturdy and simply low maintenance. Every aspect-from components to assembly-was designed to fit all the below criteria and do it at a reasonable price.
BESTLINK
China
XIAMEN BESTLINK FACTORY CO., LTD.
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
FOB Price:$8000-9000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
SQA-600 Hand Swaying Edge Cutting Machine uses jointed structure; the main head can rotate 180 degree and electric up and down.The whole machine has compact structure, fine appearance, stable functions and high processing precision, which suit for edge cutting and milling of small slates, lath and thick ties.
JULUN
China
FUJIAN NANAN JULUN MACHINERY CO., LTD.
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
$1000-3000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
This machine is an automatic control stone cutting machine. It is designed to provide professional cutting effects for all kinds of stones, ceramics and bricks. This machine is with simple but steady structure, built-in water pump for dust free operation, easy installation and operation without site restriction. Auxiliary work table on both sides enhanced machine extensibility. Solid bearing steel guide rail ensures high performance and precision. Stainless steel work table and thickened machine body guarantee durability and long service life. Wide range cutting purposes and 45 degree bevel cutting effect made this machine the best solution for small and medium cutting requirements.
Faithful Machinery
China
Quanzhou Faithful Machinery Co.,Ltd
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
The machine is used to make lenght sizing of the tiles and Strips.
Precision of the machine +- 0,20 mm
Zimek
Turkey
Zimek Machine Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
$5000-500000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Sandstone
Machinery Function Features:
Hydraulic Natural Stone Splitting machine
It suitable for splitting all types of natural and artifical stones, used for the production of large and small materials for mosaic and stone flooring. And characterized by high reliability and easy handling, every splitting machine can be integrated in a production line, especially designed according to your needs.
BESTLINK
China
XIAMEN BESTLINK FACTORY CO., LTD.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
$5000-30000
Warranty: 12 Months
Usage: Granite, Marble, Artificial Stone, Basalt, Quartzite, Sandstone
Machinery Function Features:
1.It suitable for splitting all types of natural and artifical stones, used for Cobble stones, Paving stones,
Tiles for paving and cladding, Wall stones and Kerb stones, etc.
2. The hydraulic system and electrical system used high quality and reliable components.
3. Our splitting machine is high speed, good quality, low consumption.
XinAn Machinery
China
Fujian XinAn Machine Co., Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
$17500-27000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
PLC400 /PLC600 laser bridge cutting machine is to cut the slab into required standard size slab accrately.
PLC700 is an improved series laser bridge cutting machine with cutting head available to title 45 degrees
WANLONG PLC series laser bridge cutting machines are quite suitable for high-valued and large size natural stones cutting and processing.
Stone available to process: granite, marble, limestone, travertine, basalt, sandstone, soapstone, etc.
WANLONG
China
FuJian WanLong Diamond Tools CO,.LTD
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
EM04 Hydraulic Mosaic Stone Crushing Machine
• Working Width: 10 – 70 mm
• Working Height: 20 – 100 mm
• Working Length: 10 – 300 mm
• Belt Width: 75 mm
• Belt Motor Power: 0,37 kW
• Hydraulic Motor Power: 4 kW
• Hydraulic Tank Capacity: 60 lt.
• Working Pressure: 110 bar
• Machine Dimension ( W / L / H ): 1400 x 1100 x 1100 mm
• Automatic Crushing Control With Sensor
Ekizoglu
Turkey
Ekizoglu Makina
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
$20000-30000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Artificial Stone, Quartzite
Machinery Function Features:
1.It suitable for splitting all types of natural and artifical stones, used for Cobble stones, Paving stones,
Tiles for paving and cladding, Wall stones and Kerb stones, etc.
2. The hydraulic system and electrical system used high quality and reliable components.
3. Our splitting machine is high speed, good quality, low consumption.
XinAn Machinery
China
Fujian XinAn Machine Co., Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
$3200-8000
Warranty: 12 Months
Usage: Marble, Limestone, Quartzite, Sandstone, Travertine
Machinery Function Features:
As a leading factory for waste slab and block processing, Bestlink has supplied the professional stone machines to many countries, like USA, Norway, Egypt, Brazil, India, Russia and Mexico, etc. From the feedback from our clients all of the world, the quality of the machines from Bestlink is getting better and better, and more and more clients are gonna to have the stamping machine and splitting machines.
This machine helps to pare the 4 edges of slate and sandstone into mushroom face, for slate, sandstone, marble.
BESTLINK
China
XIAMEN BESTLINK FACTORY CO., LTD.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
$23000-24000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite, Sandstone
Machinery Function Features:
High efficiency for cutting slab & tile, stable and reliable
Feature
1. Wide bridge structure with crossbeam, large size of slab cutting available
2. Equipped with infrared device, precise cutting location reachable
3. Dustproof design of the slide track ensures the precise guide movement & long lifespan
4. Worktable can tilt & rotate in wide angle for special processing
5. PLC control system, programmable, fully automatic & smooth feeding
6. Precise movement of head in X, Y, Z directions by rack & gear
7. Electric parts of Japanese name brand adopted, reliability guaranteed
8. Touch-sensitive operating system, friendly human-machine interface design
9. CE certificate
The crossbeam is made of strong cast iron to avoid distortion after long run
Guide rail is oil impregnated and protected from water and dust
Vertical movement of machine head is driven by hydraulic system, and the stroke is adjustable
Horizontal movement of the crossbeam is driven by motor equipped with OMRON rotary encoder by which the precision is guaranteed
Worktable can tilt 0-85° , and rotate 0-360° .
Equipped with Panasonic frequency transducer and OMRON PLC, programmable and fully automatic
Lead Time: 30 days after receipt the down payment.
WANLONG
China
FuJian WanLong Diamond Tools CO,.LTD
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Basalt, Quartzite, Sandstone
Machinery Function Features:
The Menhir machines are our most powerful splitting Steinex machines, splitting very large stones with great accuracy. These splitting machines have been installed in countries all over the world and have become a fundamental machine in the quarries and stone processing facilities of many of our customers
Machinery in the Menhir range is mainly used as a primary machine in a splitting line producing semi-finished split stone or as a machine producing final products such as large kerb stones and large wall stones.
Menhir machines are used to split granite, limestone, sandstone, slate, porphyry and many other types of natural stone. Blades range from lengths 1000 mm to 1600 mm with splitting pressure from 220 ton to 640 ton depending on the customer’s product requirements and the properties of the stone being split
These resilient machines are used to split both raw material and sawn slabs. The non-sawn stone includes stone quarried in blocks or very irregular natural stone quarried using explosives. The Menhir machines are equipped with high levels of adaption in the blade system and designed with a pivoting blade head to make splitting such irregular material efficient, giving a high quality split surface finish and leaving minimal waste. Each machine is equipped with a highly efficient low noise hydraulic and power unit. The hydraulic unit comes with a several pump configuration options, including the possibility to adjust the speed at which the machine blade begins to apply pressure to the stone and the desired eventual” ramp” or split pressure plan the follows. Being able to set these splitting parameters on the Menhir splitting machine allows our customers to optimize the quality of the split face according to the properties of their stone.
The Menhir splitting machines come with an extensive range of options including conveyors, block loaders, manipulators, remote control consoles and several different hydraulic configurations depending on the customers requirements.
Steinex
Italy
Steinex S.r.l
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
$100000-101500
Warranty: 12 Months
Usage: Granite, Marble, Slate, Artificial Stone, Sandstone
Machinery Function Features:
Marble Granite Stone Guillotine Hydraulic Stone Splitting Machinery
BESTLINK
China
XIAMEN BESTLINK FACTORY CO., LTD.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
Saw Elec. Motor : 22 kwa 6pcs
Saw Elec. Motor : 18.5 kwa 2 pcs
Conveyor Belt Engine : 0.37 kwa 1 Piece
Bridge Lifting motor : 1.5 kwa 1 Piece
Saw (No: 1 - 2) : 625 mm 2 Pcs
Saw (No: 3 - 4) : 650 mm 2 Pcs
Saw (No: 5 - 6) : 650 mm 2 Pcs
Saw (No: 7 - 8) : 850 mm 2 Pcs
Bridge movement : Manual and Elec. Engine with (Digital)
Ozteknik Makine
Turkey
Ozteknik Makine
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Quartzite, Sandstone
Machinery Function Features:
Cut stone slabs splitting machine
more info at: http://gestracz.com/our-machines/cut-stone-slab-splitters/
Gestra CZ s.r.o.
Czech Republic
Gestra CZ s.r.o.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
$4808-
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Basalt, Sandstone
Machinery Function Features:
motor 2,9 KW, 400 V, 2,800 rev. / min
with special earthing switch and 3 m
Special connection cable with plug
water pump with a capacity of about 40 W
the space between the motor base and table approximately 145 mm
the ability to connect from 1 to 4 auxiliary side tables
maximum cutting length of 200 cm
dimensions 275x87x74
weight 270kg
Optionally can be mounted
auxiliary table-sided in 3 dimensions
gauge with a scale
*** Cena netto: PLN 14.160,00 -dostawa z fabryki do odbiorcy w Polsce
Porsfeld Lukasz Pikul
Poland
Porsfeld Lukasz Pikul
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone, Travertine
Kamhan Industrial Limited
Pakistan
Kamhan Industrial Limited
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Artificial Stone
Machinery Function Features:
Machine with carriage structure for wet cutting of poroton, stones, tuff, brick and concrete artifacts.
Equipped with a 400V 5,5HP multiple-phase engine.
GHELFI SRL
Italy
GHELFI SRL
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Artificial Stone
Machinery Function Features:
The powerful Abaco Site Saw Mod S2 is ideal for construction sites and workshops. On one side the saw has roller conveyers which make loading easy, while on the other side adjustable stops make exact parallel cuts. This precision saw has a cutting length of 1.8yd ( 1.65m). Incorporated in this machine are wheels and rollers for effortless single-handed transportation.
The Mod S2 features an electric direct drive fully submersible water pump capable of pumping 1000L/hr. The Abaco Mod S2 accessories include 2 side benches with rollers and two support arms with stops
Abaco Machines
Viet Nam
Abaco Machines
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
STONE SPLITTING MACHINE 25 TO 150T
FUNCTION
Processing
Portugal
Fravizel - Equipamentos Metalomecanicos, S.A.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Artificial Stone
Machinery Function Features:
MANUAL SAW BASIC 101
A one piece self-contained cutting machine. Very dynamic and table to drill with all types of work.
The cutting table can be adjusted manually (option available of using a motor). It is guided on lubricator rails which protects if from any bust generated.
The cutting head can be moved up and down, also optional screen available.
IREMAR Innovation And Service
Spain
IREMAR Innovation And Service
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Quartzite, Sandstone, Travertine
Machinery Function Features:
The metal belt ensures long life, high performance and excellent precision both in straightness and measurements.
The GR-MD600 machine is equipped with 2 sets of discs to allow a change of width reducing downtime to a minimum.
he multidisc GR-MD600 allows to cut marble tiles between 20 and 60mm thick. The disc axle is equipped with a measurement system to adjust the depth of the cuts which
may vary from an entire cut to a millimetre cut.
Garcia Ramos
Spain
Garcia Ramos
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Quartzite, Travertine
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Artificial Stone
Machinery Function Features:
HPO-Bridge Cutter
Portable cutter
It allows cutting pieces in a very fast and easy way.
A steering wheel is manually used to make the table work. This table is provided with mechanical stops in order to guarantee the cut pieces facing.
Different models depending on the disk sizes and the needs of the kind of cut.
CANIGO
Spain
MAQUINARIA CANIGO, S.A.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
$3768-3769
Warranty: 12 Months
Usage: Granite, Marble
Machinery Function Features:
This mechanical product is mainly used for stone splitting and stone stamping
Kingshun Machinery
China
Xiamen Mastone Equipment Co.,Ltd
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
$11027-12422
Warranty: 12 Months
Usage: Granite, Marble
Machinery Function Features:
This mechanical product is mainly used for natural face splitting and saw cut face splitting
Kingshun Machinery
China
Xiamen Mastone Equipment Co.,Ltd
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Sandstone, Travertine
Machinery Function Features:
Precision sizing, serial production machine.
Voltage : 380
YMS YILDIRIM MAKINE
Turkey
YMS YILDIRIM MAKINE
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
$6300-6400
Warranty: 12 Months
Usage: Marble, Limestone, Quartzite, Sandstone, Travertine
Machinery Function Features:
MK 25OO is multi purpose designedfor to be used in every construction yards.
MK serie is portable with all parts demountable.
Main frame of the machine is the water tank.
By the help of recycling system, pulverized water allows fast and easy cutting and prolongs the diamond saw life.
Between 90° and 45° cutting and groowing feature.
SEN-MAK Koll.
Turkey
SEN-MAK Koll.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Sandstone
M.A.Y. Ucler Makine
Turkey
M.A.Y. Ucler Makine
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
$4500-5000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
This machine is for cutting and chamfering slab. used jointed structure;the main head can rotate 45 degree and be electrically moving up and down.the whole machine has compact structure,fine appearance,stable functions and high processing,which suits for edge cutting and milling of small slates,lath and thick tiles.
KAIDA
China
Fujian Province Kaida Stone Machinery Co.,Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
$5000-
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Quartzite, Sandstone, Travertine
Machinery Function Features:
E-22/23/24 Stone Edge Cutting Machines
Sigma Machine Tools
India
Sigma Machine Tools
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
$16000-17000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Stone Slicing machine: the rotating flywheel drives the saw blade to run at high speed to saw and process the stone. The feeding of the processed parts adopts a flat belt transmission mechanism with frequency conversion speed regulation. Different processing speeds can be set according to different materials of the processed parts; the belt table can be raised and lowered , used to adjust the cutting thickness.
The saw blade adopts a mechanical + hydraulic combination mechanism for constant pressure tension, and the platform lift uses an encoder for data collection to automatically control the lift stroke through PLC. The flywheel has undergone dynamic balancing processing, and the whole machine runs smoothly.
The active and passive flywheels use large ball self-aligning bearings, which are durable. The protective cover is made of stainless steel and the surface is painted. Each power: 8.5KW, water consumption: 1m³/H
Faithful Machinery
China
Quanzhou Faithful Machinery Co.,Ltd
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
$10000-15000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Quartzite, Sandstone, Travertine
Machinery Function Features:
Main motor 30HP and 60HP for choice
Blade speed adjustable
Belt speed adjustable
Return Conveyor is an optional
XinAn Machinery
China
Fujian XinAn Machine Co., Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
H600-CP / H600-L Single Blade Automatic Step Cross Cutting Machine
Cross cutting machine with single blade, transport belt and automatic multiple pass.
H600-CP cross cutting machine allows multiple pass cutting of hard and thick material up to 100mm(or up to 200mm in the H600-L version), guaranteeing at the same time the possibility of single pas cutting.
HERSEN S.L
Spain
HERSEN S.L
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
$3000-8500
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Basalt, Sandstone
Machinery Function Features:
Perfect for cutting sandstone, slate and marble to mushroom finish. Very easy to operate, we supply video. The mushroom stone processing machine are designed by ourselves proprietary intellectual property rights. Work fast for stone and suitble for stone processing factory. So far, all our clients give us high High evaluation and good feedback.
BESTLINK
China
XIAMEN BESTLINK FACTORY CO., LTD.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Sandstone
Machinery Function Features:
Manual side cutting machines perform the function of dimensioning the marbles placed on the table. The lower table is manually guided by the user to enable cutting. Our standard 3.5 meter length machines can be manufactured in any desired size for serial production lines. -
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
$4500-5000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
This machine is for cutting and chamfering slab. used jointed structure;the main head can rotate 45 degree and be electrically moving up and down.the whole machine has compact structure,fine appearance,stable functions and high processing,which suits for edge cutting and milling of small slates,lath and thick tiles.
KAIDA
China
Fujian Province Kaida Stone Machinery Co.,Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
This machine is used to cut the edges of stone tiles up to 85cm (width), and its available with 2, 3 & 6 cutting heads in order to process all the standard sizes of stone with very high size accuracy and productivity.
Jordan
Ahmad Zaidan Sons & Co.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Bridge saw AFR A-ZM 1500 mm
The universal bench saw for professional use. Pleasant handling due to the automatic feed.
Powered feed
Voltage 400 Volt
Motor: 3,6 kW / 2800 rpm
Max. Dia blade 350 mm
Max. Cutting depth with 350 mm blade: 120 mm
Possibility to tilt the bridge for 45 degree cuts
Drill attachment: 25.4 mm
Germany
Weha Ludwig Werwein GmbH
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Quartzite, Sandstone
Machinery Function Features:
The Sn-Sm produces split-face tiles made of marble, stone or granite. It can be used to process all the waste generated by other machines.
A hydraulic piston controls the moving horizontal blade that splits the stone. It is monitored thought an electric panel that sends signals to the solenoid valves.
The supports of the two blades are 100% symmetrical because they are CNC machined. Therefore, stones are perfectly split without breaking.
The speed and pressure can be adjusted depending on the type of work piece being processed.
The SN-SM has a very high productivity and its only wear items are the blades.
Lebanon
S.N.I.C.- Societe Nahas Pour L'industrie Et Le Commerce
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Travertine
Machinery Function Features:
Este - Cross Cutting Machine, Strip Cutting, Edge Trimming Machine
Tuto Mermer Dis Tic Ltd Sti.
Contact Supplier
Have a Question? Ask our expert
Ask now
Questions & Answers on Stone Tile Cutting Machines
Can I cut stone with a table saw?
Posted by Visitor
Reply to this question
Post ReplyCancel
You can use a table saw to cut stone if the saw has a diamond blade that is kept continually wet while cutting. A regular table saw blade will not create a smooth cut. The blade will chip the stone and will also produce a large amount of dangerous silica dust. A table saw is great for everyday projects.
Answered by StoneContact
Like
How can natural stone be cut with a tile saw?
Posted by Visitor
Reply to this question
Post ReplyCancel
Wet your stone in a bowl or bucket of water to prevent an initial dry cut. Place the stone on the opposite end of the tile saw from yourself. Pull the stone gently towards you, using the saw blade to cut down your marked line. Allow the saw blade to cut the rock, rather than putting a lot of pressure on it.
Answered by StoneContact
Like
