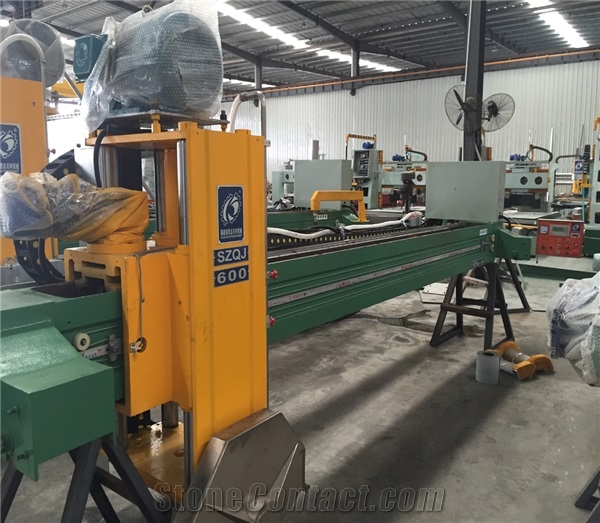

Four Guide Pillars Bridge Cutting Machine

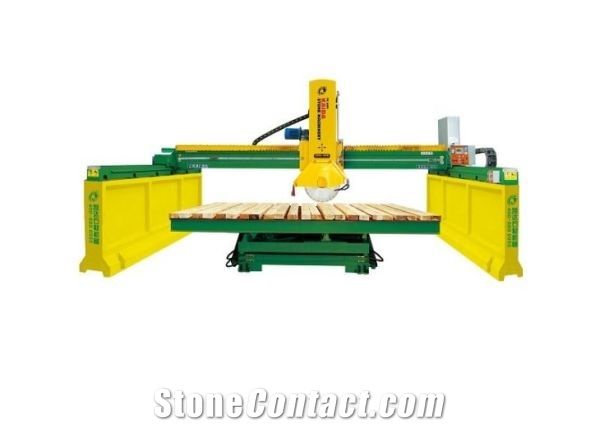

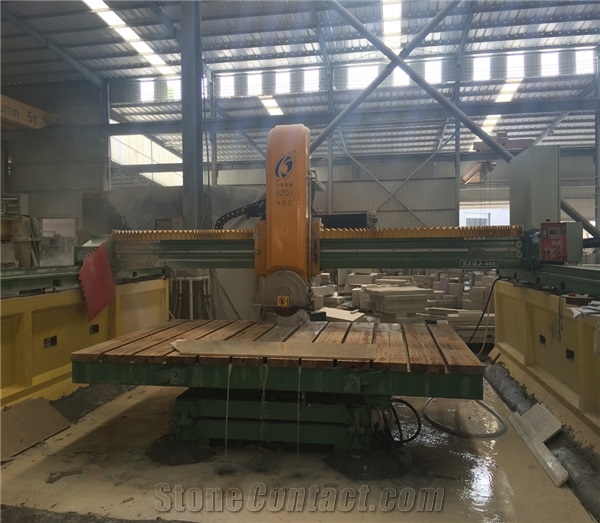

SZQJ-400/600/700/800 Four Guidepillars Bridge Cutting Blade Product Description Fujian Kaida Stone Machinery Company is specializes in producing Kaida brand infrared four-guide pillars bridge cutting machine. Mainly used for granite, marble infrared cutting. It is a very important and common equipment in stone processing equipment. The standard specification plates required for fast, accurate and continuous cutting are available upon request. The machine construction The infrared four-guide pillars cutting machine is composed of the Crossbeam, longitudinal rail boxes, conductors, lifting cylinders, side beams and cement foundation. Using laser instrument, Italy imported magnetic scale, microcomputer PLC. The machine is full automation and easy to operate, the work efficiency also improved. Total 4 type machine 400 600 700 800. Tow functions of the conventional and chamfered. The worktable can be rotated 45 degrees 90 degrees and 360 degrees, a variety of rotation methods. The main motor power is 15KW, 18.5KW, 22KW. available as an option. It meets the cutting requirements of large-size plates on the market. Product feature 1. The electronic control system is independently developed by Kaida Stone Machinery Design Team. It adopts Japan Omron PLC, Germany Schneider inverter, and contactor. It is the key to long-term stable, safe and efficient operation of the equipment. 2. The machine adopts magnetic scale. Compared with the traditional rotary encoder, the measuring and positioning accuracy and service life have been greatly improved. 3. The Conductors adopts four-guide pillars hydraulic lifting is more stability than the slide type. The high precision, effectively guarantee the precision of stone cutting. 4. The main motor adopts famous brand, which provides a strong power source for the equipment and greatly improves the efficiency of the equipment. 5. Worktable main material is International No. 14 H-shaped steel countertops, made of three materials, multi-process, high strength, good waterproof, corrosion-resistant, adapt to a variety of harsh environments, and long-term continuous operation.
