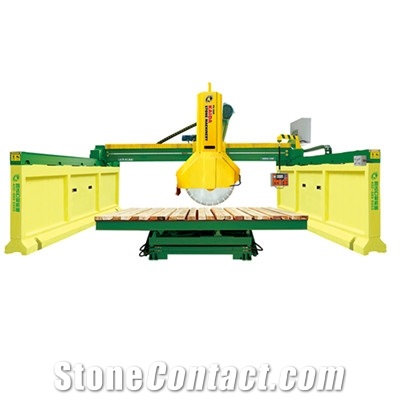

QSZQ-1200 Medium Bridge Stone Cutting Machine
FOB Price:$20500-21500
Type:
Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
20 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Jan 21,2014
ISO 9001
Main Product:
Bridge Cutting Machine, Medium Block Cutting Machine, Stone Profiling Machine, Stone Turnover Machine, Block Cutting Machine, Manual Edge Cutting Machine|
Machinery Function Features
This machine uses hydraulic lifting system (or screw lifting system).It uses inverter to control left-right feeding, it can adjust the cutting speed according to the stone material hardness. Main spare parts adopt imported good quality materials. Main power: 22 KW, Max diameter of blade: 1400mm; Thus the whole machine is featured as high cutting efficiency, high stability, easy- operating to suit products.
Technical Data
Parameters |
Unit |
QSZQ-1400 |
Main motor power |
kw |
22/30 |
Cutter rotating angle |
° |
0-90 |
Z Axis Stroke |
mm |
800 |
Blade diameter |
mm |
φ600-1400 |
Cooling water requirement(1.5 bar min. pressure) |
m3/h |
4 |
Working table dimensions(L×W) |
mm |
2800x2000 |
Machine length |
mm |
6400 |
Machine width |
mm |
4750 |
Machine height |
mm |
4400 |
Max. working dimensions(L×W×H) |
mm |
3000x2000x480 |
Processed Stone Photos
-

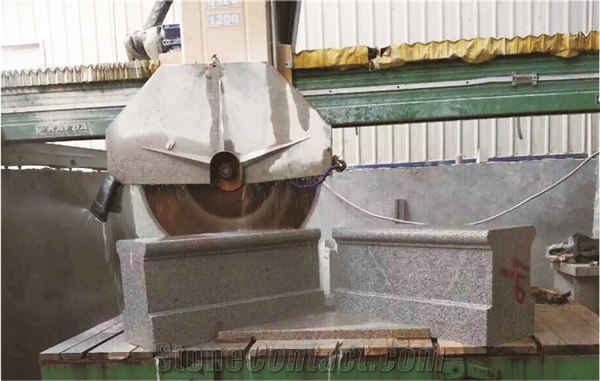

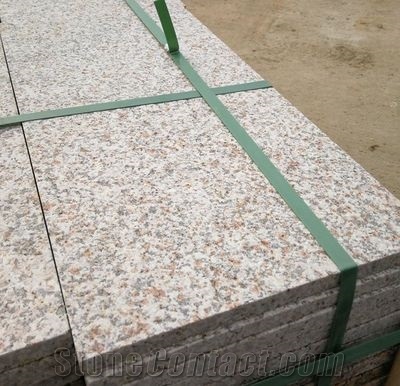

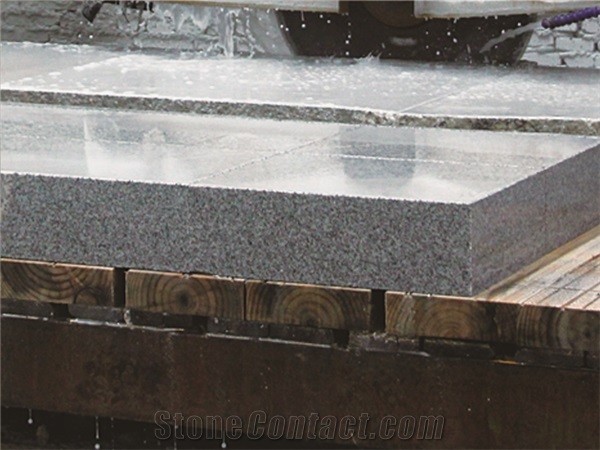

Granite
Components
-
Main motor
-

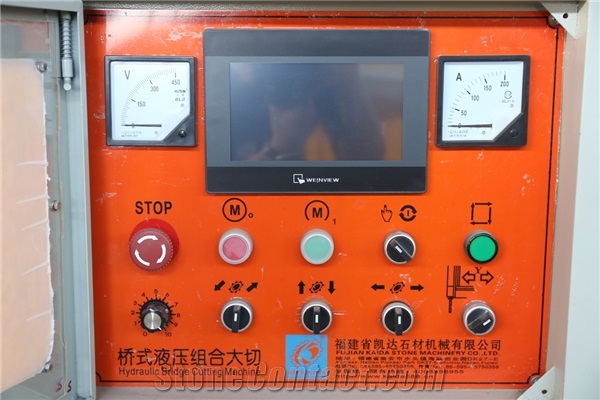

Electric panel
-

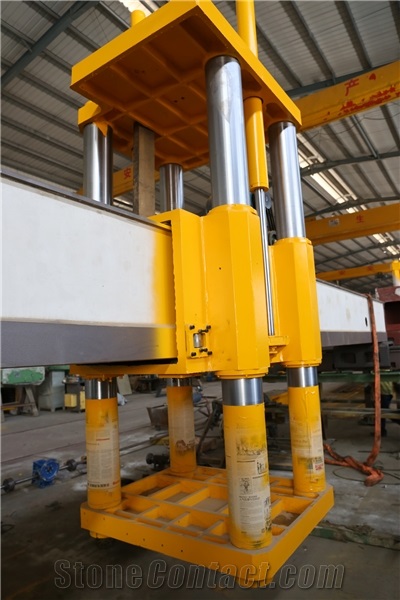

Hydraulic system
-

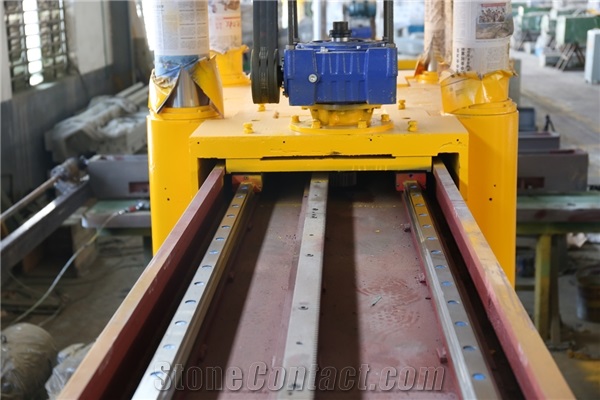

Linear guide
Consumables
-

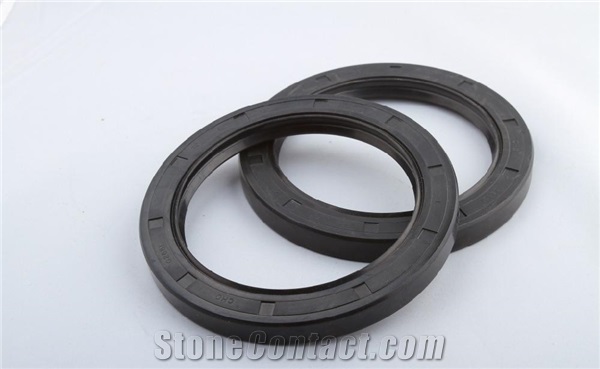

Oil seal ring
-

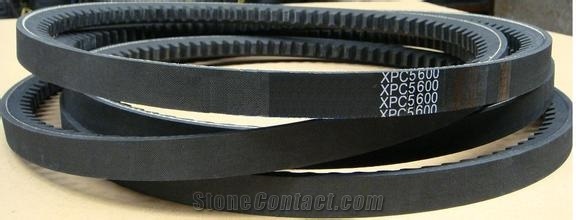

Triangle belt

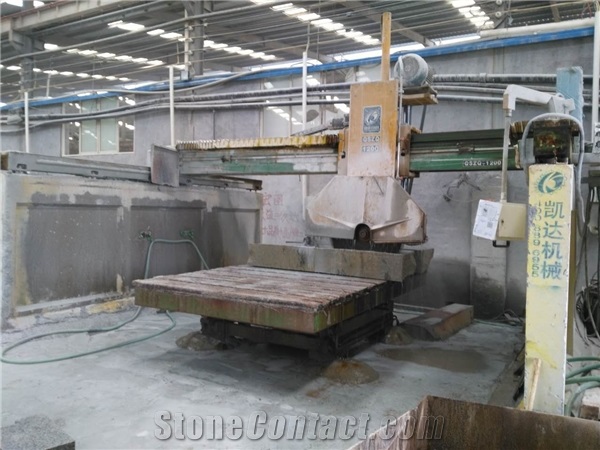

Customer Case
Nika
Canada
2017
Canada
2017

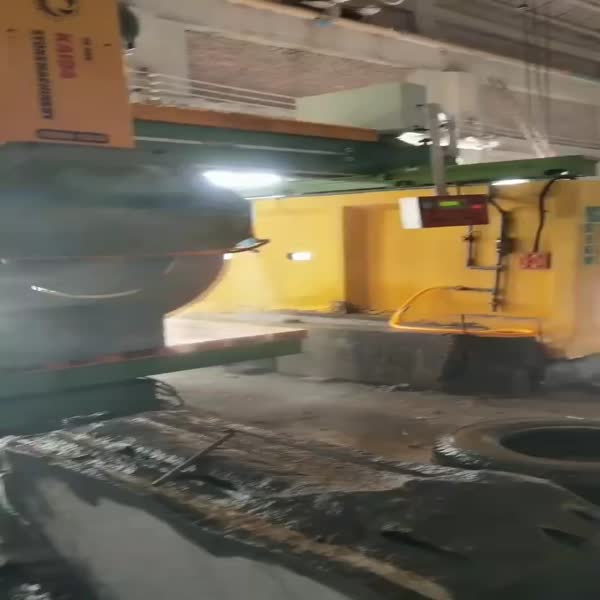

Video
Install Video
Operation Video
