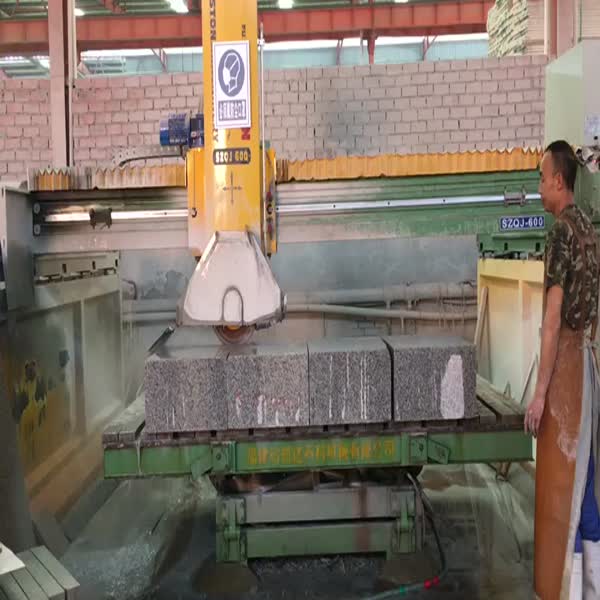

SZQJ-400 infrared bridge cutting machine
FOB Price:$17000-18000
Type:
Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
within 20 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Jan 21,2014
ISO 9001
Main Product:
Bridge Cutting Machine, Medium Block Cutting Machine, Stone Profiling Machine, Stone Turnover Machine, Block Cutting Machine, Manual Edge Cutting Machine|
Machinery Function Features
This machine is composed of the Crossbeam, longitudinal rail boxes, conductors, lifting cylinders, side beams and cement foundation.
Using laser instrument, Italy imported magnetic scale, microcomputer PLC. The machine is full automation and easy to operate, the work efficiency also improved. There are 4 models of this machine SZQJ-400/600/700/800.
The worktable can be rotated for 45, 90 and 360 degrees, a variety of rotation methods.
The main motor power can be selected from 15KW, 18.5KW and 22KW. It is available as an option. It meets the cutting requirements of large-size plates on the market.
Technical Data
Parameters |
Unit |
SZQJ-400 |
Cutter rotating angle |
° |
0 |
Working table tilting angle |
° |
0-85 |
Machine height |
mm |
2800 |
Blade diameter |
mm |
350-400 |
Working table rotating angle |
° |
90/360 |
Worktable Weight |
Kg |
1500 |
Machine length |
mm |
6000 |
Main motor power |
kw |
15 |
Approximate weight without table |
Kg |
3500 |
Max. thickness cutting capacity |
mm |
70 |
Blade tilting angle |
° |
0 |
Machine width |
mm |
5000 |
Max. working dimensions(L×W×H) |
mm |
3200*2000*70 |
Working table dimensions(L×W) |
mm |
3200*2000 |
Processed Stone Photos
-
marble
Components
-

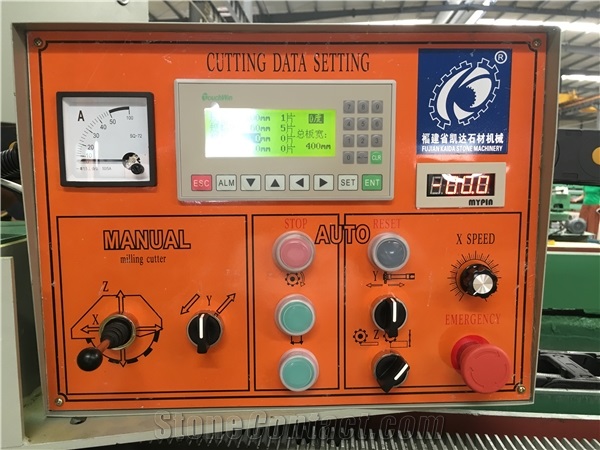

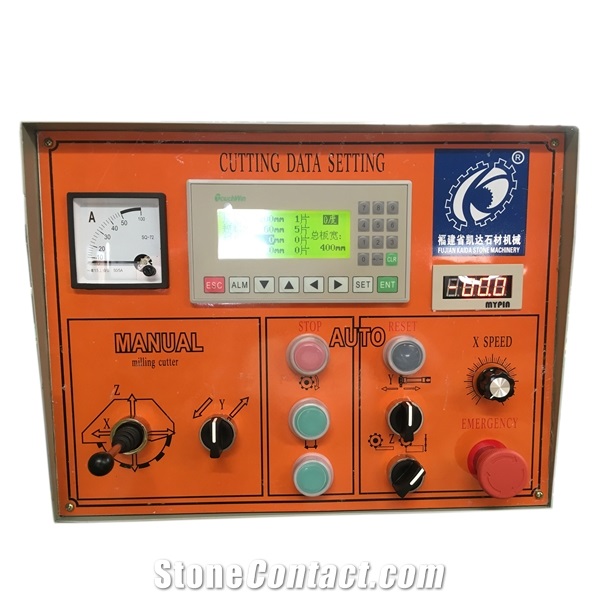

Electric control panel
-

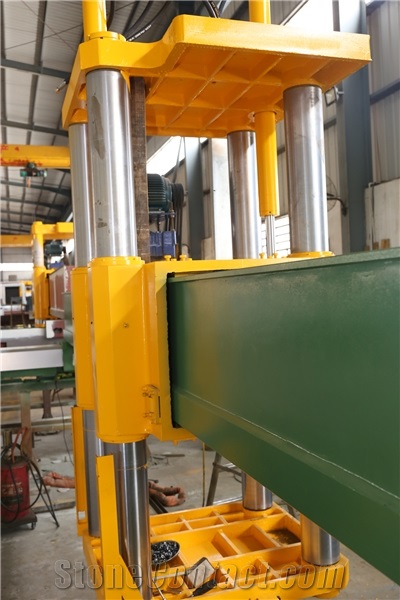

Guide pillar
-
Worktable

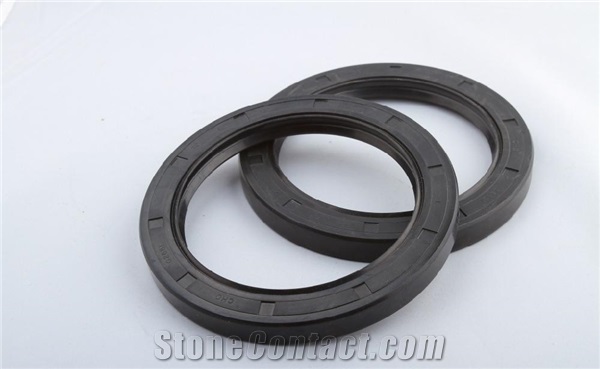

Consumables
-
blade
-
Triangle belt
-

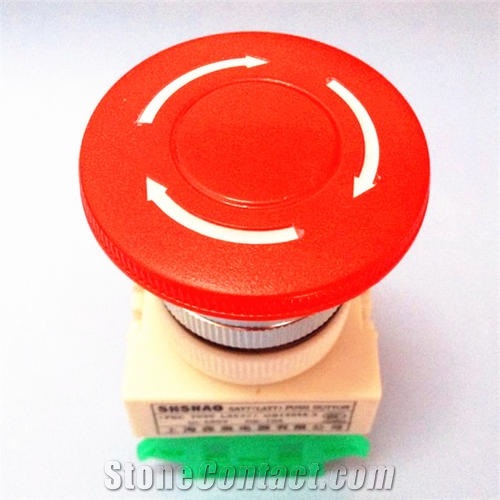

button

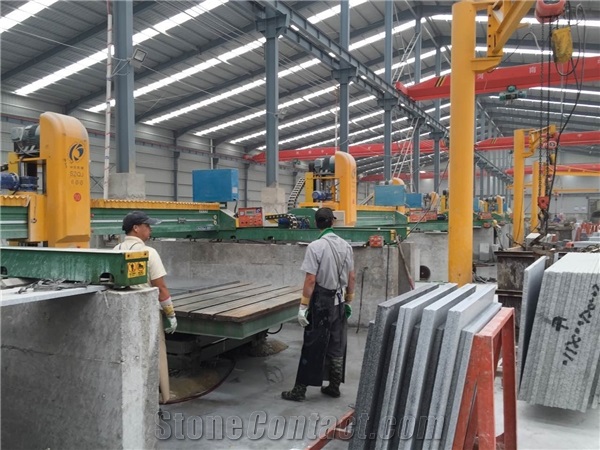

Customer Case
Osama Mohamed
Algeria
2018
Algeria
2018
Video
Install Video
Operation Video
