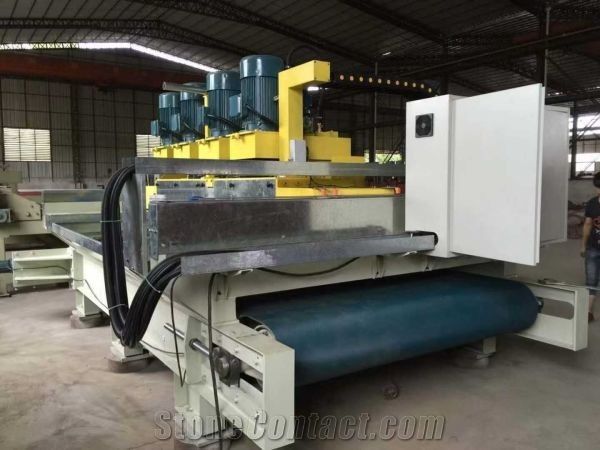

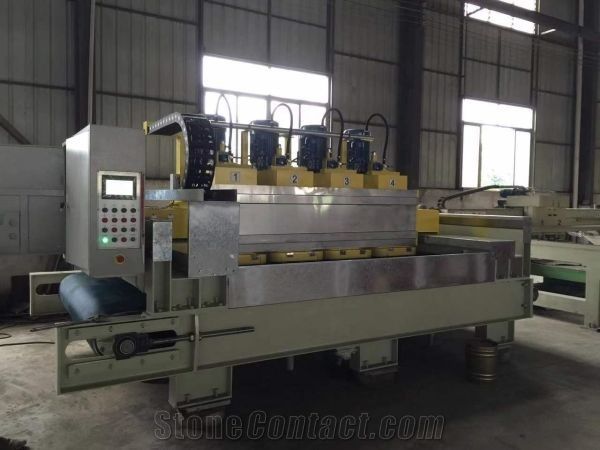

calibrating machine 3heads/4heads
FOB Price:$19000-24500
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesCalibrating Machine
Usage:
Granite, Marble
After-Sale
Lead Time:
30days
Warranty:12 Months
Install and Guarantee:Customer pay for installation
Maintenance:Online software upgrade
Supplier
Eatablished :Dec 24,2010
Main Product:
Bridge Cutting Machine , Profiling Stone Line Machine , Wire Saw Machine , Edge Cutting Machine|
Machinery Function Features
This machine can be made to 3/4 heads.It is installed with big power which especially suitable for artificial stone calibration. It has high efficiency and good flatness finish. Conveyer racks can be made to match on request. The motor power can be customized by customer. The conveyer belt and beam movement adopt frequency changer and the grinding head adopt the two sliding panel structure to increase its stability. The elevation of the grinding heads use mini programs to adjust the micro precision grinding.It is suitable for marble, granite, quartz and various kinds of artificial stone calibration.
Technical Data
Parameters |
Unit |
CS-3D/4D |
Machine overall width |
mm |
2200 |
Minimum workable thickness |
mm |
6 |
Number of calibrating units |
nr |
3 |
Maximum workable width |
mm |
1250 |
Power of each calibrating unit |
kW |
11 |
Maximum workable thickness |
mm |
50 |
Maximum workable length |
mm |
3000 |
Approx. Weight |
Kg |
3000 |
Total power installed |
kW |
36 |
Working bench dimensions |
mm |
1280 |
Machine overall height |
mm |
1800 |
Machine overall length |
mm |
3900 |
Processed Stone Photos

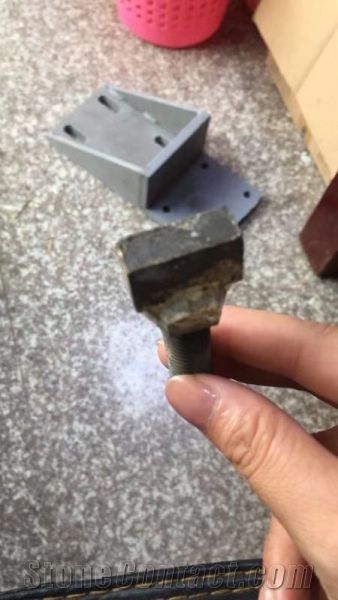

Components
Consumables
