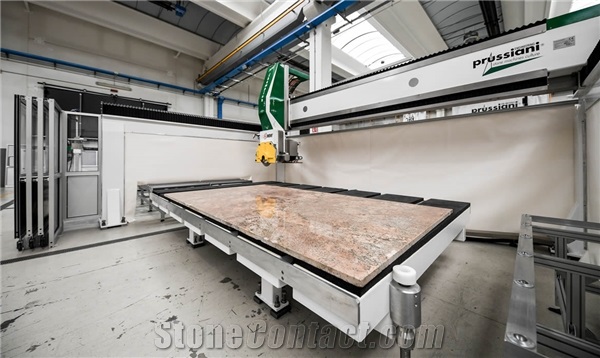

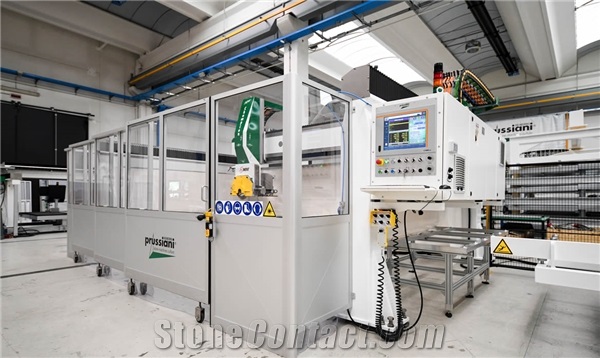

Prussiani NEW Champion 5 CNC BRIDGE SAWS
FOB Price:
Type:
Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:3 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Regular guidance & maintenance
Supplier
Eatablished :Dec 28,1991
Main Product:
Stone Machinery, CNC Waterjet Machine, Polishing Machine, CNC Bridge Saw, 5 Axes Milling Machines, CNC Working Centers|
You may also like
Machinery Function Features
VERSIONS
NEW CHAMPION 5 / TFG - fixed table
NEW CHAMPION 5 / TPG - partial tilting table
NEW CHAMPION 5 / TLG - table with tilting levers
NEW CHAMPION 5 / TCG - completely tilting table
NEW CHAMPION 5 / CL - side loading
NEW CHAMPION 5 / 2T - two tables
NEW CHAMPION 5 / NT - conveyor belt
NEW CHAMPION 5 / NT CA
NEW CHAMPION 5 / NT NS
NEW CHAMPION 5 / NT NS CA
Technical Data
Parameters |
Unit |
NEW CHAMPION 5 / TFG |
Bridge transversal stroke(Y axis travel) |
mm |
2.500 |
Max.length of the cut slab |
mm |
380 |
Disc diameter |
mm |
725 |
Installed electrical power |
kw |
31 |
Approximate weight without table |
Kg |
7.500 |
Main disk-holder electrospindle torque |
Nm |
170 |
Machine width |
mm |
5.100 |
Max. revolutions of the spindle unit |
r/min |
0 ÷ 8.000 |
Horizontal stroke(X axis travel) |
mm |
3.800 |
Disc motor power |
kw |
26,4 |

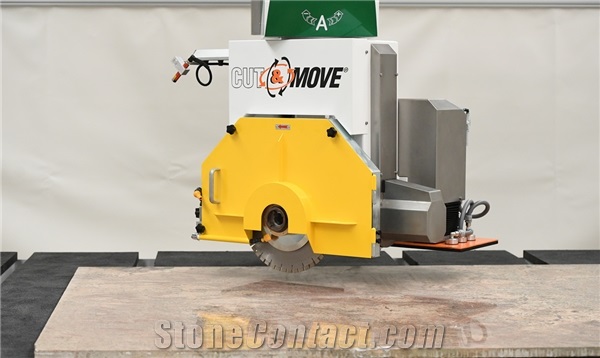

Tools holder head inclination(A axis blade rotation) |
° |
-185 ÷ 185 (370) |
C axis blade rotation |
° |
0°÷ 90° |
Machine height |
mm |
3.700 |
Min.dimensions of the liftable piece |
mm |
50 |
Max. workable thickness |
mm |
225 |

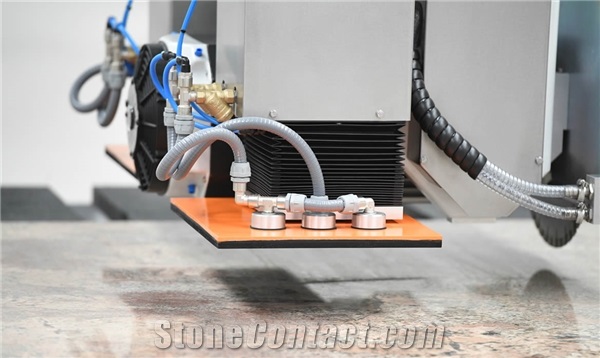

Max. liftable weight with all the vacuum cups activated |
Kg |
800 |
Transversal stroke speed (Y displacement speed) |
m/min |
65 |
Max. cutting depth |
mm |
200 |
Head raising/lowering stroke(Z axis travel) |
mm |
400 |
Average level of equivalent sound pressure |
dB |
80 ÷ 90 |
Machine length |
mm |
6.925 |
Max.width of the cut slab |
mm |
250 |
Vertical stroke speed (Z displacement speed) |
m/min |
11,4 |
Horizontal stroke speed(X axis displacement speed) |
m/min |
65 |
