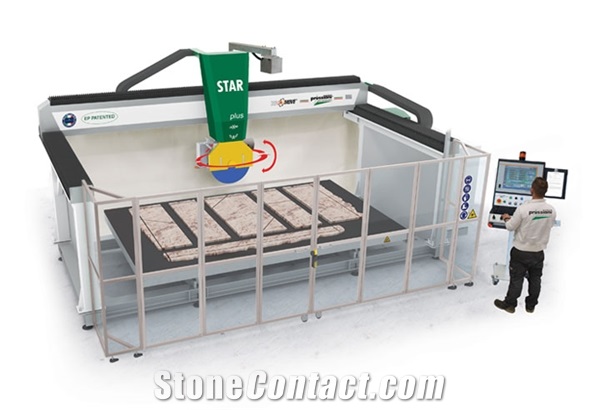

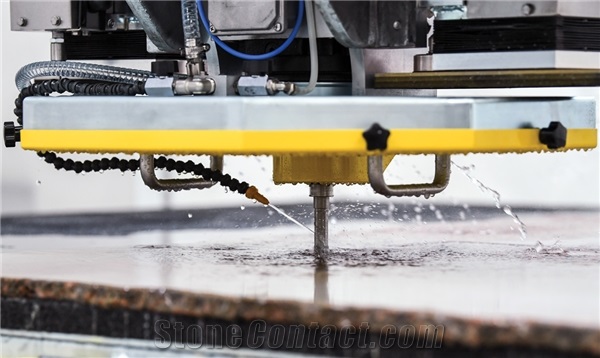

STAR Plus CNC BRIDGE SAWS- Cuting, Drilling
FOB Price:
Type:
Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:3 Months
Install and Guarantee:Customer pay for installation
Maintenance:Online software upgrade, Regular guidance & maintenance
Supplier
Eatablished :Dec 28,1991
Main Product:
Stone Machinery, CNC Waterjet Machine, Polishing Machine, CNC Bridge Saw, 5 Axes Milling Machines, CNC Working Centers|
You may also like
Machinery Function Features
automatic centralized greased lubrification. In case of anomalies the machines stops;
watertight IP 55 electric cabinet with safety thermostat;
sound power level: 80 ÷ 90 dB(A).
Technical Data
Parameters |
Unit |
STAR Plus |
C axis blade rotation |
° |
0°÷ 90° |
Max. workable thickness |
mm |
215 |
Max. liftable weight with all the vacuum cups activated |
Kg |
800 |
Tools holder head inclination(A axis blade rotation) |
° |
-185°+185° (370°) |
Machine width |
mm |
3.550 |
Machine height |
mm |
2.700 |
Head raising/lowering stroke(Z axis travel) |
mm |
350 |
Machine length |
mm |
5.550 |
Vertical stroke speed (Z displacement speed) |
m/min |
10 |
Installed electrical power |
kw |
18 |

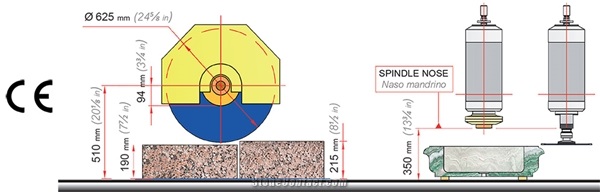

Max. cutting depth |
mm |
190 |
Disc diameter |
mm |
625 max |
Horizontal stroke speed(X axis displacement speed) |
m/min |
45 |
Electrospindle tool holder |
1/2″ gas |
|
Main disk-holder electrospindle torque |
Nm |
72 |
Head motor power |
kw |
13,2 |
Approximate weight without table |
Kg |
4.600 |
Bridge transversal stroke(Y axis travel) |
mm |
2.200 |
Horizontal stroke(X axis travel) |
mm |
3.600 |
Average level of equivalent sound pressure |
dB |
80 ÷ 90 dB(A) |
Max. revolutions of the spindle unit |
r/min |
0 ÷ 6.000 |
Transversal stroke speed (Y displacement speed) |
m/min |
45 |
Capacity suction cups |
Kg |
250 |
Components
-

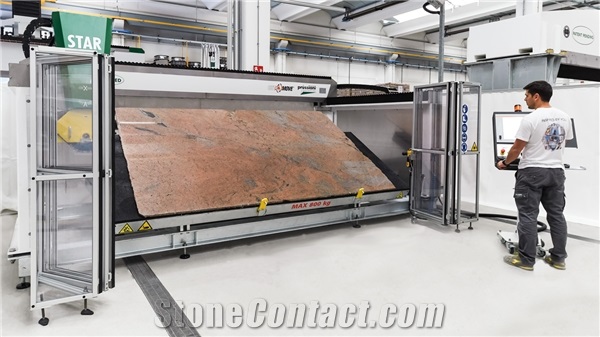

Loader
-

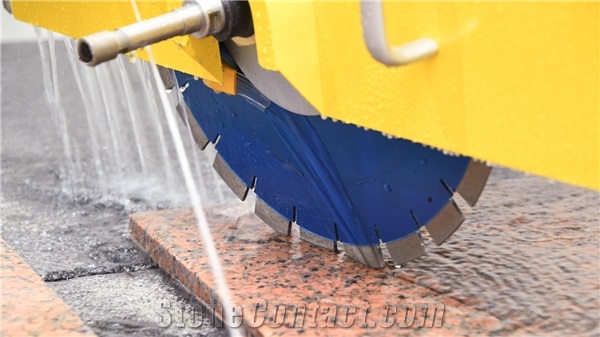

Disc
-

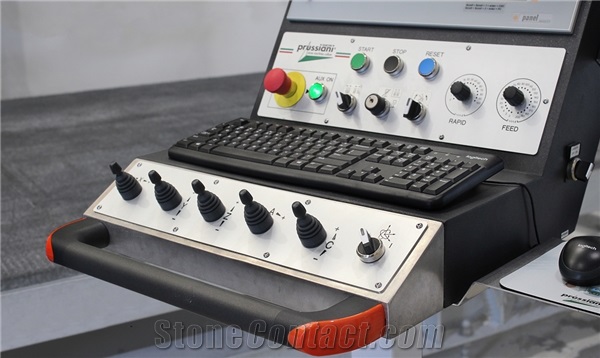

Console
