Four Head GDM 4160 Drilling and Split Plc Control Machine

Name: Four Head GDM 4160 Drilling and Split Plc Control Machine
Brand: SEN-MAK Koll.
SKU: 2448
Price: 37000 USD
Availability: InStock

FOB Price:$37000-37500

Type: Stone Factory MachinesStone Finishing, Profiling MachinesStone Drilling, Slot Machine

Usage: Granite, Marble, Limestone, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Lead Time: WITHIN 30 DAYS AFTER RECEIVING THE DEPOSITS

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation

Maintenance:Regular guidance & maintenance, Remote troubleshooting

Supplier

SEN-MAK Koll.

SEN-MAK Koll.

Turkey

Eatablished :Dec 30,2000

Main Product:

Cutting Saw Machines, Anchor Hole Machines, Floor Polishing Machines, Drilling Machines, Floor Grinding Machines, Diamond Tools|

Contact supplier

Start Order

You may also like

Drilling Machine For Tactile Stone

DRM-300 Vertical Stone Drilling Machine For Granite And Marble

SZ/PC-10 Automatic 45 Tilting Drilling Machine

Precision Marble & Granite Stone Hole Drilling Machine

High Speed Version Process Drilling Machine

Product Detail
Company Profile

Overview

Machinery Function Features

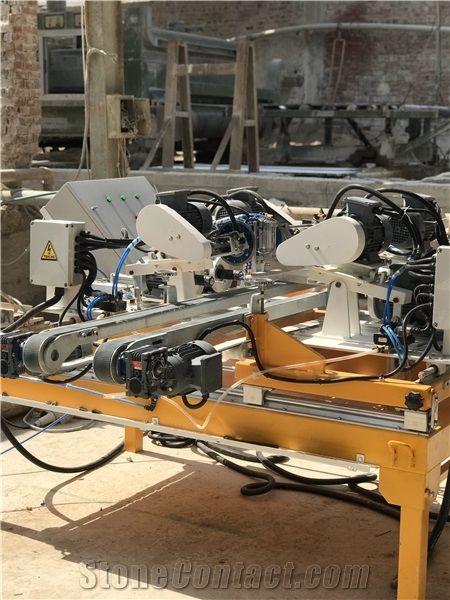

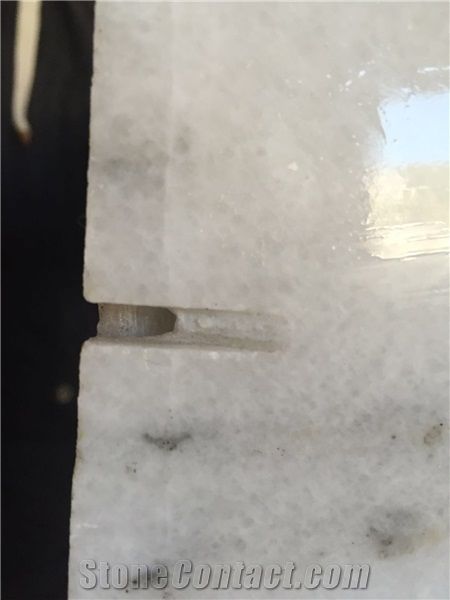

Anchor system, hook channel and hole is the machine. Makes 4 holes and 4 grooves in one operation. It provides you maximum speed with conveyor system and PLC control. The machine for those who race against time It opens 4 holes and 4 chamfer channel in a sing operation Performance Durations-- Average time Opening Holes --5 sec Opening Channels --2 sec Transition to Other Operation--4 sec Total Operation Time-- 11 sec

Technical Data

Parameters	Unit	GDM
Each Spindle Motor Power	kw	1.1
Max. working thickness	mm	40
Conveyor Motor	kW	0,37
Rotation speed	r/min	2800
Conveyor Length	mm	2750
Water Pump power	kW	0,37
Machine overall width	mm	2100
Conveyor Min. Closure	mm	210
Machine overall length	mm	2450
Conveyor Width	mm	100
Machine overall height	mm	1380
Approx. Weight	Kg	850
Min. working thickness	mm	18
Conveyor Band Width	mm	55
Conveyor Max. Opening	mm	730
