WANLONG QSQ-2200/2500 Multi-blade Block Cutting Machine for Granite Marble
FOB Price:$25000-30000
Type:
Stone Factory MachinesStone Block Cutting MachinesGiant Disc Saw Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
30 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Jan 08,1993
ISO9001-2000,SGS,TUV
Main Product:
Stone Cutting Machine, Stone Machine, Stone Polishing Machine, Diamond Segment, Diamond Saw Blade, Bridge Saw|
You may also like
Machinery Function Features

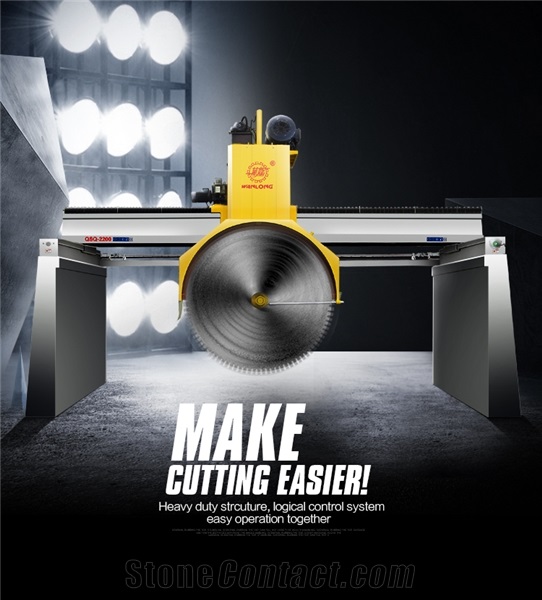

QSQ2200/2500/3000 combines different diameters of blades working simultaneously as multiblade cutting. It has screw-rod lifting system and hydraulic lifting system for choice. The crossbeam moves for feeding so that the table for block is not necessary ( which does not supply along with machine, only available upon request ). Heavy duty strcuture, logical control system, easy operation together with " Wanlong" blade give high production and also make the finish slab with flat surface, no tapper.
It is also flexible in modification for Single blade cutting.

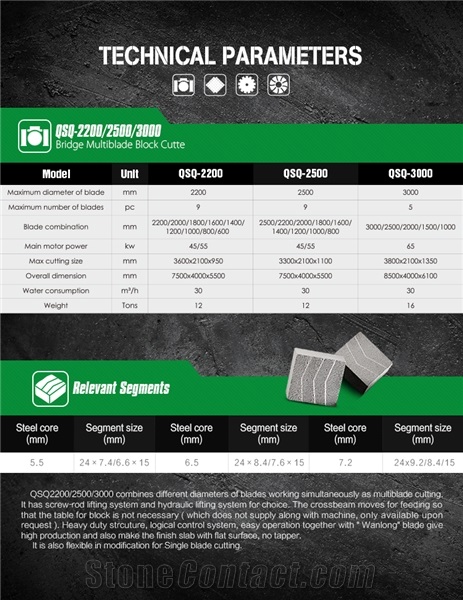

Technical Data
Parameters |
Unit |
QSQ-2200/2500 |
Maximum machine width |
mm |
5150 |
Disc diameter |
mm |
2500 |
Vertical displacement motor power |
kw |
55 |
Cut motor power |
kw |
55 |
Disc travelling speed |
m/min |
Adjust |
Maximum block height |
mm |
1100 |
Approximate Weight |
Kg |
12000 |
Disc motor power |
kw |
55 |
Block holder trolley power motor |
kw |
55 |
Usefull cutting height |
mm |
1100 |
Installed power |
kw |
55 |
Maximum block length |
mm |
3600 |
Machine width |
mm |
4350 |
Maximum block width |
mm |
2100 |
Cooling water (1.5 bar pressure) |
m3/h |
30 |
Transversal displacement motor power |
kw |
55 |
Machine front dimension |
mm |
7500 |

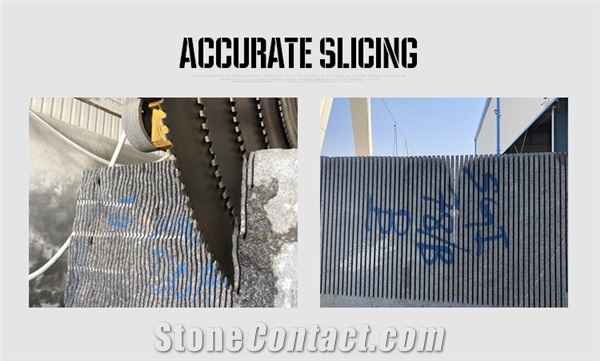

Processed Stone Photos

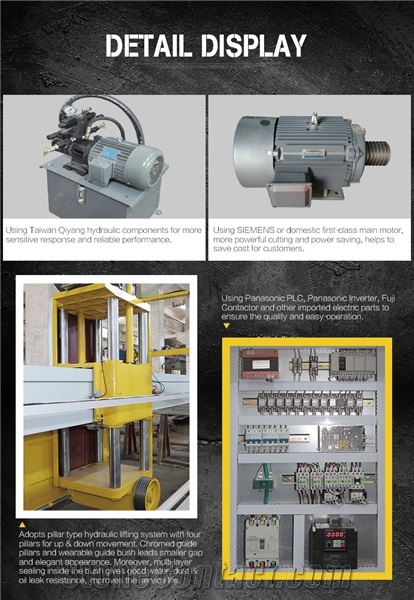

Components
-

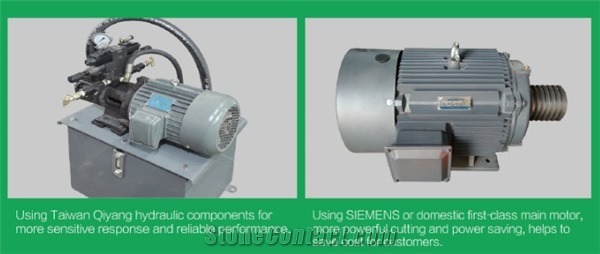

Main motor
-

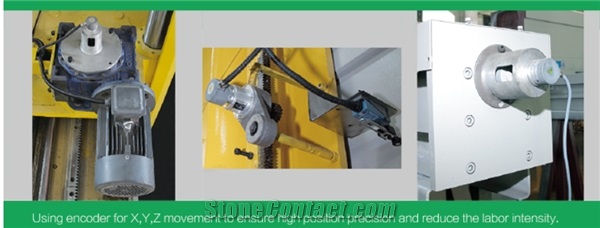

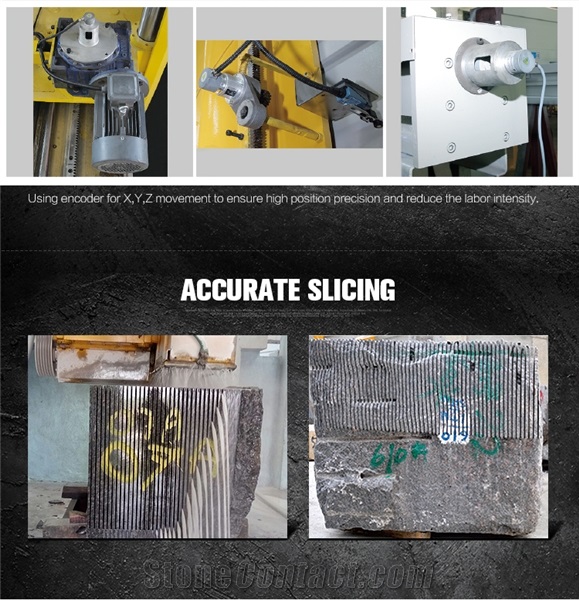

Encoder for X,Y,Z
-

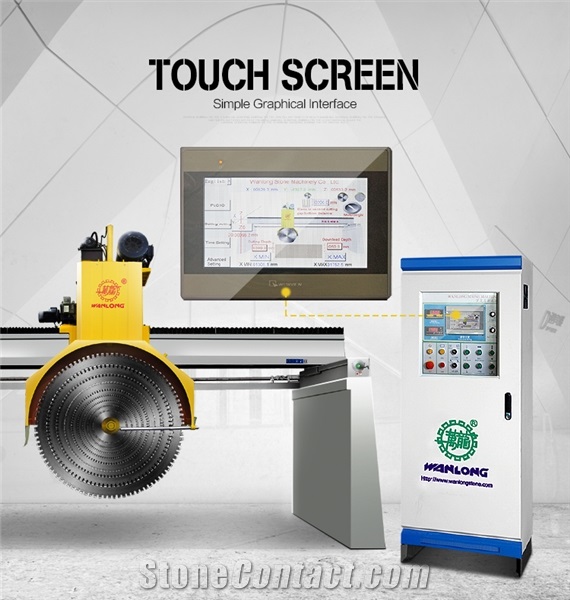

PLC
Consumables
