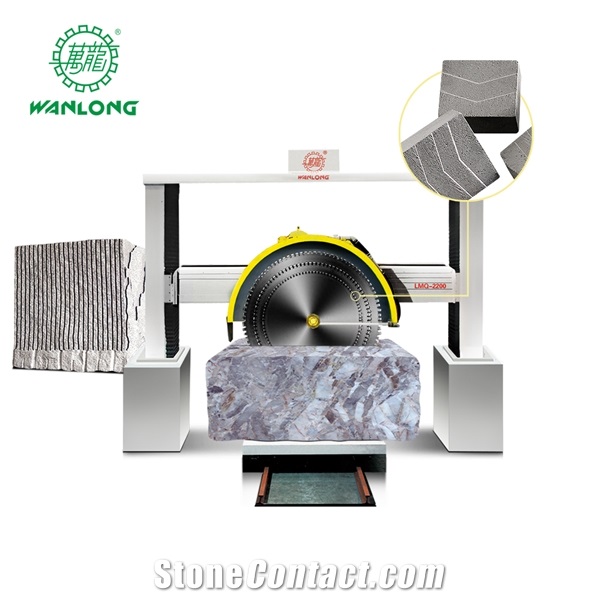

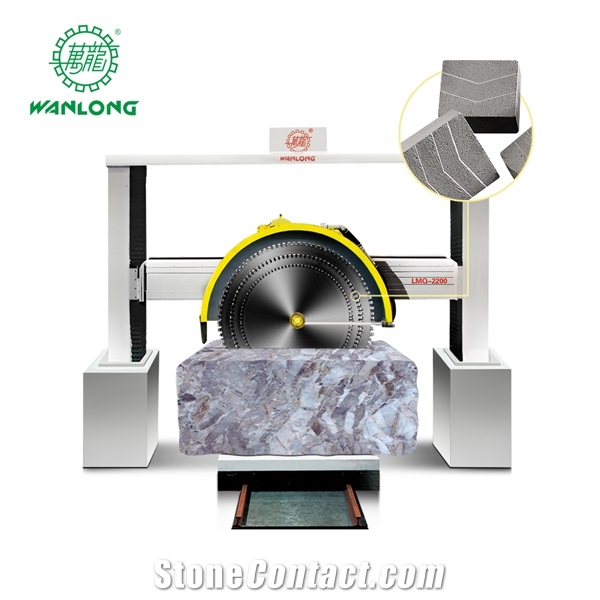

WANLONG Stone Machinery LMQ-2200/2500/3000 Gantry Cutting Machine

FOB Price:$22000-25000

Type: Stone Factory MachinesStone Block Cutting MachinesGiant Disc Saw Machine
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: 20 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting

Supplier

FuJian WanLong Diamond Tools CO,.LTD

FuJian WanLong Diamond Tools CO,.LTD
WANLONG

ChinaChina idicon

Eatablished :Jan 08,1993

ISO9001-2000,SGS,TUV

Main Product:

Stone Cutting Machine, Stone Machine, Stone Polishing Machine, Diamond Segment, Diamond Saw Blade, Bridge Saw|

Contact supplier

Start Order

You may also like
Multi Blade Giant Disc Saw Stone Block Cutting Machine (Max 18 Blades)
Multi Blade Giant Disc Saw Stone Block Cutting Machine (Max 18 Blades)
Bridge Combined Block Cutting Machine(Guide Pillar Type)
Bridge Combined Block Cutting Machine(Guide Pillar Type)
Giant Disc Block Cutting Machine, Multi Blade Block Cutting Machine
Giant Disc Block Cutting Machine, Multi Blade Block Cutting Machine
Granite Marble Quarry Block Rock Saw Stone Cutting Machine
Granite Marble Quarry Block Rock Saw Stone Cutting Machine
QSQD-2800 Multi Blade Granite Block Cutting Machine
QSQD-2800 Multi Blade Granite Block Cutting Machine
  • Overview
  • Components
  • Customer Case
Machinery Function Features
LMQ-2200/2500/3000 Gantry Cutting Machine is used for cutting stone block. The elevation of blade is driven by crossbeam to increase the cutting flatness and processing scope. Sliding speed of blade on the crossbeam is adjustable.
Technical Data
Parameters
Unit
LMQ-2200
LMQ-2500
LMQ-3000
Water consumption
m3/h
6
6
6
Usefull cutting height
mm
950
1100
1350
Maximum block height
mm
950
1100
1350
Maximum machine width
mm
6000
6000
6000
Approximate Weight
Kg
9000
Disc motor power
kw
11
11
11
Control system
PLC(imported Brand)
PLC(imported Brand)
PLC(imported Brand)
Machine width
mm
6000
6000
6000
Max. No. of blades
pcs
3
1
1
Maximum block width
mm
2000
2000
2000
Main motor power
kw
30
30
30
Maximum block length
mm
3000
3000
3000
Table dimensions ( L x W )
mm
2000*2000
2000*2000
2000*2000
Production Capacity
sqm/10hrs
40-48
40-48
40-48
Maximum disc stroke
mm
950
1100
1350
Disc diameter
mm
2200
2500
3000
Machine front dimension
mm
6600
6600
7000
Software

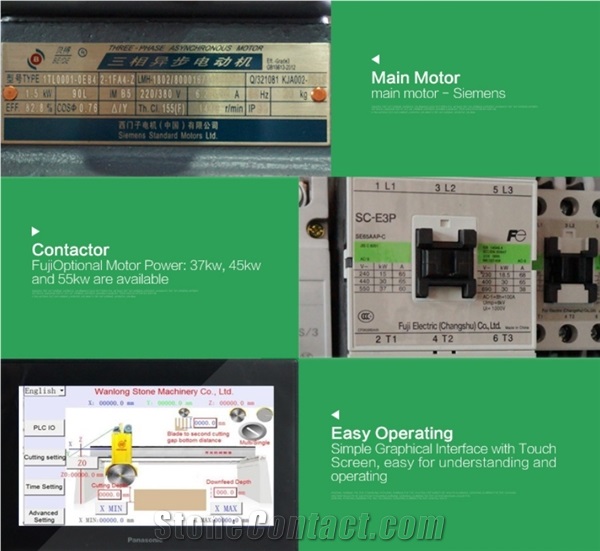

1. SIEMENS or indigenous main motor, 30KW.
2. PANASONIC PLC, PANASONIC converter, FUJI contactor
3. Crossbeam length 5 meter, columns height 2.75 meter
4. Single layer table with slicing encoder

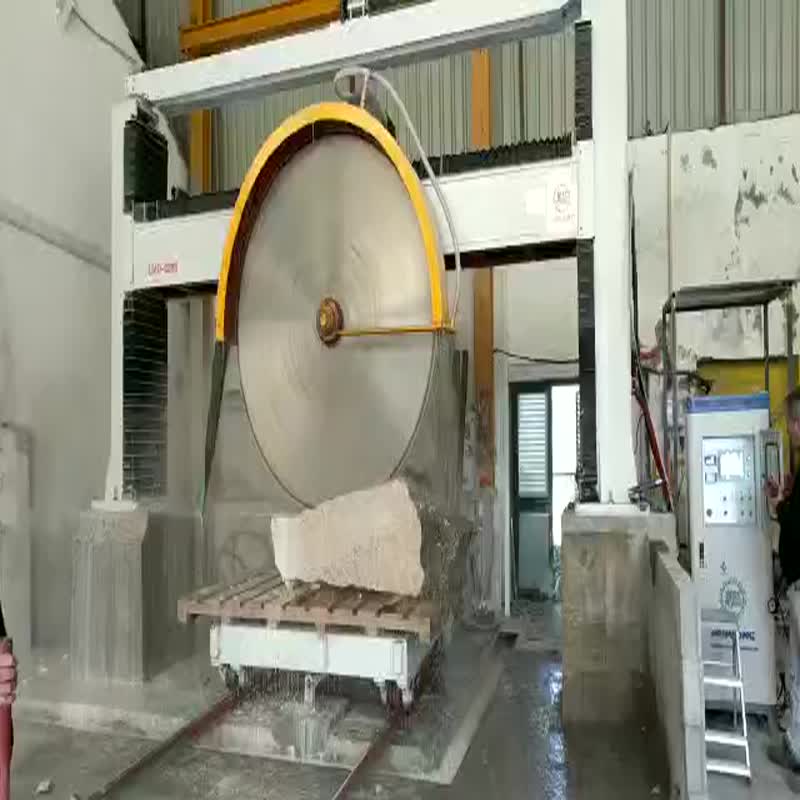

Work Example

The elevation of blade is driven by crossbeam to increase the cutting flatness and processing scope. Sliding speed of blade on the crossbeam is adjustable.

Processed Stone Photos
  • Processed Stone Photos

Components

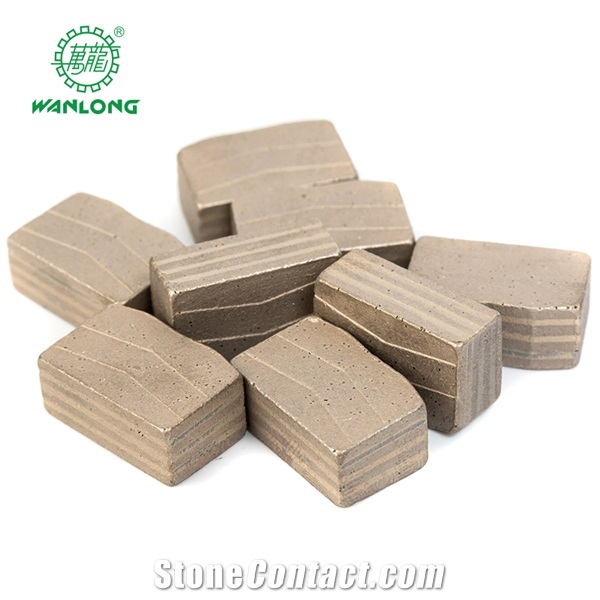

Consumables

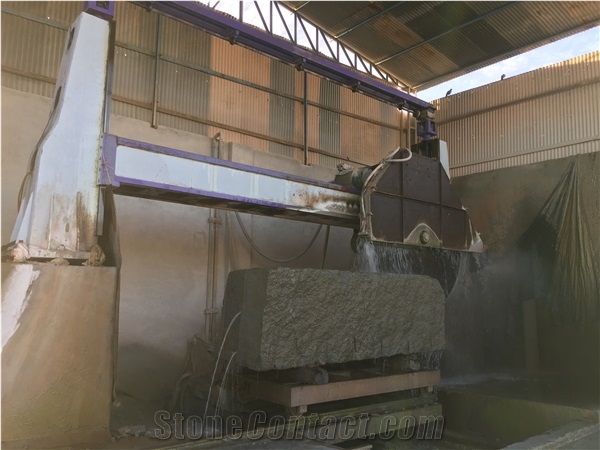

Customer Case
