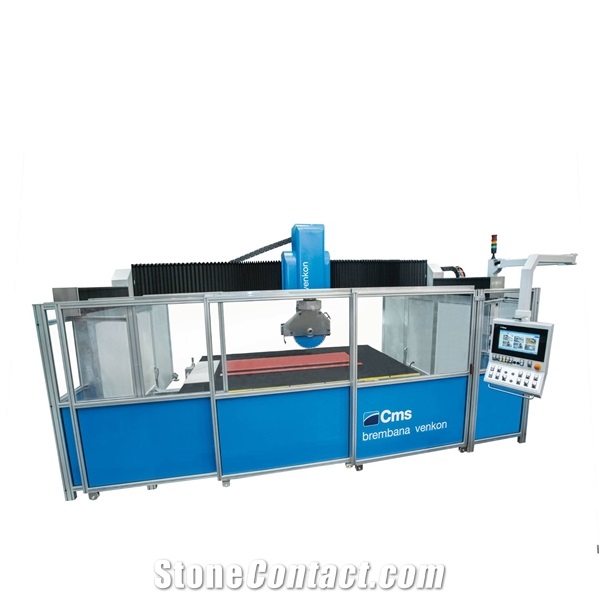

Brembana Venkon - 5 axis monoblock CNC bridge saw machine
FOB Price:
Type:
Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Remote troubleshooting
Supplier
Eatablished :Dec 31,1968
Main Product:
Granite Cutting Machine, Cnc Machining Centers, Marble Cutting Machines, Waterjet Cutting Machine, Cutting Machines, Bridge Sawing Machines|
Machinery Function Features
Its the new generation of a numerically controlled 5 axes Bridge Saws. Extremely compact and easy to install; it doesnt require any foundations, even as a possibile re-installation. The machine is built with the needs of workshops in mind and it is used for cutting slabs up to 200 mm in thickness (with blade 625 mm) of natural stone, synthetic stone, and ceramic.
Advantages:
- The weight of the machine up to 4.400 kg guarantees high constant precision over time.

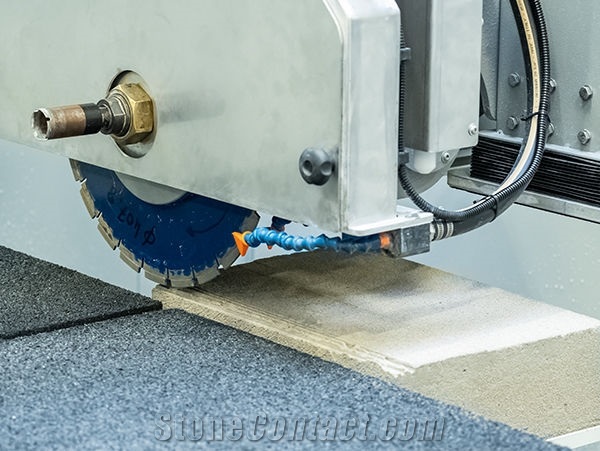

- Blade automatic redressing station
- the machine can therefore perform 5-axis machining with a tool and/or disc
- easy programming
Technical Data
Parameters |
Unit |
Brembana Venkon |
Disc diameter |
mm |
350 ÷ 625 |
Horizontal stroke speed(X axis displacement speed) |
m/min |
30 |
Max. revolutions of the spindle unit |
r/min |
0÷5000 |
Bridge transversal stroke(Y axis travel) |
mm |
2450 |
Horizontal stroke(X axis travel) |
mm |
3950 |
Head raising/lowering stroke(Z axis travel) |
mm |
400 |
Disc motor power |
kw |
14,3 |
Tools holder head inclination(A axis blade rotation) |
° |
0° - 90° |
Vertical stroke speed (Z displacement speed) |
m/min |
7.5 |
C axis blade rotation |
° |
± 180° (360°) |
Minimum space required for installation |
mm |
6400*x4110x3020 |
Max number of interpolated axes |
nr |
5 |
Dimensions of the work table(L×W) |
mm |
3600x2000 |
Approximate weight without table |
Kg |
Up to 4400 |
Max. workable thickness |
mm |
200 |
Transversal stroke speed (Y displacement speed) |
m/min |
25 |
