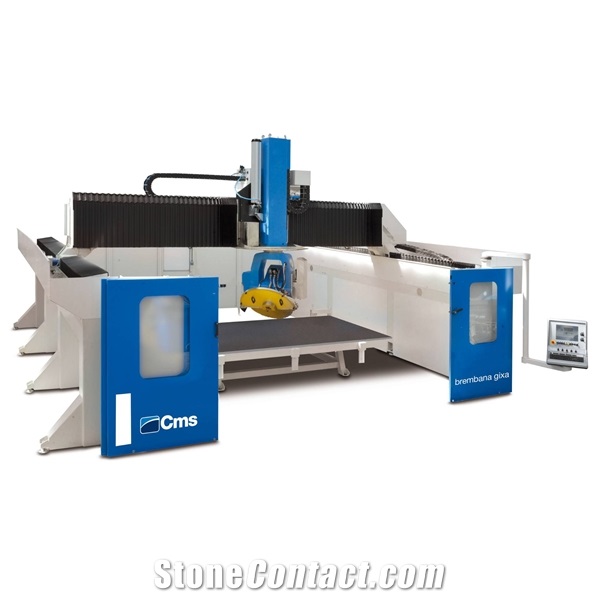

Brembana Gixa Large sized 5-axis CNC bridge saw machine
FOB Price:
Type:
Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Remote troubleshooting
Supplier
Eatablished :Dec 31,1968
Main Product:
Granite Cutting Machine, Cnc Machining Centers, Marble Cutting Machines, Waterjet Cutting Machine, Cutting Machines, Bridge Sawing Machines|
You may also like
Machinery Function Features
Numerically Controlled 5 interpolated-axis bridge saw equipped with tilting head and fixed table to carry out any type of machining, cutting (straight or shaped, vertical or inclined), 3D profiling and milling operations, on slabs and stone blocks.
This machine can work one shot or step by step to shape marble, granite, composite stone, and ceramic pieces.
The 4.250 mm stroke of the bridge guarantees easy machining of large sized slabs or stone blocks.
Its extraordinary stability allows to reach a Z-Stroke of 1.400 mm with disks with a diameter up to 1.200 mm; representing industry leading features.
Advantages:
- unrivalled mechanics
- motion accuracy
- limitless technology
- the best solution for block machining thanks to the Z axis stroke up to 1400 mm and disk diameter up to 1200mm
Technical Data
Parameters |
Unit |
Brembana Gixa |
minimum space required for installation |
mm |
7700x5360x4430 |
C axis blade rotation |
° |
± 270° (540°) |
Max. revolutions of the spindle unit |
r/min |
0÷5000 |
Tools holder head inclination(A axis blade rotation) |
° |
+8° -90° |
Dimensions of the work table(L×W) |
mm |
4200x2500 |
Disc diameter |
mm |
400 ÷ 1200 |
Bridge transversal stroke(Y axis travel) |
mm |
3000 ÷ 7000 |
Horizontal stroke(X axis travel) |
mm |
4250 |
Head motor power |
kw |
25,5 / 28,5 / 31,2 |
Max. workable thickness |
mm |
440(with 90° disk Ø 1200 mm) - 315(with 45° DISK Ø 1200 mm) |
Head raising/lowering stroke(Z axis travel) |
mm |
900 ÷ 1400 |
Max number of interpolated axes |
nr |
5 |
