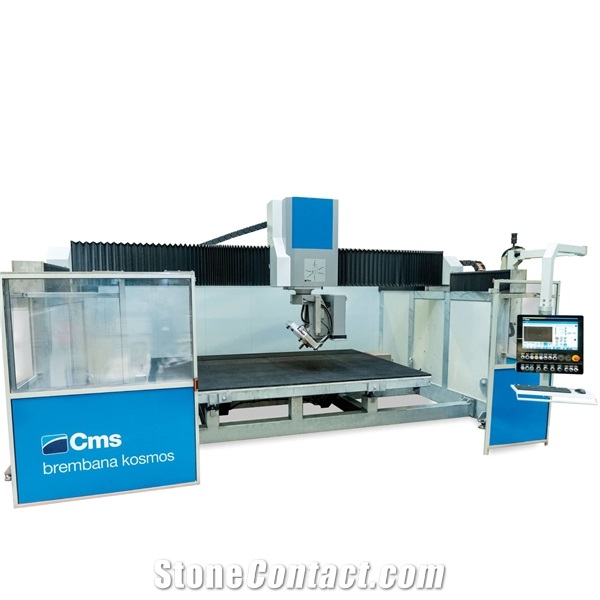

Brembana kosmos 5-axis CNC monolithic bridge saw machine
FOB Price:
Type:
Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting
Supplier
Eatablished :Dec 31,1968
Main Product:
Granite Cutting Machine, Cnc Machining Centers, Marble Cutting Machines, Waterjet Cutting Machine, Cutting Machines, Bridge Sawing Machines|
Machinery Function Features
Its the new generation of a numerically controlled 5 axes Bridge Saws.
Extremely compact and easy to install; it doesnt require any foundations, even as a possibile re-installation. This machine is built with the needs of workshops in mind and it is used for cutting slabs up to 200 mm thickness (with blade 625 mm) of natural stone, synthetic stone, and ceramic.
Advantages:
- The weight of the machine up to 5.100 kg guarantees a high constant precision over time
- the machine can therefore perform 5-axis machining with a tool and/or disc
- +33% productivity without manual movements thanks to the vacuum manipulator

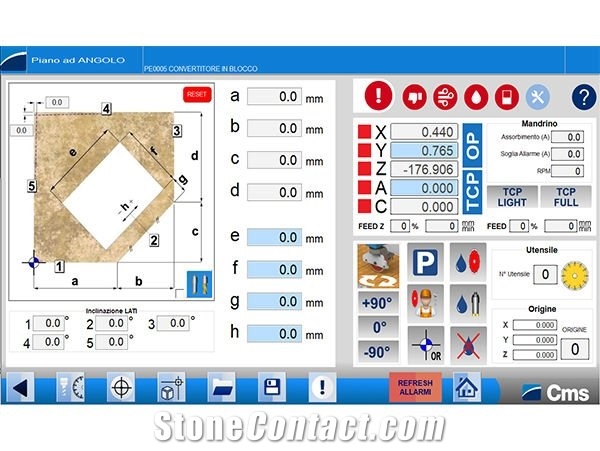

- easy programming
Technical Data
Parameters |
Unit |
Brembana kosmos |
Transversal stroke speed (Y displacement speed) |
m/min |
25 |
Head motor power |
kw |
14,3 |
Max. workable thickness |
mm |
200 |
Disc diameter |
mm |
350 ÷ 625 |
Head raising/lowering stroke(Z axis travel) |
mm |
400 |

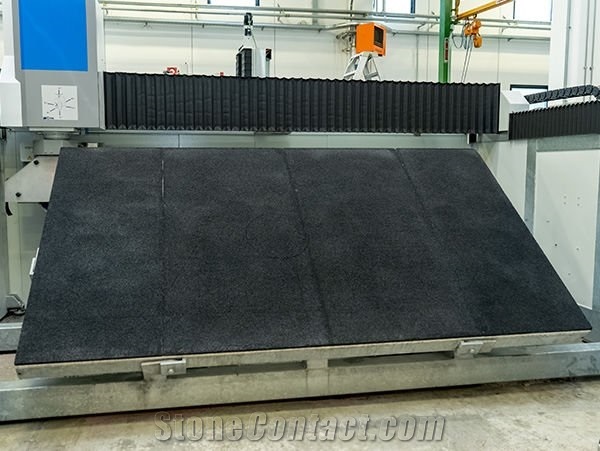

Dimensions of the work table(L×W) |
mm |
3600x2500 |
Approximate weight without table |
Kg |
Up to 5100 |
Horizontal stroke(X axis travel) |
mm |
3960 |
Vertical stroke speed (Z displacement speed) |
m/min |
7.5 |
Tools holder head inclination(A axis blade rotation) |
° |
0° - 90° |
Max. revolutions of the spindle unit |
r/min |
0÷5000 |
Minimum space required for installation |
mm |
6400*x4110x3020 |
C axis blade rotation |
° |
± 180° (360°) |
Horizontal stroke speed(X axis displacement speed) |
m/min |
30 |
Bridge transversal stroke(Y axis travel) |
mm |
2450 |
