Bestlink Bq90-P Multi-Angle Drilling Pneumatic DTH Driller
FOB Price:$5500-6000
Type:
Stone Quarry MachinesQuarry Drilling MachinePneumatic Drill Machine
Usage:
Granite, Marble, Limestone, Basalt, Quartzite, Sandstone
After-Sale
Lead Time:
25 days
Warranty:6 Months
Install and Guarantee:Third-party team installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Dec 22,2000
Main Product:
Stone Splitting Machine, Stone Cutting Machines, Stone Splitter, Pushing Air Bag, Button Bit Grinder, Dth Hammer Button Bit|
You may also like
Machinery Function Features

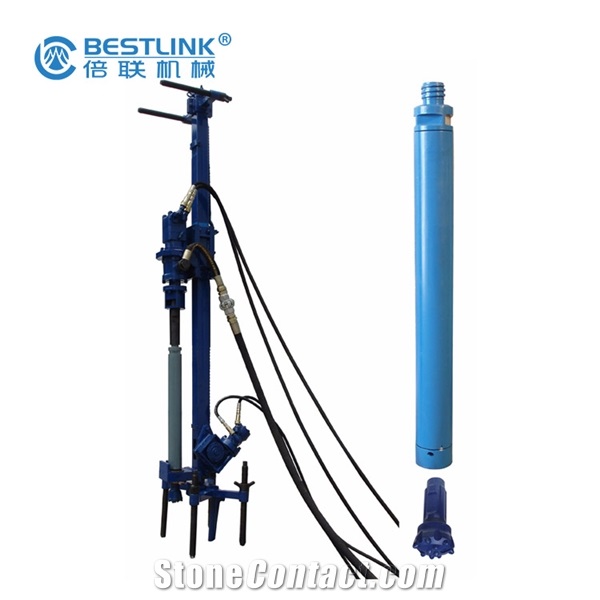

Bestlink Bq90-P Multi-Angle Drilling Pneumatic DTH Driller
BQ-90P DTH driller is a new model drill machine, we develop it specially used for stone quarry and the drilled hole can be different diameter, depth, multi-orientation & angle.
Now it's the indispensable products for mine quarrying, stone dynamiting and diamond wire passing.
Advantages:
1) Light weight, easy installation and transportation
2) The high quality pneumatic components ensure the low energy and air consumption and high efficiency
3) The good hoisting ability
4) The particular mechanical tube devices for screwing and discharging to reduce the labor intensity
5) The particular design for guiding drilling
Technical Data
Parameters |
Unit |
BQ-90P Pneumatic driller |
Minimum air pressure |
Mpa |
0.5-0.7 |
Theorical drilling speed for Granite |
cm/min |
6~8 |
Adjust height of the down jack |
mm |
220 |
Total compressed air consumption |
m³/min |
7~9 |
Holes diametre Φ |
mm |
Φ65-90 |
Theorical drilling speed for Marble |
m/h |
6~8 |
Total weight (without hammer) approx |
Kg |
250 |
Processed Stone Photos
Components
Consumables
