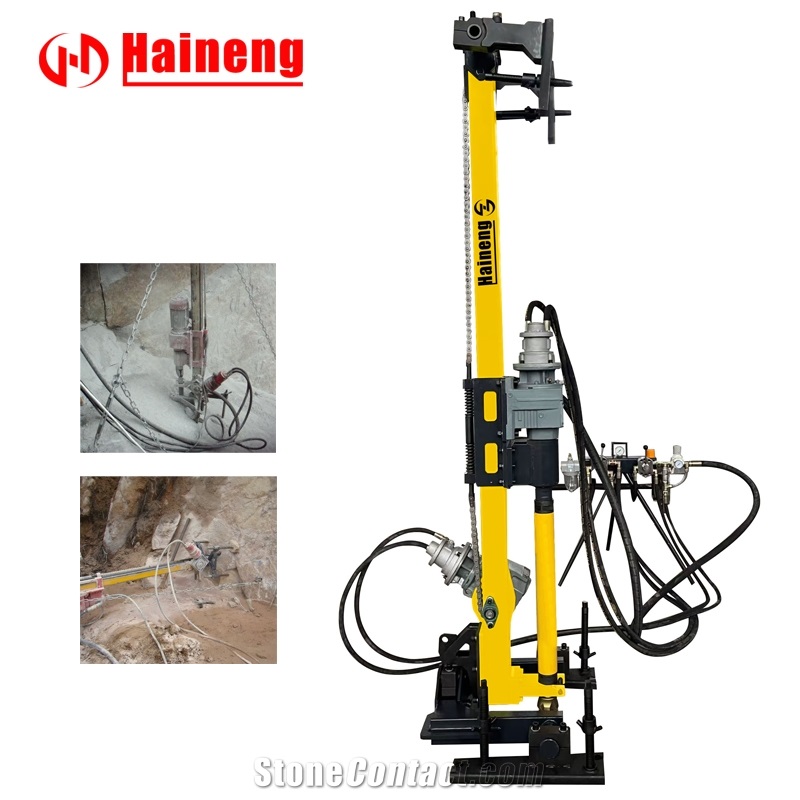

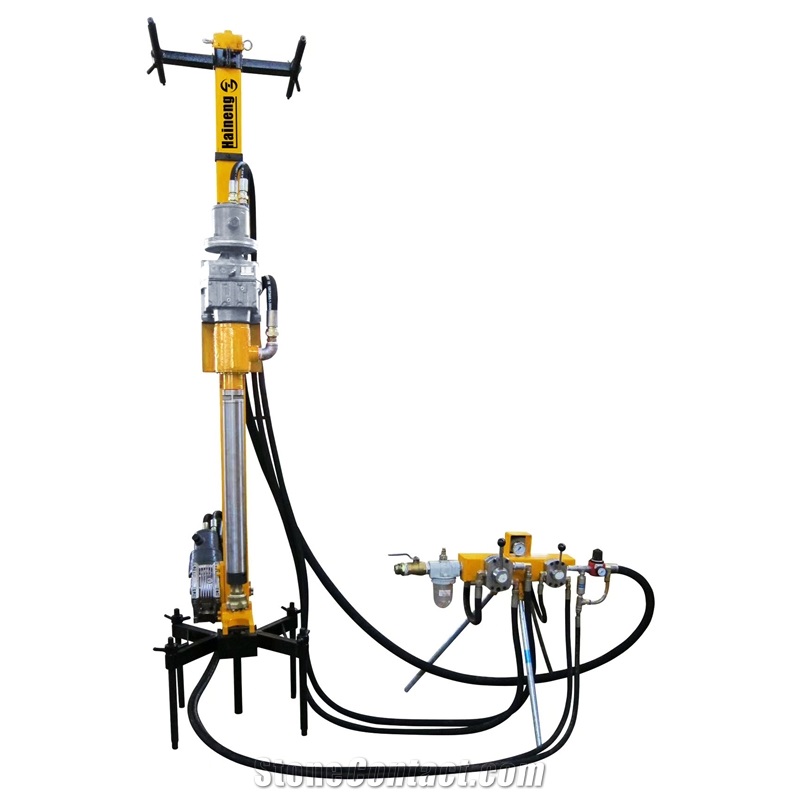

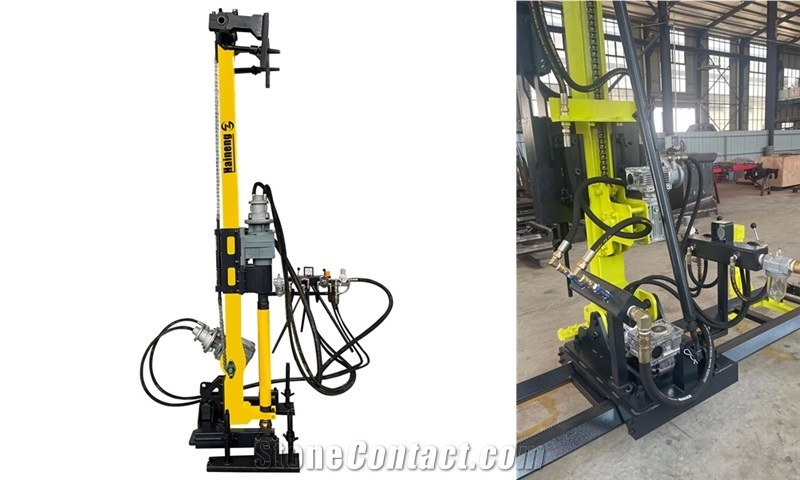

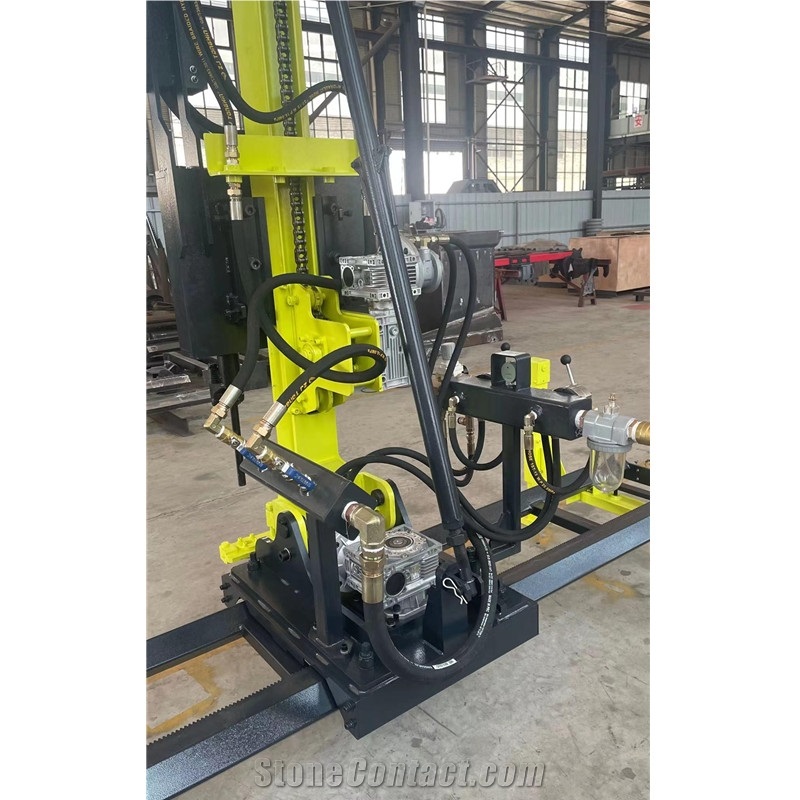

Vertical Horizontal Type Pneumatic Driller Quarry Drilling Machine
FOB Price:$4100-4500
Type:
Stone Quarry MachinesQuarry Drilling MachinePneumatic Drill Machine
Usage:
Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
25 Days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Apr 13,2017
Main Product:
Stone Machinery, Stone Cutting Machine, Stone Polishing Machine, Stone Profiling Machine, CNC Bridge Saw, Stone Engraving Machine|
Machinery Function Features

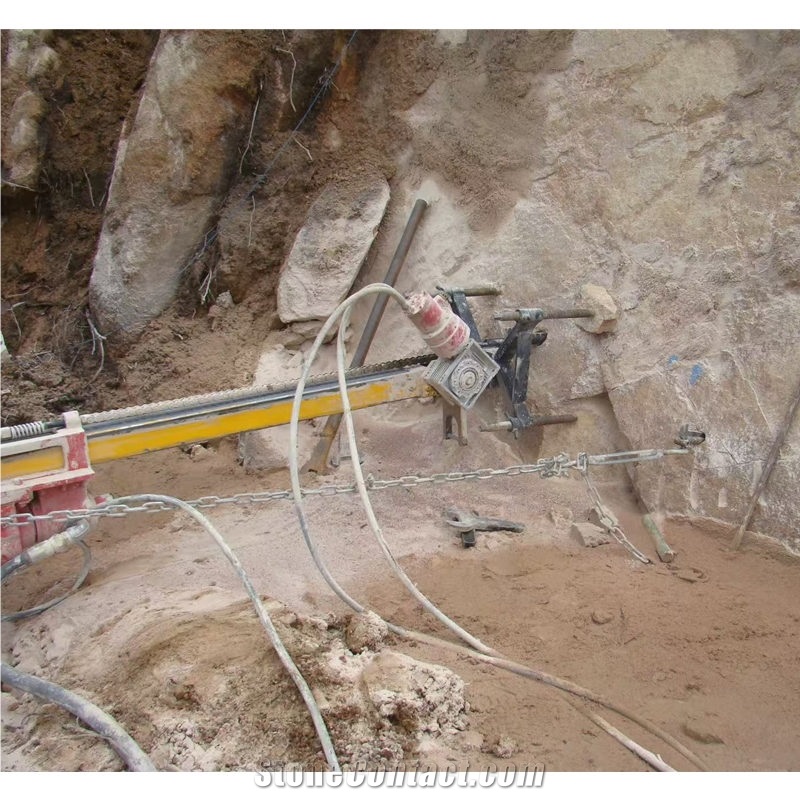

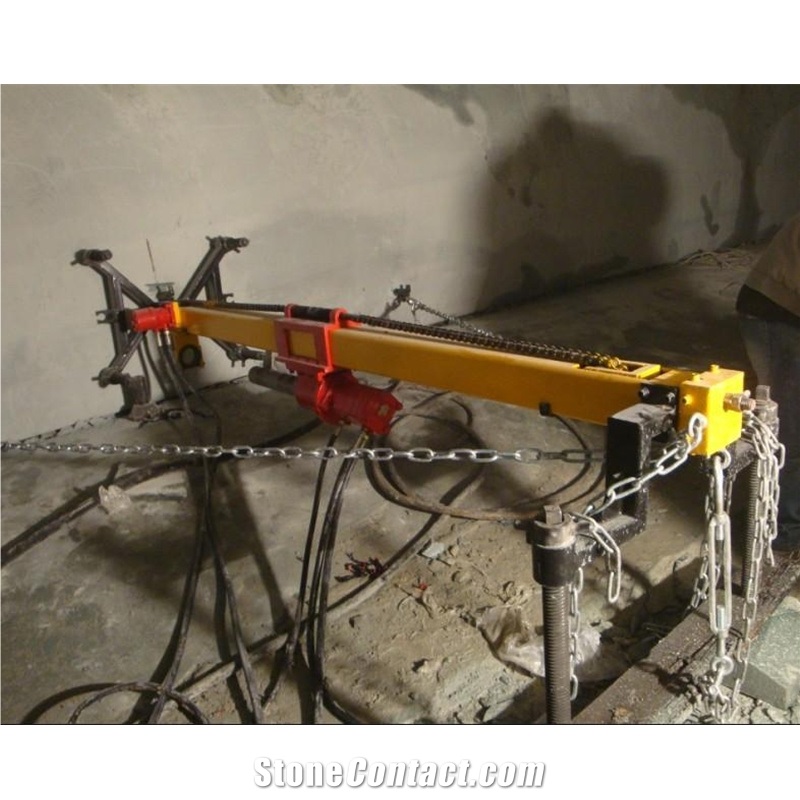

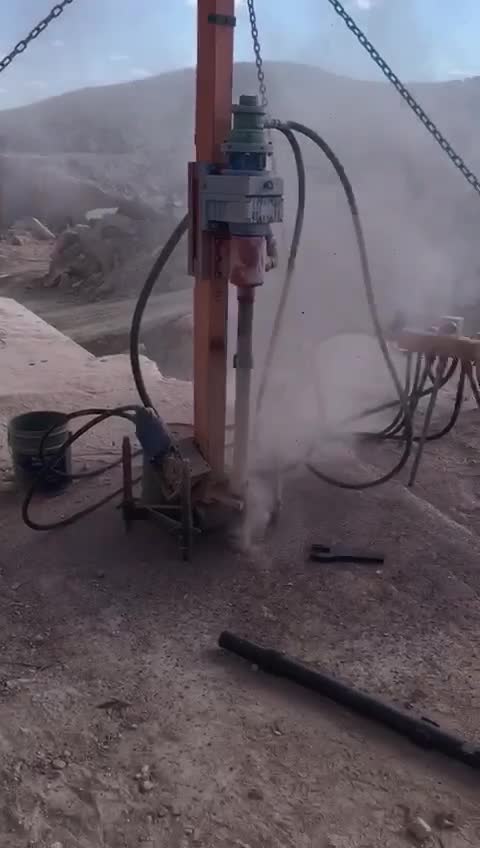

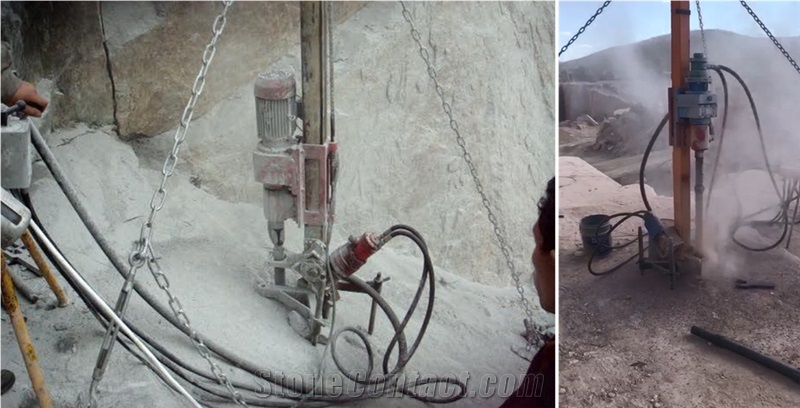

It is driven by compressed air, available for horizontal, vertical and slantwise drilling holes for the passage of diamond wire. The machine is to assist diamond wire saw machine working in stone quarries.
Technical Data
Parameters |
Unit |
QDZJ-90 |
Advance device |
Pneumatic motor, reducer |
|
The hole hammer |
65-90 |
|
Minimum air pressure |
Mpa |
0.5-0.7 |
Total compressed air consumption |
m3/min |
11-13 |
Max. Depth of Drilling |
M |
35-40 |
Drilling speed |
m/h |
6-8 |
Adjust height of the down jack |
mm |
220 |
Track travel |
m |
1 |
The rotation of drilling rod |
Pneumatic motor, reducer |
|
Drilling direction |
Any direction |
|
Total weight (without hammer) approx |
Kg |
380 |
Pneumatic control panel |
remote control, manual change direction |
|
Diameter of drilling |
mm |
65-90 |
Processed Stone Photos
