Hybrid LM SEMI-AUTOMATIC MITRE SAW / MOBILE BRIDGE SAW
FOB Price:
Type:
Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting
Supplier
Main Product:
CNC Bridge Saws , CNC Work Center|
Machinery Function Features
Compact MonoBlock structure build in electro-welded steel, which is treated with Hot Dip Galvanizing.
Accessories
Automatic movement X axis
Manual movement Y axis by handwheel
Manual movement Z axis by handwheel
Pneumatic clamps for locking piece
Rear pneumatic stops for positioning the narrow work pieces
Worktable surface scratch resistant sintered material
Tool ½ Gas connection with water flow inside
Inverter control speed tool
Device for cutting short pieces
Optionals
Table extensions
Wood cover
Technical Data
Parameters |
Unit |
Hybrid LM |
Main motor power |
kw |
8.8 |
Approximate weight |
Kg |
2000 |
Standard voltage |
V |
400V - 230V (USA) |
Machine width (W) |
mm |
1620 |
Inverter control speed tool |
rpm |
6000 |
Worktable dimensions |
mm |
3280 x 1050 |
Blade bore size |
mm |
50 |
Y axis stroke |
mm |
1000 |
Z axis stroke |
mm |
260 |
Max. depth cutting |
mm |
50 |
Standard frequency |
Hz |
50 - 60 (USA) |
Machine height (H) |
mm |
2060 |
Diamond blade diameter |
mm |
350 |
Main motor rotation speed |
r/min |
1400 |
X axis travel |
mm |
3350 |
Machine length (L) |
mm |
4690 |
Components
-

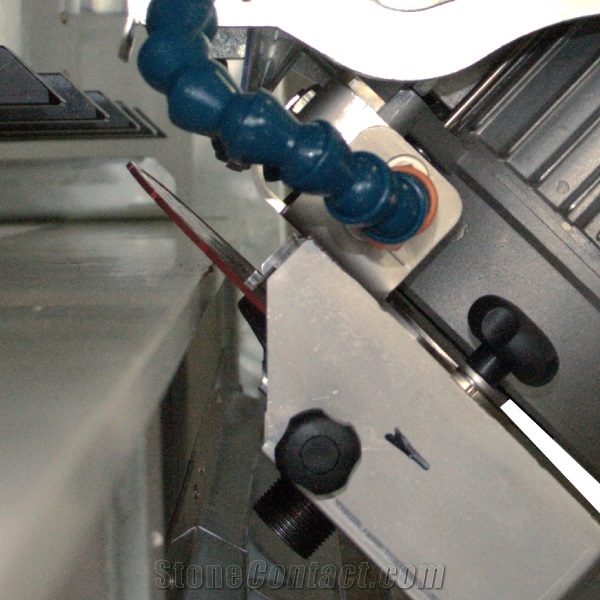

45 degree cutting
-

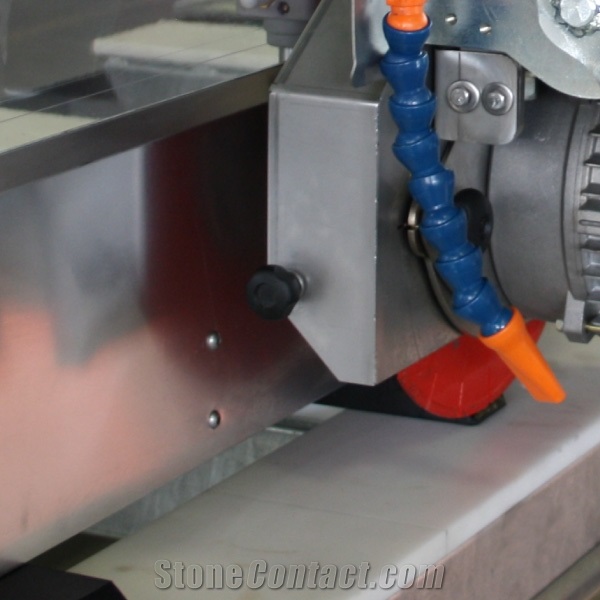

0 degree cutting
