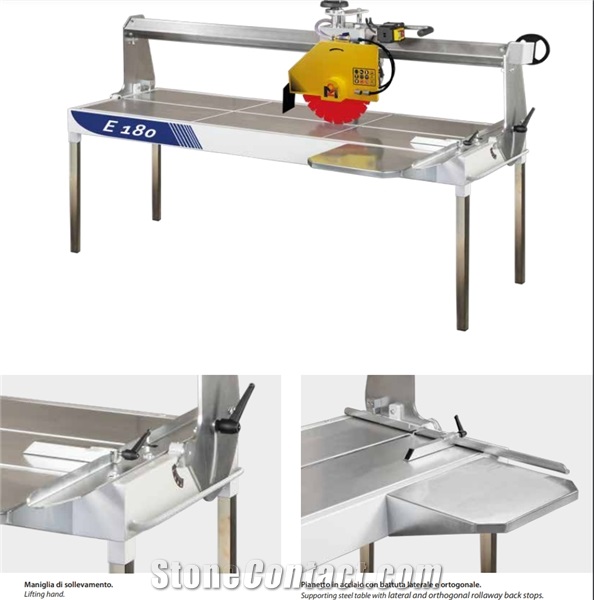

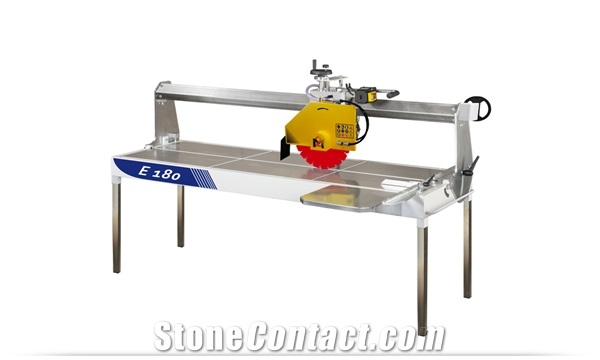

Euromec 130/180 Manual Bench Saw with Fixed Bridge for Cutting Marble, Granite, Quartz , Ceramic
FOB Price:
Type:
Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting
Supplier
Main Product:
CNC Bridge Saws , CNC Work Center|
Machinery Function Features

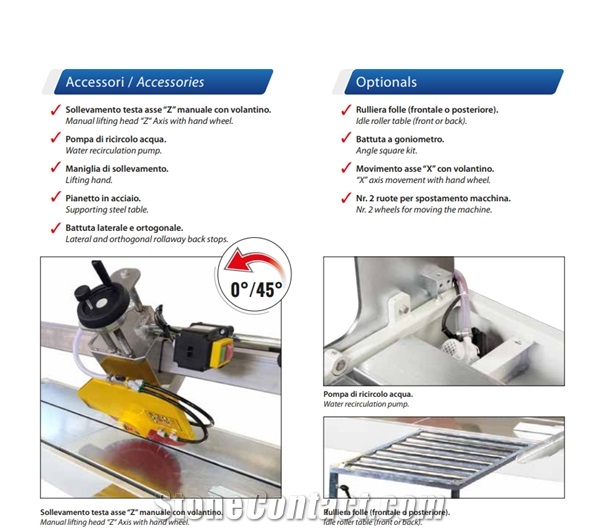

Accessories
Manual lifting head “Z“ Axis with hand wheel.
Water recirculation pump.
Lifting hand.
Supporting steel table.
Lateral and orthogonal rollaway back stops.
Optionals
Idle roller table (front or back).
Angle square kit.
“X” axis movement with hand wheel.
Nr. 2 wheels for moving the machine.
Technical Data
Parameters |
Unit |
E130 |
E180 |
Diamond blade diameter |
mm |
350 |
350 |
Machine length (L) |
mm |
1790 |
2450 |
Max. cutting spindle tilting angle |
° |
0 / 45 |
0 / 45 |
Main motor rotation speed |
r/min |
2800 |
2800 |
Blade bore size |
mm |
30 |
30 |
Max stone thickness |
mm |
80 |
80 |
Max. vertical stroke Z axis |
mm |
90 |
90 |
Machine height (H) |
mm |
1450 |
1450 |
Main motor power |
kw |
2.2 |
2.2 |
X axis travel |
mm |
1300 |
1800 |
Approximate weight |
Kg |
123 |
158 |
Machine width (W) |
mm |
700 |
750 |
