Eclipse SEMI-AUTOMATIC BENCH SAW WITH FIXED BRIDGE FOR CUTTING MARBLE, GRANITE AND CERAMIC
FOB Price:
Type:
Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting
Supplier
Main Product:
CNC Bridge Saws , CNC Work Center|
Machinery Function Features

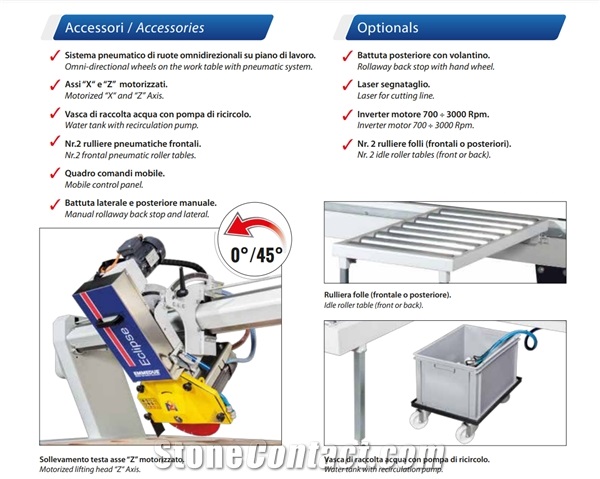

Accessories
Omni-directional wheels on the work table with pneumatic system.
Motorized “X“ and “Z” Axis.
Water tank with recirculation pump.
Nr.2 frontal pneumatic roller tables.
Mobile control panel.
Manual rollaway back stop and lateral.
Optionals
Rollaway back stop with hand wheel.
Laser for cutting line.
Inverter motor 700 ÷ 3000 Rpm.
Nr. 2 idle roller tables (front or back).
Technical Data
Parameters |
Unit |
Eclipse |
Main motor rotation speed |
r/min |
1400 / 2800 (Opt. 700 ÷ 3000 with inverter) - 1700 / 3400* (Opt. 700 ÷ 3000 with inverter) |
Machine width (W) |
mm |
2300 |
Blade bore size |
mm |
35 |
Max stone thickness |
mm |
150 |
Z Axis travel |
mm |
200 |
Diamond blade diameter |
mm |
300 - 500 |
Main motor power |
kw |
5.5 - 7.5 / 7.5 - 10 |
Approximate weight |
Kg |
1250 |
Standard voltage |
V |
400 |
Standard frequency |
Hz |
50 |
Max. cutting spindle tilting angle |
° |
0 / 45 |
Machine height (H) |
mm |
2000 |
Machine length (L) |
mm |
4740 |
X axis travel |
mm |
3400 |
