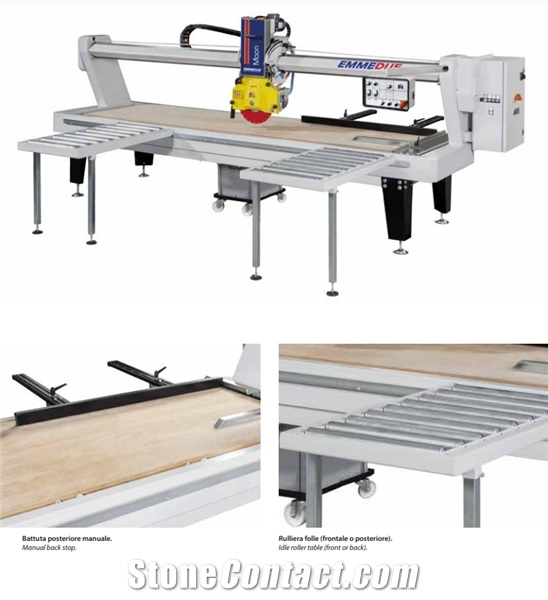

Moon Semi-Automatic Bench Saw with Fixed Bridge for Cutting Marble, Granite, Quartz, Ceramic
FOB Price:
Type:
Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
Usage:
Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting
Supplier
Main Product:
CNC Bridge Saws , CNC Work Center|
Machinery Function Features

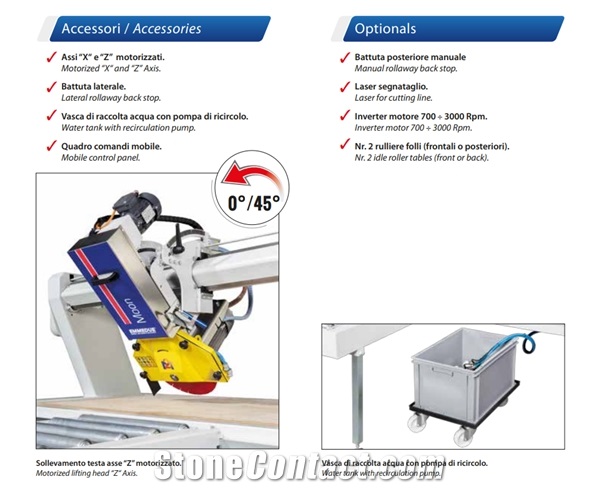

Accessories
Motorized “X“ and “Z” Axis.
Lateral rollaway back stop.
Mobile control panel
Water tank with recirculation pump.
Optionals
Manual rollaway back stop.
Laser for cutting line.
Inverter motor 700 ÷ 3000 Rpm.
Nr. 2 idle roller tables (front or back).
Technical Data
Parameters |
Unit |
Moon |
Blade bore size |
mm |
35 |
Standard frequency |
Hz |
50 |
Approximate weight |
Kg |
1150 |
X axis travel |
mm |
3400 |
Machine width (W) |
mm |
1150 |
Main motor rotation speed |
r/min |
1400 / 2800 (Opt. 700 ÷ 3000 con inverter) 1700 / 3400* (Opt. 700 ÷ 3000 with inverter) |
Z axis stroke |
mm |
200 |
Machine length (L) |
mm |
4740 |
Machine height (H) |
mm |
2000 |
Diamond blade diameter |
mm |
300 - 500 |
Main motor power |
kw |
5.5 - 7.5 / 7.5 - 10 |
Max. cutting spindle tilting angle |
° |
0 / 45 |
Max stone thickness |
mm |
150 |
Standard voltage |
V |
400 |
