MILLENNIUMCNC 5 axes Indianapolis
FOB Price:
Type:
Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Sandstone, Travertine
After-Sale
Warranty:12 Months
Supplier
Eatablished :Dec 31,2000
Main Product:
Bridge Saws, Finishing Work Centers, Edge Polishers, Complementary Equipment|
You may also like
Machinery Function Features

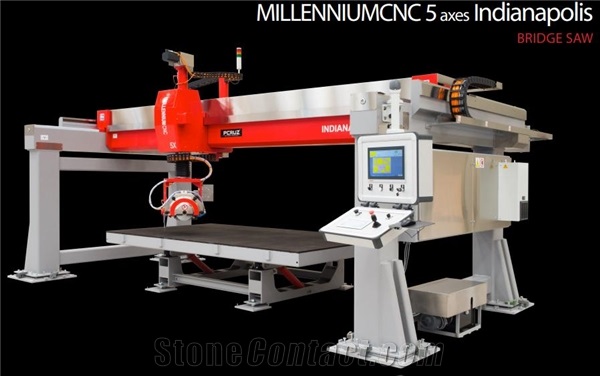

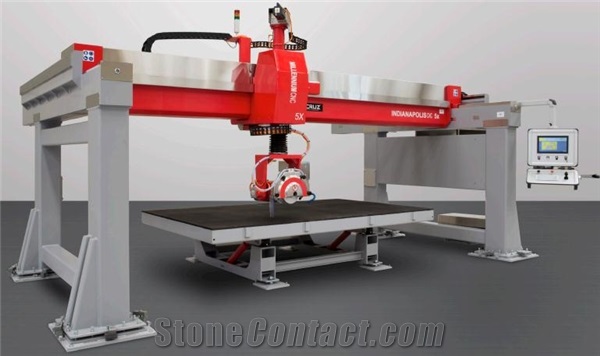

MILLENNIUMCNC 5 axes Indianapolis is a new concept bridge saw designed by PCruz. Our team of engineers and designers has worked tirelessly for years to create and refine this concept which will allow fabricators to customize machines to satisfy all their cutting needs in the future.
This machine was engineered on the foundation of our top-ranking bridge saw MILLENNIUMCNC 5 axes Monoblock and shares all of its top-level features. Coupled with the possibility of further modifications, this makes MILLENNIUMCNC 5 axes Indianapolis the bridge saw of choice for many fabricators.
Technical Data
Parameters |
Unit |
Indianapolis |
Vertical stroke speed (Z displacement speed) |
m/min |
4 |
Machine width |
mm |
3910 |
Cooling water requirement(1.5 bar min. pressure) |
L/min |
10-15 |
Voltage / Frequency |
V / Hz |
220 or 480 / 60 |
Machine weight |
kg |
6950 |
Main Motor Power |
kw |
11 |
Transversal stroke speed (Y displacement speed) |
m/min |
30 |
Machine length |
mm |
6250 |
Head raising/lowering stroke(Z axis travel) |
mm |
65 |
Bridge transversal stroke(Y axis travel) |
mm |
2000 |
Disc diameter |
mm |
350-400 |
Speed Control |
kw |
15 |
Horizontal stroke(X axis travel) |
mm |
3300 |
Horizontal stroke speed(X axis displacement speed) |
m/min |
30 |
Machine height |
mm |
3100 |
Hydraulic station motor power |
kw |
1.5 |
