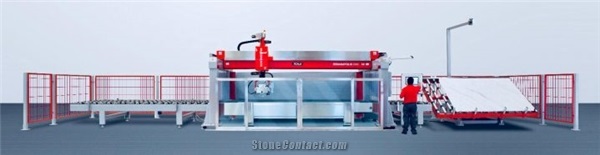

BRIDGE SAW MillenniumCNC 5 axes
FOB Price:
Type:
Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Sandstone, Travertine
After-Sale
Warranty:12 Months
Supplier
Eatablished :Dec 31,2000
Main Product:
Bridge Saws, Finishing Work Centers, Edge Polishers, Complementary Equipment|
Technical Data
Parameters |
Unit |
Indianapolis High Production |
Machine width |
mm |
3910 |
Speed control |
kw |
15 |
Head raising/lowering stroke(Z axis travel) |
mm |
65 |
Voltage / Frequency |
V / Hz |
220 or 480 / 60 |
Hydraulic station motor power |
kw |
1.5 |
Vertical stroke speed (Z displacement speed) |
m/min |
4 |
Main motor power |
kw |
11 |
Cooling water requirement(1.5 bar min. pressure) |
L/min |
10-15 |
Horizontal stroke speed(X axis displacement speed) |
m/min |
30 |
Transversal stroke speed (Y displacement speed) |
m/min |
30 |
Horizontal stroke(X axis travel) |
mm |
3300 |
Machine weight |
kg |
11500 |
Bridge transversal stroke(Y axis travel) |
mm |
2000 |
Machine length |
mm |
15500 |
Machine height |
mm |
3100 |
