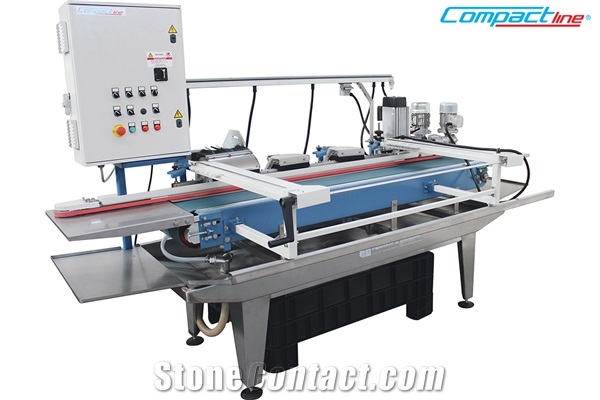

MSG/4 - MACHINE FOR STEPS CHAMFERING

FOB Price:

Type: Stone Factory MachinesStone Finishing, Profiling MachinesEdge Profiling, Polishing Machine
Usage: Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting

Supplier

Ferrari & Cigarini SRL

Ferrari & Cigarini SRL
CompactLine

ItalyItaly

Main Product:

Ceramic Plants And Equipments, Cutting Machines, Mosaic Machines, Polishing Machine|

Contact supplier

Start Order

You may also like
Revolution - Combined Round Bevelling and Flat Edge Polishing Machine
Revolution - Combined Round Bevelling and Flat Edge Polishing Machine
QZM3000-1 Multi-Performance Edge Profiling Machine
QZM3000-1 Multi-Performance Edge Profiling Machine
Automatic Edge Profiling Machine, Edge Polishing Machine
Automatic Edge Profiling Machine, Edge Polishing Machine
12 Heads Vertical Almighty Edge Polishing Edge - Profiling Machine
12 Heads Vertical Almighty Edge Polishing Edge - Profiling Machine
HLMBJ Line Stone Countertop Sink Hole Profile Edge Polishing Machine
HLMBJ Line Stone Countertop Sink Hole Profile Edge Polishing Machine
  • Overview
Machinery Function Features

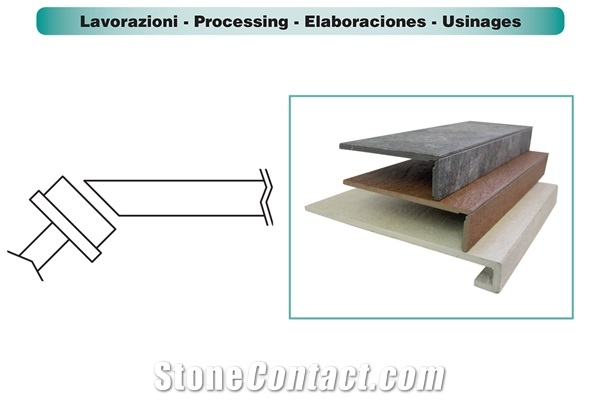

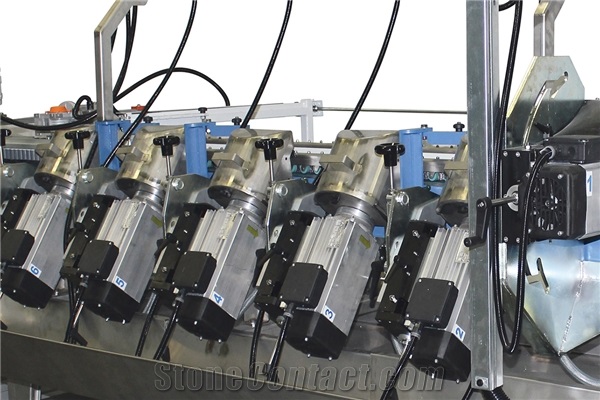

Automatic machine with 2, 3, 4, 5 or 6 motor-spindles to bevel at 45° the slabs in gres porcelain, marble and stone which are necessary for the composition of steps.
Technical Data
Parameters
Unit
MSG/4
Polishing spindle rotation speed
r/min
2800
Min. processing width
mm
35
Grinding spindle power
kw
2.2
Voltage
V/hz
400 V 50Hz
Conveyor Belt width
mm
350
Machine overall width
mm
2980
Machine overall height
mm
1800
Hydraulic pump power
kw
1x0,37
Belt advancement power
kw
0,25
Water consumption
L/h
200
Max. processing thickness
mm
30
Grinding tool diameter
mm
140
Calibrating spindle rotation speed
r/min
2800
Approx. Weight
Kg
400
Min. workable length of the single piece
mm
35
Machine overall length
mm
1550
