MLC/6 - EDGE POLISHING MACHINE
FOB Price:
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesEdge Profiling, Polishing Machine
Usage:
Granite, Marble, Limestone, Basalt, Quartzite
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting
Supplier
Main Product:
Ceramic Plants And Equipments, Cutting Machines, Mosaic Machines, Polishing Machine|
You may also like
Machinery Function Features

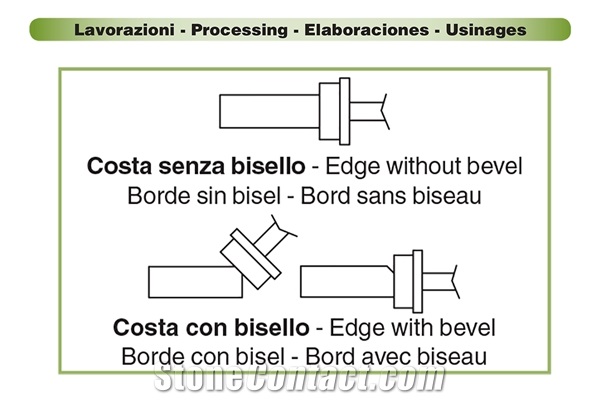

Machine to polish and bevel the edge of marble, granite, agglomerates. It is made of 4 polishing spindles and 2 spindles at 45° for chamfering.
The spindles have a higher power and they are able to mount any tool, both abrasive and diamond ones. The water injection comes from the centre of tool for a better efficiency. All spindles have a pneumatic control, driven by P.L.C.
Technical Data
Parameters |
Unit |
MLC/6 |
Min. workable length of the single piece |
mm |
40 |
Standard diameter of chamfering wheels |
mm |
125 |
Min. processing width |
mm |
40 |
Machine overall width |
mm |
3780 |
Voltage |
V/Hz |
400 V 50Hz |
Standard diameter of polishing wheels |
mm |
125 |
Belt advancement power |
kw |
0,37 |
Water consumption |
L/h |
200 |
Max. processing thickness |
mm |
30 |
Grinding tool diameter |
mm |
125 |
Approx. Weight |
Kg |
600 |
Calibrating spindle rotation speed |
r/min |
2800 |
Polishing spindle rotation speed |
r/min |
2800 |
Grinding spindle power |
kw |
2.2 |
Machine overall length |
mm |
1450 |
Machine overall height |
mm |
1800 |
Conveyor Belt width |
mm |
350 |
Hydraulic pump power |
kw |
1x0,37 |
Processed Stone Photos
-

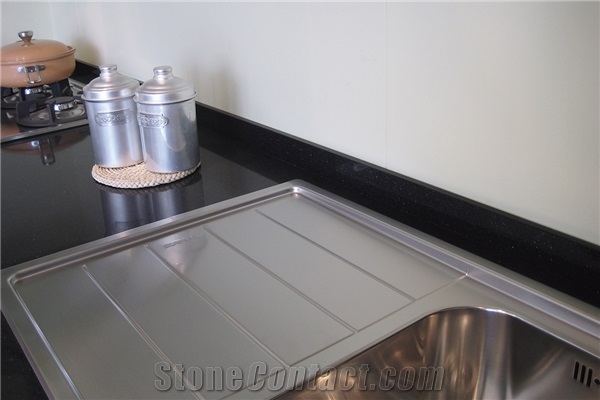

Edge details
-

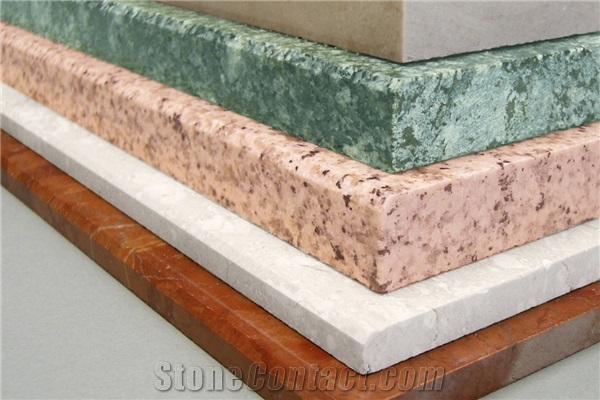

Counter top edges, finished
