MVB/4 AMINEUS - Automatic Machine for Kitchen and Bathroom Tops, Steps, Bullnose profiling
FOB Price:
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesEdge Profiling, Polishing Machine
Usage:
Granite, Marble, Limestone, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting
Supplier
Main Product:
Ceramic Plants And Equipments, Cutting Machines, Mosaic Machines, Polishing Machine|
Machinery Function Features

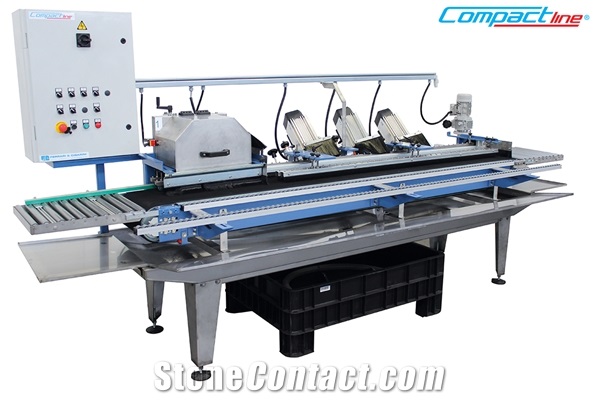

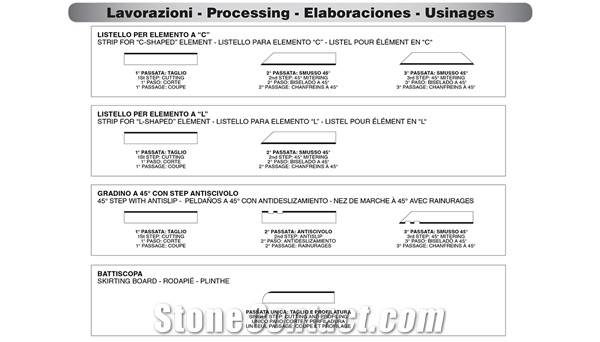

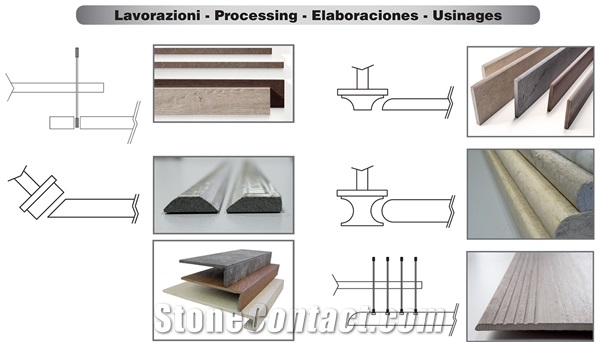

The new MVB/4 is an automatic machine able to carry out both the cutting and the profiling of skirting pieces, doorsteps and window sills, with bullnose and half bullnose edges, in a single passage and with just one movement of the piece. Alternatively, it can make45° mitering for production of kitchen and bathroom top and steps.
MVB/4 makes the production of high quality elements possible on ceramic, gres porcelain, marble, granite and agglomerate materials, in a fast and simple way, with just one automated compact machine
Technical Data
Parameters |
Unit |
MVB/4 AMINEUS |
Diameter of the drip board saw blade |
mm |
300 |
Voltage |
V/Hz |
400 V-50HZ |
Approx. Weight |
Kg |
650 |
Standard diameter of polishing wheels |
mm |
140 |
Max. processing thickness |
mm |
20 |
No. calibrating/shaping/cutting spindles |
nr |
1 |
Total power |
kw |
11 |
Machine overall height |
mm |
1800 |
Hydraulic pump power |
kw |
0,37 |
Dimension obtained |
mm |
30 to 120 |
Conveyor Belt width |
mm |
350 |
Water consumption |
L/min |
200 |
Grinding tool diameter |
mm |
140 |
Min. processing thickness |
mm |
6 |
Machine overall length |
mm |
2000 |
Machine overall width |
mm |
3800 |
Number of dressing/polishing spindles |
nr |
3 |
