MRC - Bevelling, Rectifying Machine for marble, granite, gres porcelain
FOB Price:
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesLeveling Machine
Usage:
Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite, Sandstone
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting
Supplier
Main Product:
Ceramic Plants And Equipments, Cutting Machines, Mosaic Machines, Polishing Machine|
Machinery Function Features

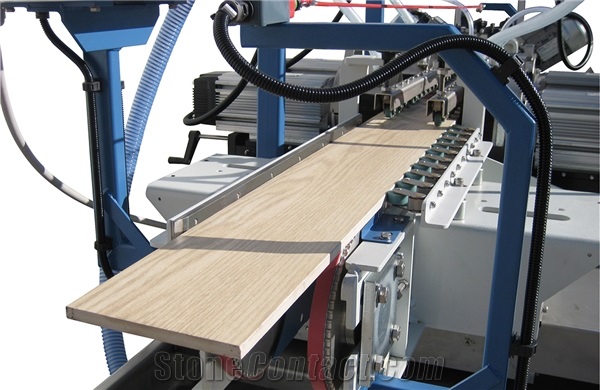

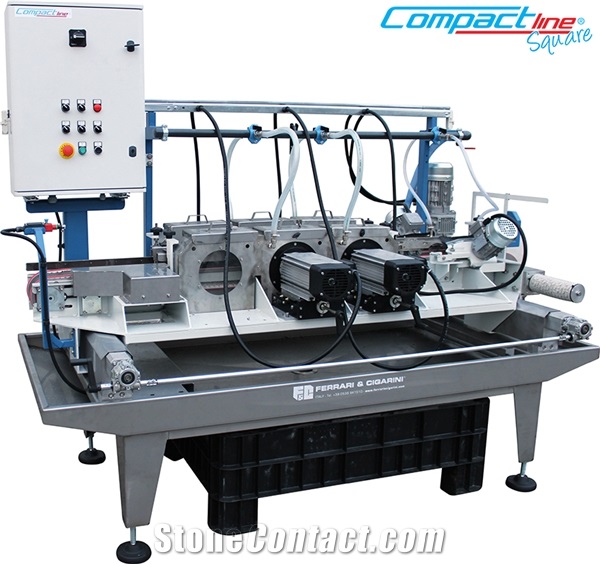

MRC is an automatic machine designed to finish the edge of squared or rectangular material and to bevel the upper edge. It is ideal for marble, granite, gres porcelain, single and double firing, agglomerates and brick.
Technical Data
Parameters |
Unit |
MRC 5/33 2+1 o 3+1 |
Machine overall height |
mm |
1700 |
Voltage |
V/Hz |
400 V 50 Hz |
Max. working thickness |
mm |
30 |
Diameter of tools |
mm |
150 |
Water Consumption |
L/min |
200 |
Machine overall length |
mm |
2350 |
Power of upper bevelling motors |
kW |
2.2 |
Min. working thickness |
mm |
6 |
Approx. Weight |
Kg |
650 |
Conveyor belt feed speed |
m/min |
2-10 |
Minimum workable format |
mm |
50 |
Power of calibrating motors |
kW |
2.2 |
Maximum workable format |
mm |
330 |
Water pump power |
kW |
0.37 |
Machine overall width |
mm |
1350 |
