MRC SMART - Bevelling / Rectifying Machine
FOB Price:
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesLeveling Machine
Usage:
Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting
Supplier
Main Product:
Ceramic Plants And Equipments, Cutting Machines, Mosaic Machines, Polishing Machine|
Machinery Function Features

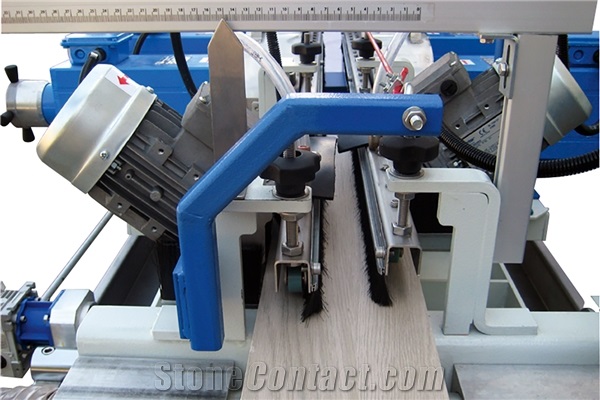

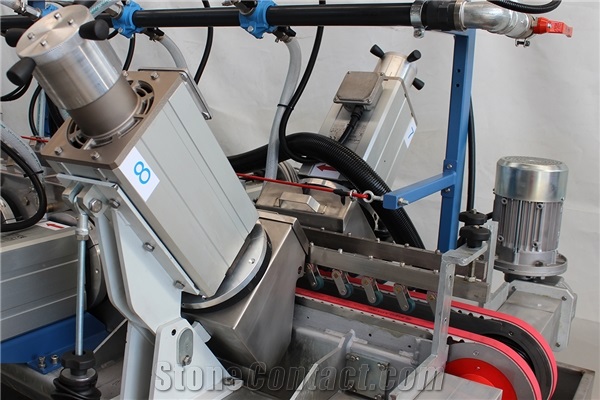

MRC Smart is an automatic machine designed to finish the edge of squared or rectangular material and to bevel the upper edge. It is ideal for marble, granite, gres porcelain, single and double firing, agglomerates and brick.
Compared to MRC, the MRC Smart model has higher productivity since the motors are more powerful and the tools have a larger diameter. It is also equipped with a self-centring guide to align the material in entrance and optimize wheel consumption.
Technical Data
Parameters |
Unit |
MRC SMART 7/60 2+1 o 3+1 |
MRC SMART 10/120 2+1 o 3+1 |
Conveyor belt feed speed |
m/min |
2-10 |
2-10 |
Water requirement |
lit/min |
200 |
200 |
Machine overall length |
mm |
2350 |
2350 |
Minimum workable format |
mm |
70 |
100 |
Approx. Weight |
Kg |
750 |
900 |
Power of upper bevelling motors |
kW |
2.7 |
2.7 |
Maximum workable format |
mm |
600 |
1200 |
Diameter of tools |
mm |
250 |
250 |
Power of calibrating motors |
kW |
2.7 |
2.7 |
Voltage |
V/Hz |
400 V 50 Hz |
400 V 50 Hz |
Machine overall width |
mm |
1900 |
2350 |
Machine overall height |
mm |
1700 |
1700 |
Water pump power |
kW |
0.37 |
0.37 |
