MTB/3 ANTIMUS BABY - Automatic Machine for Cutting and Edge Bevelling
FOB Price:
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesEdge Profiling, Polishing Machine
Usage:
Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite, Sandstone
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting
Machinery Function Features

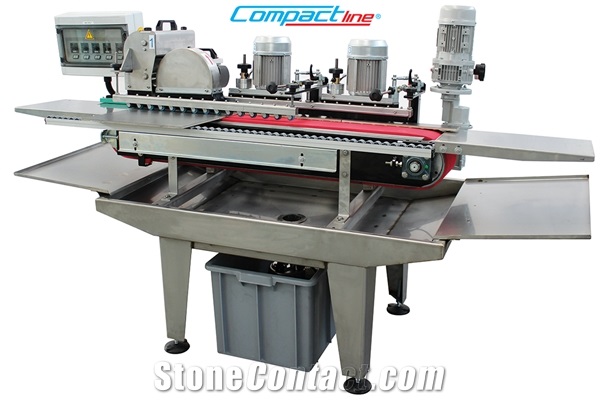

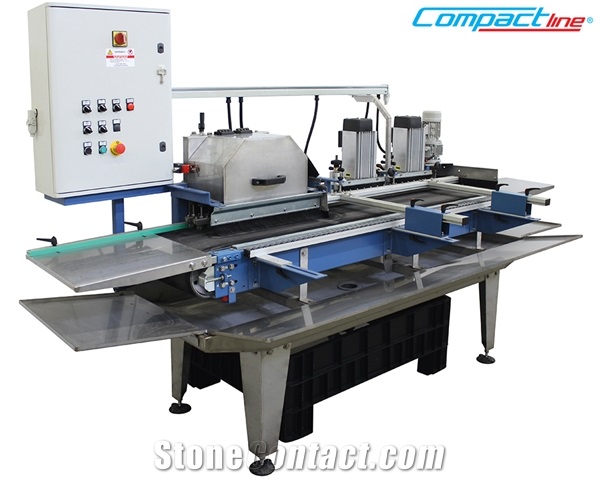

AUTOMATIC MACHINE FOR CUTTING AND EDGE-BEVELLING
MTB/3 ANTIMUS baby is the first and only compact, automatic machine able to cut and profile skirting pieces in a single passage!
It is a revolutionary machine that meets the needs of ceramic, marble and stone laboratories, with small to medium productions.
Until now such workshops either had to use two separate manual machines (one for cutting and one for edge-profiling) or rely upon external service companies, with an incredible loss of time.
MTB/3 ANTIMUS - AUTOMATIC MACHINE FOR CUTTING AND EDGE-BEVELLING
PATENTED
CUTTING AND PROFILING IN ONLY 1 STEP AND WITH ONLY 1 MACHINE
MTB/3 ANTIMUS is the first and only compact, automatic belt machine able to carry out in a single passage and with just one movement of the piece, both the cutting and the profiling of the skirting! It is a revolutionary machine that meets the needs of ceramic, marble and stone workshops, with small to medium weekly production needs. Until now such workshops either had to use two separate manual machines (one for cutting and one for edge-profiling) or rely upon external service companies, with an incredible loss of time.
ADVANTAGES OF MTB/3 ANTIMUS SYSTEM
Minimum dimension
Monoblock machine
Low consumption of electric energy
Constancy of production quality
Very low initial investment
Total automation of production cycle

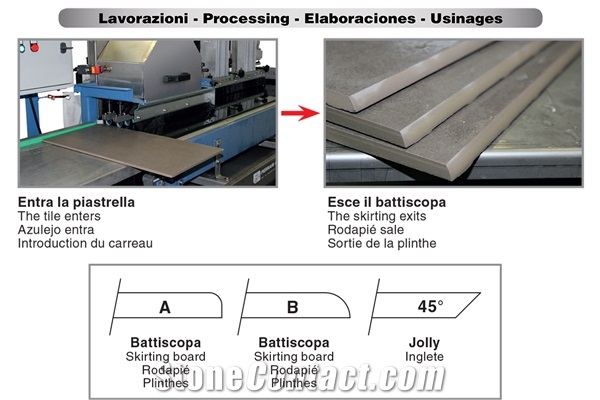

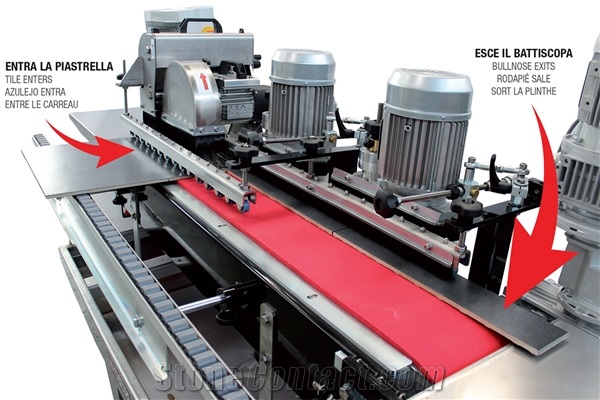

"END WORKING CYCLE": tile enters and bullnose goes out, without any necessary movement from the operator
Technical Data
Parameters |
Unit |
MTB/3 ANTIMUS BABY |
MTB/3 ANTIMUS |
Grinding tool diameter |
mm |
140 |
140 |
Machine overall width |
mm |
2300 |
2950 |
Machine overall length |
mm |
760 |
1000 |
Number of Bevelling/chamfering spindles |
nr |
2 |
2 |
Conveyor Belt width |
mm |
200 |
350 |
Voltage |
V |
400 V-50HZ |
400 V-50HZ |
Total power |
kw |
6 |
8 |
Diameter of the drip board saw blade |
mm |
250 |
300 |
Water consumption |
L/min |
200 |
200 |
Dimension obtained |
mm |
50 a 60 |
50 a 120 |
Number of dressing/polishing spindles |
nr |
2 |
2 |
Min. processing thickness |
mm |
6 |
6 |
Machine overall height |
mm |
1300 |
1800 |
Standard diameter of polishing wheels |
mm |
140 |
140 |
Max. processing thickness |
mm |
12 |
20 |
Approx. Weight |
Kg |
260 |
350 |
No. calibrating/shaping/cutting spindles |
nr |
1 |
1 |
Hydraulic pump power |
kw |
0,37 |
0,37 |
