MTB/5 ANTIMUS - Automatic Machine for Cutting and Edge Bevelling
FOB Price:
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesEdge Profiling, Polishing Machine
Usage:
Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting
You may also like
Machinery Function Features
CUTTING AND PROFILING
IN ONLY 1 STEP AND
WITH ONLY 1 MACHINE

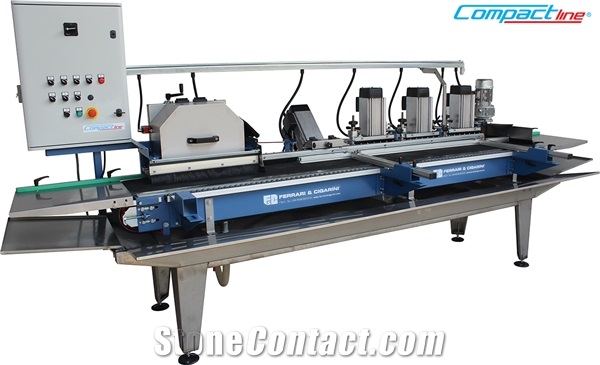

MTB/5 ANTIMUS is the first and only compact, automatic belt machine able to carry out in a single passage and with just one movement of the piece, both the cutting and the profiling of the skirting! It is a revolutionary machine that meets the needs of ceramic, marble and stone workshops, with small to medium weekly production needs. Until now such workshops either had to use two separate manual machines (one for cutting and one for edge-profiling) or rely upon external service companies, with an incredible loss of time.
ADVANTAGES OF MTB/5 ANTIMUS SYSTEM
Minimum dimension
Monoblock machine
Low consumption of electric energy
Constancy of production quality
Very low initial investment
Total automation of production cycle

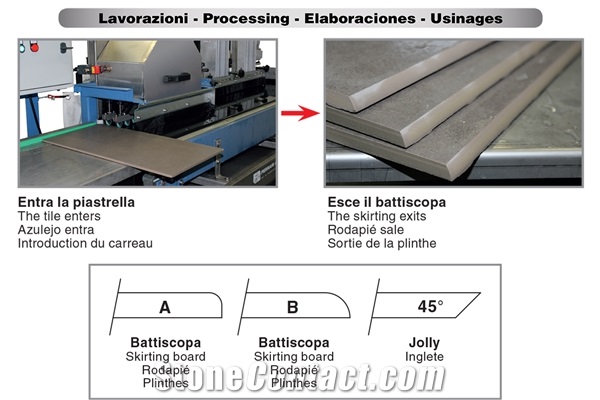

"END WORKING CYCLE": tile enters and bullnose goes out, without any necessary movement from the operator
Technical Data
Parameters |
Unit |
MTB/5 ANTIMUS |
Machine overall height |
mm |
1800 |
Approx. Weight |
Kg |
550 |
Grinding tool diameter |
mm |
140 |
Total power |
kw |
13 |
Water consumption |
L/min |
200 |
Machine overall length |
mm |
1000 |
Min. processing thickness |
mm |
6 |
Number of dressing/polishing spindles |
nr |
4 |
Diameter of the drip board saw blade |
mm |
300 |
Standard diameter of polishing wheels |
mm |
140 |
Conveyor Belt width |
mm |
350 |
Hydraulic pump power |
kw |
0.37 |
No. calibrating/shaping/cutting spindles |
nr |
1 |
Voltage |
V |
400 V-50HZ |
Machine overall width |
mm |
3800 |
Max. processing thickness |
mm |
20 |
Dimension obtained |
mm |
50 - 120 |
