MGP/5 - automatic machine for steps and edging on ceramic, gres porcelain, marble, granite

FOB Price:

Type: Stone Factory MachinesStone Finishing, Profiling MachinesEdge Profiling, Polishing Machine
Usage: Granite, Marble, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting

Supplier

Ferrari & Cigarini SRL

Ferrari & Cigarini SRL

CompactLine

ItalyItaly

Main Product:

Ceramic Plants And Equipments, Cutting Machines, Mosaic Machines, Polishing Machine|

Contact supplier

Start Order

  • Overview
Machinery Function Features

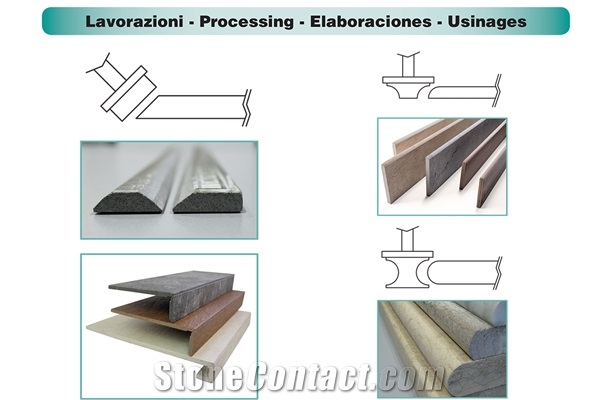

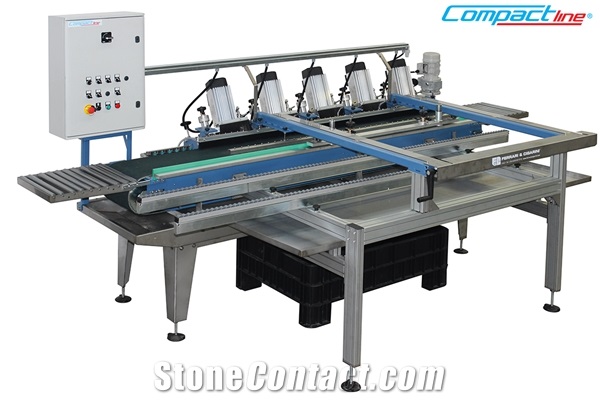

MGP/5 is the new automatic machine for steps and edging on ceramic, gres porcelain, marble, granite and agglomerate materials. It is a revolutionary model that allows two different types of machining with just one automated, compact machine: - a 45° bevel for creating steps. - edging for skirting, doorsteps and window sills, with bullnose and half bullnose edges. MGP/5 consists of 5 motor-spindles for tools, which can be angled to create a 45° bevel for steps or adjusted to an upright position for creating edges. MGP/5 allows to simultaneously operate five different grinding wheels and cut down working time.
Technical Data
Parameters
Unit
MGP/5
Polishing spindle rotation speed
r/min
2800
Calibrating spindle rotation speed
r/min
2800
Total power
kw
15
Approx. Weight
Kg
750
Voltage
V
400 V 50Hz
Bevelling /Chamfering spindle power
kw
2.2
Standard diameter of chamfering wheels
mm
140
Number of Bevelling/chamfering spindles
nr
5
Machine overall width
mm
3800
Machine overall length
mm
2000
Max. processing thickness
mm
30
Minimum format obtained
mm
30
Machine overall height
mm
1800
