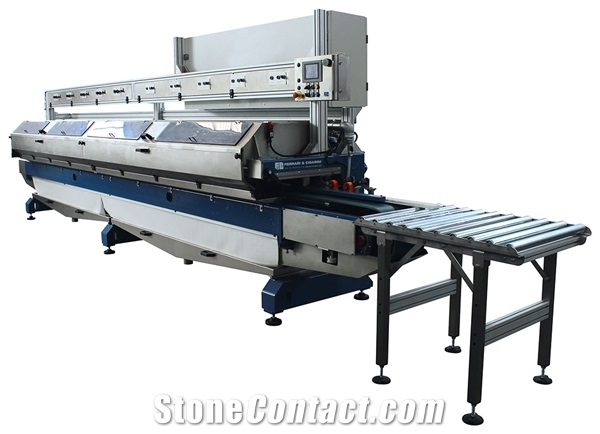

SPL 300/6 - 300/10 - EDGE PROFILING MACHINE
FOB Price:
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesEdge Profiling, Polishing Machine
Usage:
Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting
Supplier
Main Product:
Ceramic Plants And Equipments, Cutting Machines, Mosaic Machines, Polishing Machine|
You may also like
Machinery Function Features
Profiling machines suitable for machining different profiles on ceramic, porcelain stoneware, marble and granite strips.
SPL 300/6 and SPL 300/10 are controlled through a programmable PLC.
Each shaping head is controlled by means of a display through which the position of the tool can be viewed, the polishing heads are pneumatically controlled by means of pressure regulators.
Technical Data
Parameters |
Unit |
SPL 300/6 |
SPL 300/10 |
Total power |
kw |
40 |
65 |
Max. processing width |
mm |
200 |
200 |
Belt advancement speed |
m/min |
1 - 4 |
1 - 4 |
Max. processing thickness |
mm |
30 |
30 |
Machine overall length |
mm |
5300 |
7400 |
Min. processing width |
mm |
40 |
40 |
Min. processing thickness |
mm |
10 |
10 |
Machine overall height |
mm |
1900 |
1900 |
No. calibrating/shaping/cutting spindles |
nr |
6 |
10 |
Number of dressing/polishing spindles |
nr |
6 |
10 |
Machine overall width |
mm |
1700 |
1700 |
Air consumption |
L/min |
100 at 2/3 bar |
150 at 2/3 bar |
Number of Bevelling/chamfering spindles |
nr |
6 |
10 |
Approx. Weight |
Kg |
3000 |
4300 |
Water consumption |
L/min |
20 at 4-6 bar |
20 at 4-6 bar |
