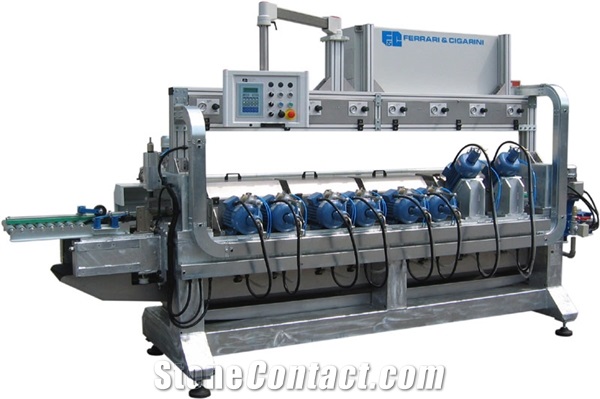

MLZ-Belt machine for continuous polishing, beveling of boards of marble, granite
FOB Price:
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesEdge Profiling, Polishing Machine
Usage:
Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting
Machinery Function Features

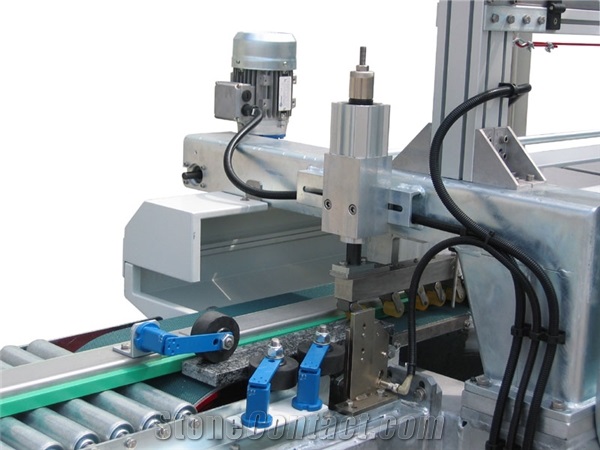

Belt machine for continuous polishing and beveling of boards of marble, granite and agglomerated products. It is available in various versions with a different number of smoothing and beveling mandrils according to the material to be worked. The high power mandrils are suitable for fitting any type of tool, whether abrasive or diamond tipped. For optimum performance, water is injected from the center of the tool. Mandrils are controlled by a P.L.C. system, which can regulate each mandril individually and display machine settings. Each mandril is independent whether electrically or pneumatically controlled. All electric and pneumatic parts are housed in the upper part of the machine and conform to EC regulations. Noise levels comply with noise pollution safety levels.
Technical Data
Parameters |
Unit |
MLZ 40/400 |
MLZ 40/600 |
MLZ PLUS |
Max. processing thickness |
mm |
30 |
30 |
70 |
Belt advancement speed |
m/min |
1 - 4 |
1 - 4 |
1 - 4 |
Machine overall length |
mm |
4430 |
4430 |
6350 |
Machine overall height |
mm |
1200 |
1200 |
2200 |
Approx. Weight |
Kg |
900 |
900 |
2100 |
Machine overall width |
mm |
1055 |
1055 |
3000 |
Min. processing width |
mm |
40 |
40 |
70 |
Number of Bevelling/chamfering spindles |
nr |
6+2 |
6+2 |
Max 11 |
No. calibrating/shaping/cutting spindles |
nr |
6+2 |
6+2 |
Max 11 |
Number of dressing/polishing spindles |
nr |
6+2 |
6+2 |
Max 11 |
Water consumption |
L/min |
120 |
120 |
120 |
Max. processing width |
mm |
400 |
600 |
2000 |
Air consumption |
L/min |
10 |
10 |
20 |
Total power |
kw |
19 |
19 |
25,5 |
Min. processing thickness |
mm |
6 |
6 |
10 |
