Pneumatic Drilling Machine With Displacement (MPF-D) - CERES
FOB Price:
Type:
Stone Quarry MachinesQuarry Drilling MachinePneumatic Drill Machine
Usage:
Granite, Marble, Limestone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting
Supplier
Eatablished :Dec 31,1997
Main Product:
Drilling Machines, Quarry Machines, Loader, Splitting Machinery|
Machinery Function Features

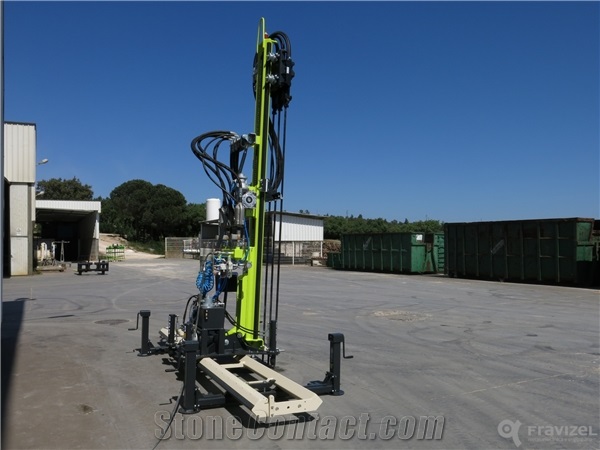

Fixed Drilling Machine with Displacement for cutting blocks. This pneumatic machine is ideal for vertical cuts. It is equipped with adjustable feet. Allows longitudinal and transversal inclination. Flexibility of control position. Water jet opens and closes at the same time as the hammer is activated. It is equipped with 4 hydraulic cylinders that allow side shift.
Technical Data
Parameters |
Unit |
MPF-D2 |
MPF-D3 |
Usable extension rods length |
mm |
2400 |
3200 |
Machine Width |
mm |
1870 |
1870 |
Machine Length |
mm |
4000 |
4000 |
Number of Hammers |
nr |
2 |
3 |
Total weight (without hammer) approx |
Kg |
1130 |
1200 |
Drilling Schematics |
mm |
185/280 |
185/280 |
Machine Height |
mm |
4339 |
4339 |
