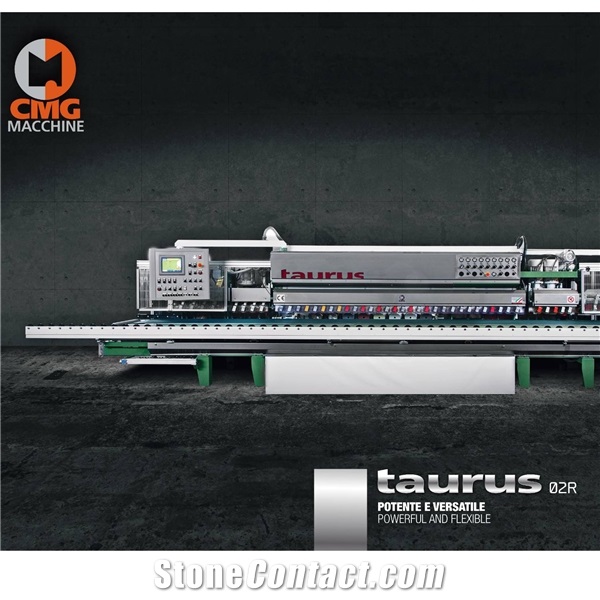

Taurus Edge Polishing Machine
FOB Price:
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesEdge Profiling, Polishing Machine
Usage:
Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Remote troubleshooting
Supplier
Eatablished :Dec 30,1983
Main Product:
Machines For Granite Marble, Edge Polishing Machine, Used Machines, Polishing Machine, Edge Profiling In Line, #V-Groove|
Machinery Function Features
TAURUS
HIGH POWER, HIGH-LEVEL RESULTS
The Taurus edge polishing machine is composed of the best materials on the market:
22 mm steel bench, covered with rectified stainless steel plates;
all the machine parts which are in contact with water are in stainless steel or chromium or zinc;
the belt is guided on its lower side by a “V” belt to avoid the risk of lateral shifting;
adjustable control panel to control the processing phases at each point of the machine and 10 inches touch screen display;
latest generation lubrication system with automatic monitoring of greasing times and failure reporting.
Technical Data
Parameters |
Unit |
TAURUS 02/6R |
TAURUS 02/8R |
TAURUS 100/10R |
No. calibrating/shaping/cutting spindles |
nr |
6 |
8 |
10 |
Linear tools Diameter dimension |
mm |
130 / 150 |
130 / 150 |
130 / 150 |
Diameter of the drip board saw blade |
mm |
300 |
300 |
300 |
Water consumption |
L/min |
160 |
180 |
200 |
Machine overall width |
mm |
2000 |
2000 |
2000 |
Max. diameter of calibrating wheel |
mm |
200 |
200 |
200 |
Number of Bevelling/chamfering spindles |
nr |
2+2 |
2+2 |
2+2 |
Max. processing thickness |
mm |
100 |
100 |
100 |
Belt advancement speed |
mm/min |
10 / 2300 |
10 / 2300 |
10 / 2300 |
Number of dressing/polishing spindles |
nr |
6 |
8 |
10 |
Min. processing thickness |
mm |
15 |
15 |
15 |
Machine overall height |
mm |
2300 |
2300 |
2300 |
Approx. Weight |
Kg |
5500 |
6000 |
6700 |
Total power |
kw |
34 |
30 |
36 |
Machine overall length |
mm |
6000 |
6500 |
7000 |
