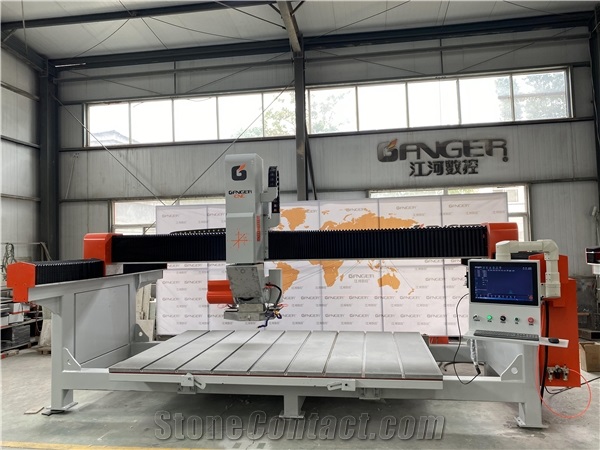

GQ-3220D 5 Axis CNC Bridge Cutting Machine
FOB Price:$27999-28500
Type:
Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite, Sandstone
After-Sale
Lead Time:
25days
Warranty:12 Months
Install and Guarantee:Remote guidance installation
Maintenance:Remote troubleshooting
Supplier
Eatablished :Mar 10,2021
Main Product:
Gq-3220d, Gq-3220c, Gq-3220b, Gsy-3015a, Gsy-3015b, Gsy-3015d|
Machinery Function Features
Features:
XYZAC five axis, A axis 0 to 90 degrees automatic rotation, C axis 0 to 360 degrees automatic rotation.

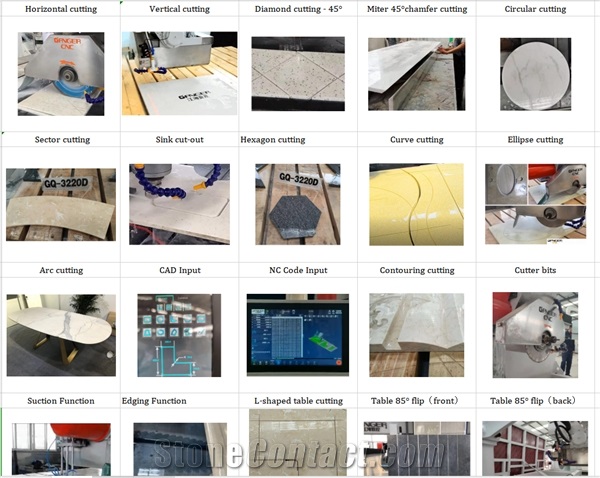

Cutting straight line, circular, arc, grid point.
slotting, edging, beveling, chamfering and cutting;
Curved surface, engraving, cutting holes, and contouring are all available.
By infrared ray to confirm the position of the workpiece.
Intelligent on-demand typesetting, saving time and materials.
Applicable industry & material
Applicable industry: sintered stone application industry, fabricated building materials industry, home decoration materials industry, cutting marble, artificial stone, quartz stone and other materials.
Applicable material: sintered stone, ceramic plate, quartz stone, marble, etc.
Technical Parameters
Model
GQ-3220C
X/Y/Z Axis working size
3200*2000*500mm
Diameter of blade
350mm
Working table size 3200x2000mm
Blade Motor power 15KW
Total power 29KW
Rotation speed of blade 3000/6000rpm (Optional, adjustable)
A axis rotation angle 0-90°
C axis rotation angle 0-360°
Control system GANGER
Gross weight 4500KGS
Technical Data
Parameters |
Unit |
GQ-3220D |
Head raising/lowering stroke(Z axis travel) |
mm |
500 |
Max. revolutions of the spindle unit |
r/min |
3000/6000 |
Bridge transversal stroke(Y axis travel) |
mm |
2000 |
Worktable turn-over degree |
° |
85° |
Disc motor power |
kw |
15 |
Disc diameter |
mm |
350 |
Installed electrical power |
kw |
29 |
Dimensions of the work table(L×W) |
mm |
3200x2000 |
Horizontal stroke(X axis travel) |
mm |
3200 |
C axis blade rotation |
° |
0-360° |
Tools holder head inclination(A axis blade rotation) |
° |
0-90° |
Approximate weight without table |
Kg |
4500 |
Software
1

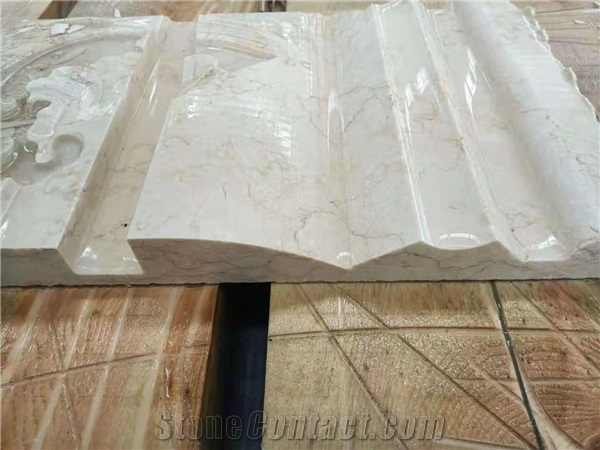

Processed Stone Photos
-
1
Components
-
11
¥Payment Required
Consumables
-
1
1
Video
Install Video
Operation Video
