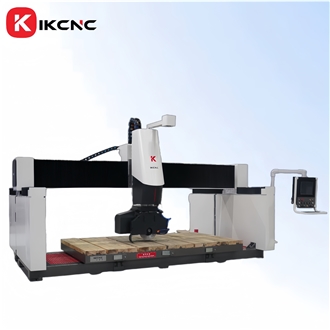

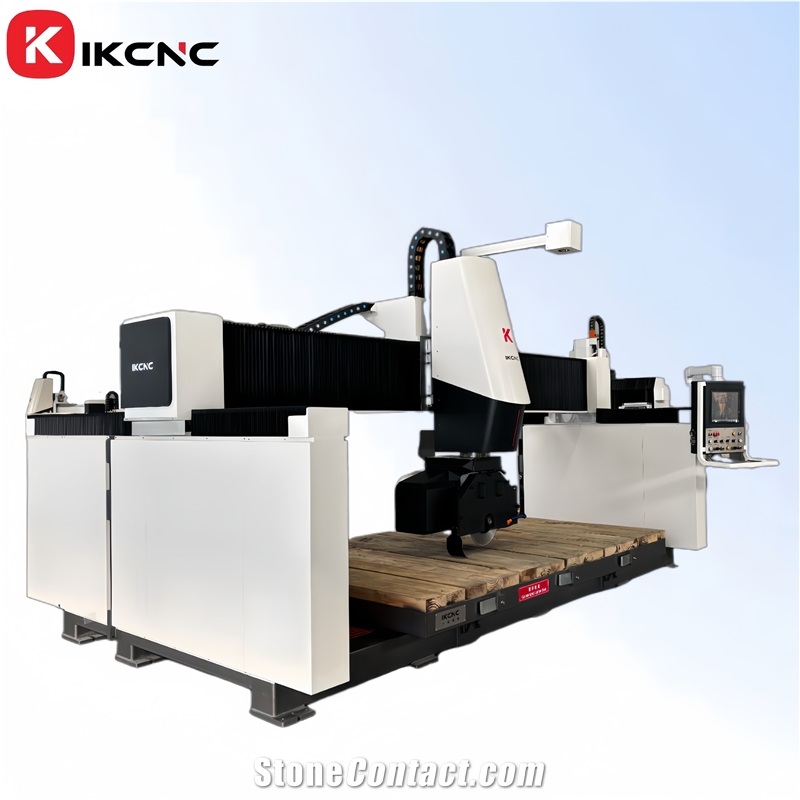

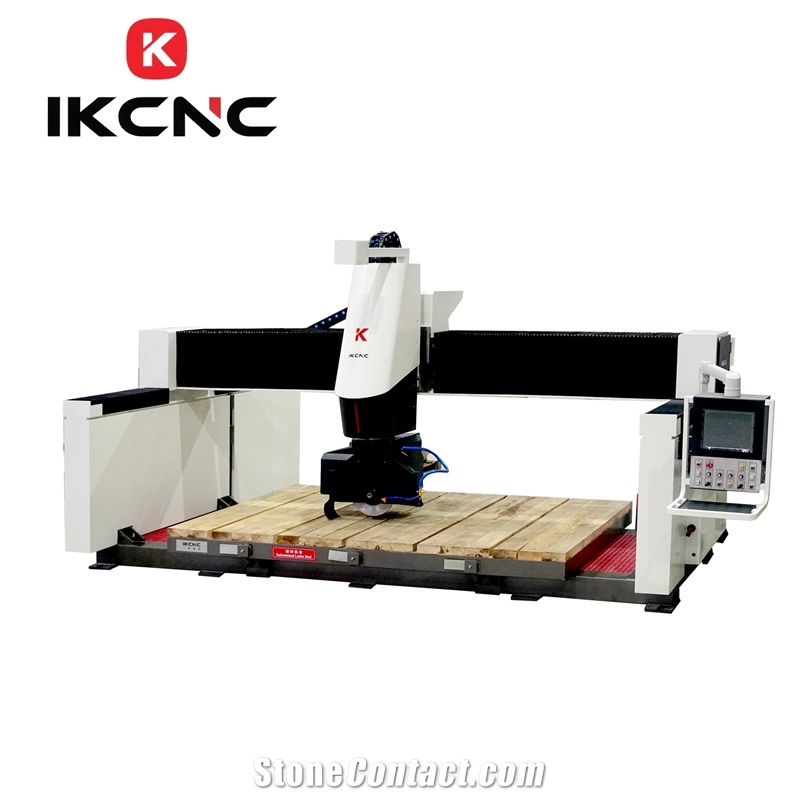

5 Axis Bridge Cutting Machine CNC Bridge Saw IKCNC-3520-700
FOB Price:$29000-30500
Supplier
Eatablished :Dec 26,2014
Main Product:
5 Axis CNC Bridge Saw, 4+1 CNC Bridge Saw , 45° Miter Cutter, Stone CNC Engraving Machine, Cutting And Edging Work Center, Trepanning Machine|
5 Axis CNC Bridge Saw
The machine is an integrated five-axis bridge cutting machine, for the different specifications of the plateand a variety of special-shaped copying processing(such as polygon, triangle, fan, countertop, oval,diamond, circle, rim of horse's belly, chamfer at anyangle, special-shaped copying and engraving). lt has the advantages of fast speed, high cutting precision, simple and intelligent operation, suitable for cutting slab, marble, granite, quartz stone, and other stone processing. lt is the first choice of project and stone processing enterprises.
Parameters |
Unit |
IK-3520-700 |
Tools holder head inclination(A axis blade rotation) |
° |
0-90 |
Vertical cutting spindles motor power |
kw |
18.5 |
Number of vertical cutting spindles |
nr |
1 |
Machine width |
mm |
3100 |
Disc diameter |
mm |
200/300(optional) |
Crossbeam motor power |
kw |
1.5 |
Disc motor power |
kw |
35 |
C axis blade rotation |
° |
365 |
Max.width of the cut slab |
mm |
2000 |
Bridge transversal stroke(Y axis travel) |
mm |
2000 |
Hydraulic station motor power |
kw |
2.2 |
Max. cutting depth |
mm |
22 |
Air consumption |
L/min |
20 |
Dimensions of the work table(L×W) |
mm |
3500*2000 |
Head raising/lowering stroke(Z axis travel) |
mm |
500 |
Max. revolutions of the spindle unit |
r/min |
0-4000 |
Head motor power |
kw |
18.5 |
Horizontal stroke speed(X axis displacement speed) |
m/min |
20 |
Machine length |
mm |
5900 |
Installed electrical power |
kw |
1.5 |
Worktable Weight |
T |
6.2 |
Transversal stroke speed (Y displacement speed) |
m/min |
20 |
Machine height |
mm |
3300 |
Worktable turn-over degree |
° |
0-90(automatic) |
Max.length of the cut slab |
mm |
3500 |
Cooling water requirement(1.5 bar min. pressure) |
m3/h |
3 |

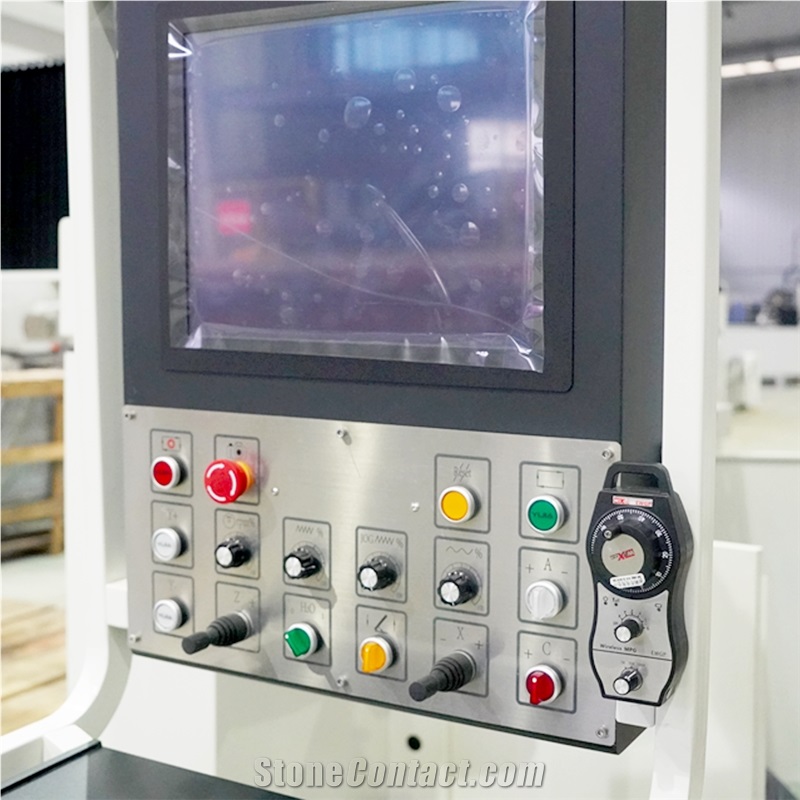

The system: CUTCAM
System function: Includes photo, intelligent layout, automatic adsorptionfunction.
Features: efficient andconvenient,save time andlabor
3D copying features: All kinds of lines are generated directly in the software, Simple and intuitive, no programming required
Custom function: Various sizes can be customized according to customer needs, and complex graphics can be cut by entering simple parameters. No need to import CAD drawing, simple and convenient, greatlyimprove production efficiency.

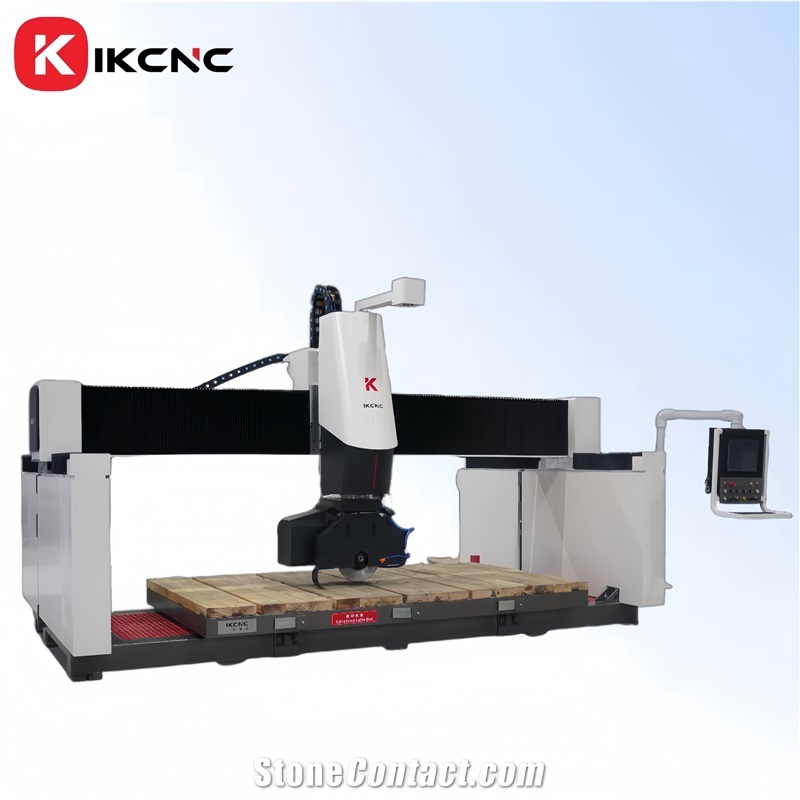

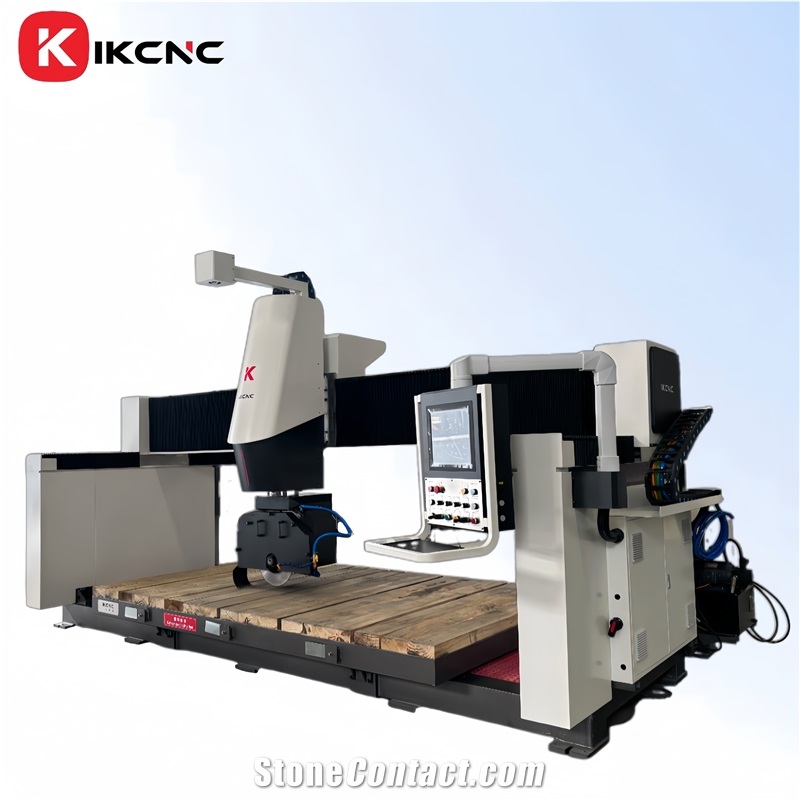

Ikcnc 5 Axis CNC Bridge Saw
The machine is an integrated five-axis bridge cutting machine, for the different specifications of the plate and variety of special-shaped copying processing(such as polygon, triangle, fan, countertop, oval, diamond, circle, rim of horse's belly, chamfer at any angle, special-shaped copying and engraving). It has the advantages of fast speed, high cutting precision, simple and intelligent operation, Suitable for cutting slab, marble, granite, quartz stone, and other stone processing. It is the first choice of project and stone processing enterprises.
-
Washbasin countertop
-
A horse-bellied dining table
-

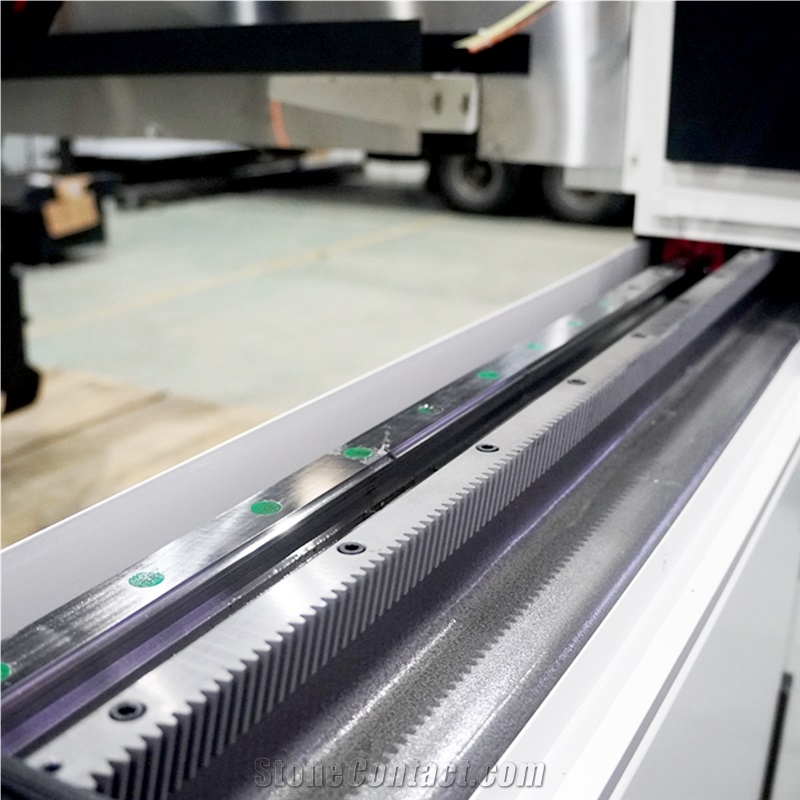

guide rail and rack
-
-
-
-
-
-
-
spindle
-

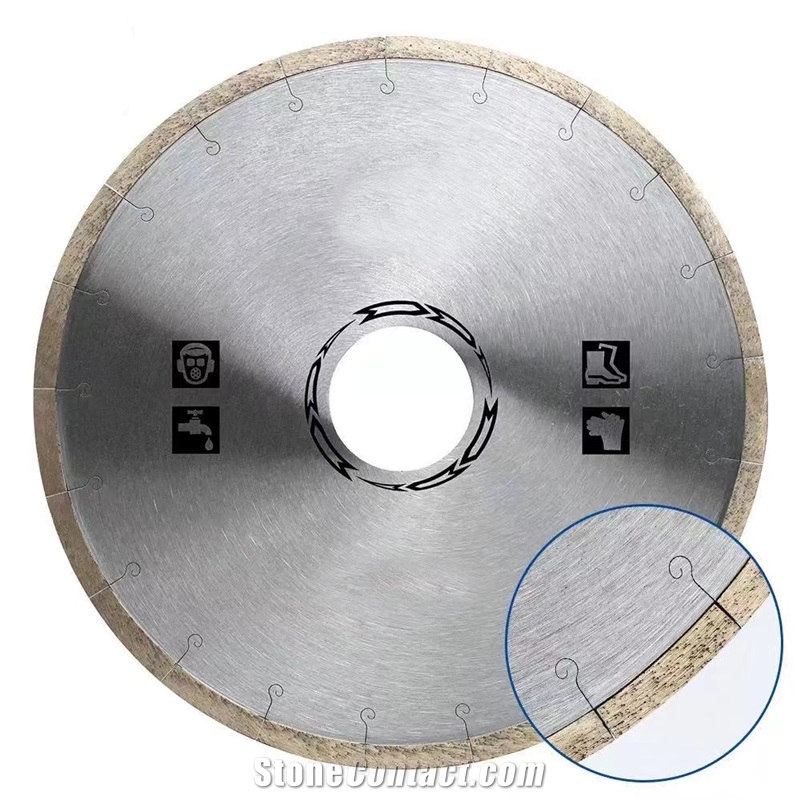

blade
