SXA-100L Automatic Gantry Calibrating Machine
FOB Price:$13500-14300
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesCalibrating Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
WITHIN 30 DAYS AFTER RECEIVING THE DEPOSITS
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Remote troubleshooting
Supplier
Eatablished :Nov 29,1990
Main Product:
Stone Cutting Machine, Stone Polishing Machine, Stone Drilling Machine, Stone Calibrating Machine, Stone Chamfering Machine, Stone Profiling Cutting Machine|
Machinery Function Features

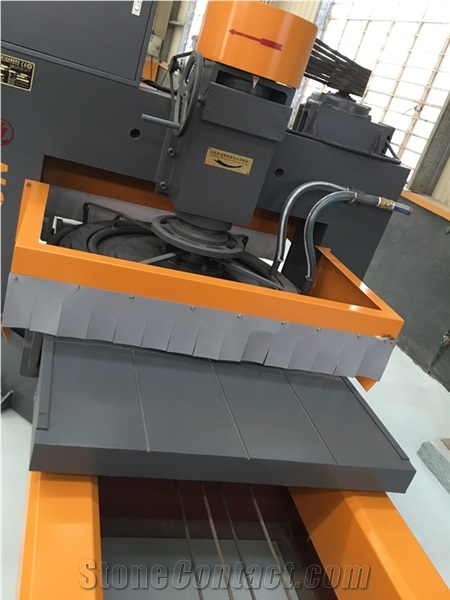

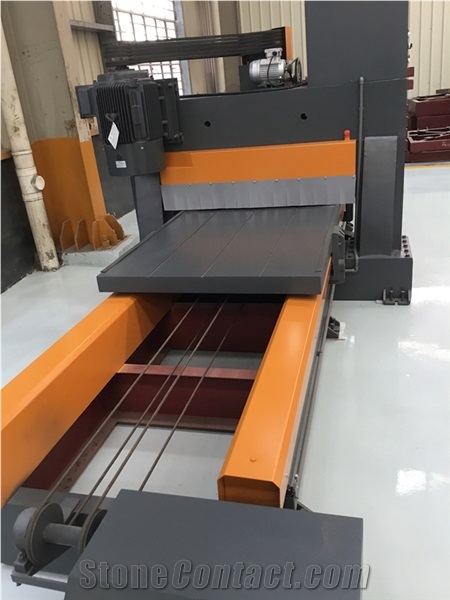

SXA-100L Automatic Gantry Calibrating Machine adopts gantry type joint structure, using good steel. The cutter head can rise and fall flexibly. It is featured by automatic feed, stable move, finishing precision and easy operation. In addition, this machine uses Japanese Mitsubishi transducer to make frequency control. Since this machine has good working performance, it's very useful at thicknessing the slabs.
Technical Data
Parameters |
Unit |
SXA-100L |
SXA-100L |
SXA-100L |
Grinding head lifting stroke |
mm |
100 |
100 |
|
Maximum workable length |
mm |
3000*1100 |
3000*1250 |
|
Approx. Weight |
Kg |
3400 |
4100 |
|
Main motor power |
kw |
18.5 |
22 |
|
Water consumption |
mm |
7.2 |
7.2 |
|
Machine overall length |
mm |
6700 |
7400 |
|
Machine overall height |
mm |
2050 |
2150 |
|
Diameter of calibrating head |
mm |
1080 |
1350 |
|
Machine overall width |
mm |
2200 |
2350 |
Processed Stone Photos
Components
-

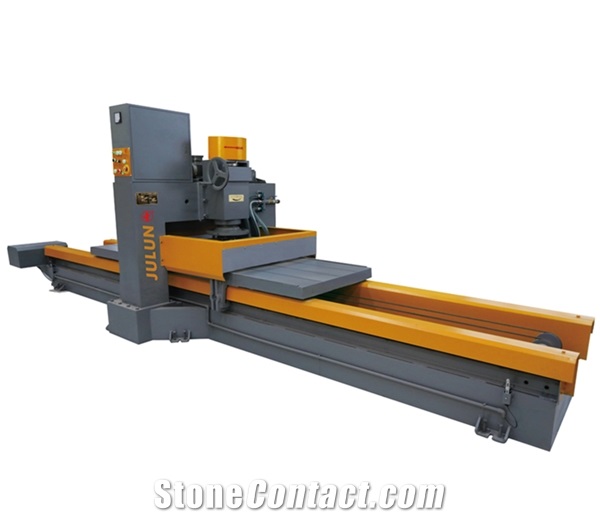

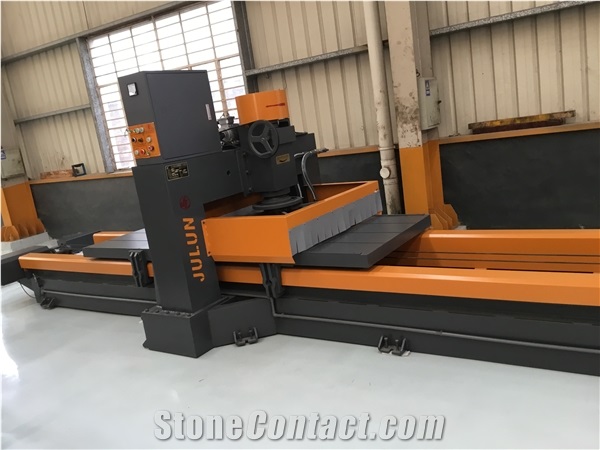

main machine
Consumables
-

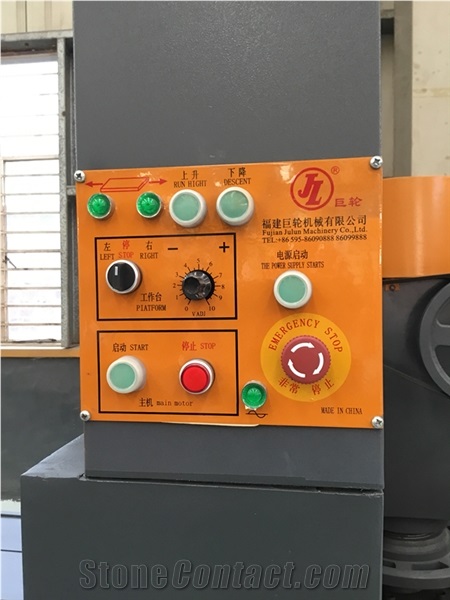

button
